Don-Jo SHF-45 Hinge Filler Plate 4-1/2" x 1-1/2" Steel Commercial Door Trim

Don-Jo SHF-45 Hinge Filler Plate 4-1/2" x 1-1/2" Steel Commercial Door Trim

(No reviews yet) Write a Review

Model: DON-SHF-45-PC
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4.66
$3.98
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo SHF-45 Hinge Filler Plate 4-1/2" x 1-1/2" Steel Commercial Door Trim

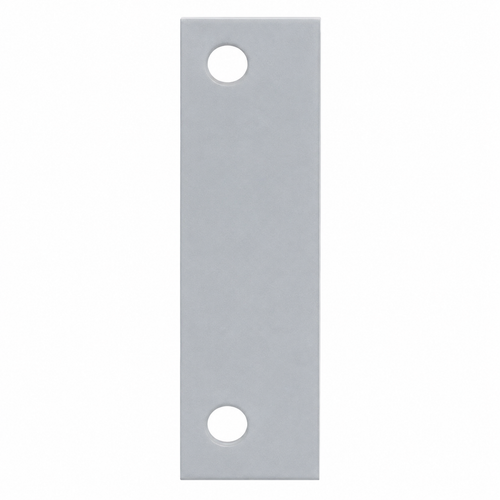

The Don-Jo SHF-45 Hinge Filler Plate is a commercial-grade steel door trim accessory designed to cover unused or mismatched hinge cutouts on door frames and doors. Measuring 4-1/2" in length and 1-1/2" in width, this filler plate is constructed from heavy-duty 10-gauge (.134) steel, delivering the structural integrity and durability required for demanding commercial applications. Ideal for door renovation, replacement, or retrofit projects where existing hinge mortises must be concealed for a clean, professional finish.

Key Features

  • Precise Dimensions: Measures 4-1/2" in length and 1-1/2" in width, engineered to cover standard hinge cutouts cleanly and accurately.
  • Heavy-Gauge Steel Construction: Fabricated from 10-gauge (.134) steel for exceptional strength and long-term durability in high-traffic commercial environments.
  • Commercial-Grade Quality: Designed and rated for commercial applications, ensuring reliable performance in demanding door hardware installations.
  • Door Trim Compatibility: Functions as part of the Door Trim and Accessories product group, suitable for use in filler plate, lock adapter, and wrap-around applications.
  • Convenient Shelf Pack: Available in a shelf pack of 10, making it practical for contractors, locksmiths, and facility managers handling multiple installations.
  • Clean Aesthetic Finish: Provides a neat, professional appearance by concealing unused or legacy hinge mortises on doors and frames during renovation or replacement projects.

Technical Specifications

  • Subcategory: Filler Plates
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings Undergoing Door Replacement or Renovation
  • Educational Facilities Retrofitting Existing Door Frames
  • Healthcare Institutions Upgrading Door Hardware
  • Retail Establishments Concealing Legacy Hinge Mortises
  • Industrial and Warehouse Facilities Maintaining Door Aesthetics
  • Multi-Tenant Residential Properties with Commercial-Grade Door Requirements
  • Government and Municipal Buildings During Door Hardware Upgrades

Why Don-Jo SHF-45?

Don-Jo SHF-45 Hinge Filler Plates deliver professional-grade reliability through heavy-duty 10-gauge (.134) steel construction, ensuring lasting performance in commercial door hardware applications. Engineered for contractors and facility professionals who demand precision fit and durable materials, the SHF-45 provides a dependable solution for concealing hinge cutouts with a clean, finished appearance.

Manufacturer Resources

DON-JO Hinges

Product Specs

Subcategory:
Filler Plates
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Hinge Filler Plate
Commercial/Residential:
Commercial
Product Model:
SHF 45
Product Category:
Door Trim and Accessories
Product Substrate:
Steel
Department:
Door Hardware

Don-Jo DON-SHF-45-PC – Frequently Asked Questions

1) Is a hinge filler plate strong enough to use where the old hinge was, or is it just cosmetic?
The SHF-45 is a cover, not a structural repair. It is fabricated from 10-gauge (.134) steel, which is heavy enough that it won't oil-can or dent when a cart clips the frame, but it carries no door weight. It hides an abandoned or mismatched hinge cutout so the frame reads clean. If the mortise is torn out and the hinge is going back in the same spot, you need a reinforcement, not a filler.
2) I'm rehanging doors and moving the hinge locations up the frame. What covers the old cutouts?
A hinge filler plate like the Don-Jo SHF-45 is the standard fix. When new hinge positions don't land on the old ones, the abandoned pockets get a 4-1/2 x 1-1/2 inch steel plate over them, prime coated if the frame is being repainted. Order one per abandoned mortise, and count both jamb and door edge if you moved the hinges on a wood or hollow metal door where both sides are cut.
3) What finishes does the Don-Jo SHF-45 hinge filler plate come in?
Four: brass plated (BP), chrome plated (CP), duronodic brown coated (DU), and prime coated (PC). Prime coated is the one to pick if the frame is getting painted, since it takes topcoat directly and disappears into the frame color. BP and CP are the choices when the plate stays exposed next to bright brass or chrome hinges and you want it to read as intentional trim rather than a patch.
4) Can I use the SHF-45 on the door itself, or only on the frame?
Both. The SHF-45 covers unused or mismatched hinge cutouts on door frames and on doors, so it works whether the leftover mortise is in the hollow metal jamb or in the door edge. Same plate either way, since a full mortise butt cuts a matching pocket on both sides of the opening.
5) Does the SHF-45 have handing, or does one plate work on left and right hand doors?
No handing. The SHF-45 is a flat 4-1/2 x 1-1/2 inch steel rectangle, so the same plate goes on a left hand or right hand opening and on either jamb. Order by count of mortises to cover, not by door swing.
6) How does the Don-Jo SHF-45 get sold, single or in a pack?
The SHF-45 comes in a shelf pack of 10. That suits the way these actually get used, since a door renovation rarely produces one orphan mortise, and a maintenance shop replacing hinges across a floor of openings will go through a box.
7) Is the SHF-45 filler plate rated for commercial doors or is it a residential part?
Commercial. The SHF-45 is a steel plate specified for commercial door hardware work, and the 10-gauge (.134) material is what carries it through high-traffic openings in schools, hospitals, offices and warehouses without deforming. It's equally usable on a residential door, it is just built heavier than a residential opening requires.
