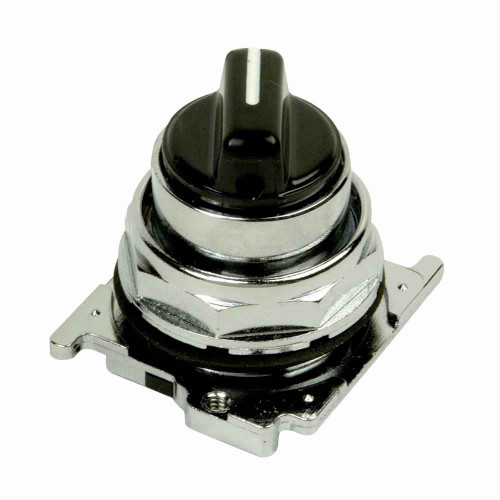

Eaton Pushbutton Heavy-Duty 30.5mm Two-Position Knob Black Actuator NEMA 3R 4X 12 13 Series 10250T

Eaton Heavy-Duty Pushbutton Control Station

Professional Industrial Control Equipment

The Eaton 10250T Heavy-Duty Pushbutton delivers exceptional industrial control performance for demanding electrical applications. This 30.5mm two-position knob control station provides reliable operator interface control designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Heavy-Duty Construction

• 30.5mm Heavy-Duty Design - Robust construction for industrial applications with reliable operation in demanding environments
• Two-Position Knob Operation - Precise OFF/ON HAND/AUTO RUN/JOG control with positive positioning for operator safety
• Black Actuator Knob - Professional appearance with durable actuator material for long-lasting performance
• 1NO-1NC Contact Configuration - Versatile contact arrangement providing both normally open and normally closed contacts for flexible control applications

Environmental Protection

• Multiple NEMA Ratings - NEMA 3, 3R, 4, 4X, 12, and 13 ratings provide comprehensive environmental protection for indoor and outdoor applications
• Non-Illuminated Design - Clean, professional appearance suitable for control panels and operator stations
• Compact Dimensions - 7" x 6" x 3" footprint optimizes panel space while maintaining heavy-duty performance

Technical Specifications

Series: 10250T, Actuator Type: Knob, Actuator Color: Black, Contact Configuration: 1NO-1NC, Number of Positions: 2, NEMA Ratings: 3, 3R, 4, 4X, 12, 13, Illumination: Non-illuminated, Dimensions: 7" L x 6" W x 3" H, Weight: 0.43 lb, Legend: OFF/ON HAND/AUTO RUN/JOG, Certifications: UL Listed, Compliances: CE Marked

Installation & Usage

1. Verify proper NEMA rating selection for environmental conditions and application requirements
2. Mount control station securely in control panel or enclosure using appropriate mounting hardware
3. Connect wiring to 1NO-1NC contacts according to control circuit requirements and electrical codes
4. Test two-position knob operation to ensure proper OFF/ON HAND/AUTO RUN/JOG functionality
5. Verify contact operation and electrical continuity before energizing control circuits
6. Install included legend plates for clear operator identification of control functions

Professional Applications

Ideal for:

• Industrial Control Panels - Motor control centers, machine control stations, and process control applications
• Manufacturing Equipment - Production machinery, conveyor systems, and automated equipment control
• HVAC Systems - Fan control, pump stations, and building automation applications
• Water Treatment - Pump control, valve operation, and process control in water and wastewater facilities
• Material Handling - Crane controls, hoist operations, and conveyor system management
• Commercial Buildings - Lighting control, equipment operation, and facility management systems
• Outdoor Applications - Weather-resistant control for outdoor equipment and environmental systems
• Hazardous Locations - NEMA 4X rating suitable for corrosive and wash-down environments

Heavy-Duty Performance Advantage

The Eaton 10250T series represents decades of industrial control innovation, featuring heavy-duty construction that withstands demanding industrial environments. The multiple NEMA ratings ensure reliable operation in diverse conditions, from indoor control rooms to outdoor installations, while the precise two-position knob operation provides positive control feedback for operator confidence and safety.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical control and automation delivers unmatched reliability for industrial applications. With UL listing and CE marking, this heavy-duty pushbutton meets rigorous safety standards while providing the dependable performance that electricians, electrical contractors, and facility professionals trust worldwide. The comprehensive NEMA rating coverage and robust construction ensure long-term reliability in the most demanding electrical control applications.
