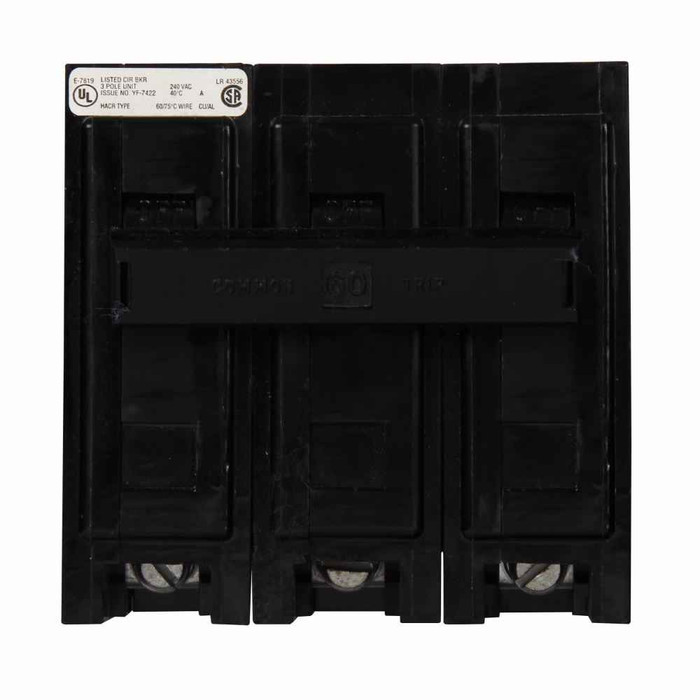

Eaton Thermal Magnetic Circuit Breaker 60A Three-Pole 240V 10kAIC BAB Quicklag Industrial

(No reviews yet) Write a Review

Model: BAB3060H

In Stock (leaves warehouse same day if ordered before 3pm ET)

$301.40
$272.63
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

Eaton BAB Thermal Magnetic Circuit Breaker

Professional Industrial Electrical Protection Equipment

The Eaton BAB Thermal Magnetic Circuit Breaker delivers exceptional electrical power management and control performance for industrial distribution panel applications. This 60A three-pole circuit breaker provides reliable electrical protection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance Excellence

  • 60 Ampere Current Rating - Provides robust current handling capacity for medium-duty industrial electrical loads and three-phase power distribution systems
  • 10 kAIC Interrupt Rating - Delivers reliable fault current interruption capability for industrial electrical protection and system safety
  • Three-Pole Configuration - Ensures complete three-phase electrical protection with simultaneous tripping across all phases for balanced load protection
  • 240V Voltage Rating - Optimized for standard industrial voltage applications in three-phase four-wire distribution systems

Industrial Protection & Installation

  • Quicklag Industrial Thermal-Magnetic Technology - Advanced trip mechanism provides precise overcurrent protection with thermal overload and magnetic short-circuit protection
  • Bolt-On Mounting Design - Secure mechanical connection ensures reliable installation in distribution panels with positive electrical contact
  • BAB Series Construction - Professional-grade circuit breaker designed specifically for industrial distribution panel applications

Technical Specifications

Amperage Rating: 60A, Voltage Rating: 240V, Number of Poles: Three-pole, Interrupt Rating: 10 kAIC, Circuit Breaker Type: BAB, Trip Type: Non-Interchangeable, Special Features: Bolt-on mounting, Used With: Distribution panels 240V (Three-phase, four-wire maximum), Number of Wires: 4, Certifications: UL Listed, Catalog Notes: HACR rated, Product Dimensions: 4.7" H x 3.2" W x 3.8" D, Product Weight: 0.95 lb

Installation & Usage

  1. Verify power is completely disconnected and locked out at the main electrical service before beginning installation
  2. Confirm the distribution panel is rated for 240V three-phase four-wire operation and compatible with BAB series circuit breakers
  3. Position the circuit breaker in the designated three-pole space ensuring proper alignment with the panel bus bars
  4. Secure the bolt-on mounting mechanism according to manufacturer specifications for positive mechanical and electrical connection
  5. Connect the load conductors to the circuit breaker terminals using proper torque specifications and wire management practices
  6. Test the installation with proper electrical testing equipment before energizing the circuit and placing into service

Professional Applications

Ideal for:

  • Industrial Distribution Panels - Three-phase four-wire electrical distribution systems requiring 60A overcurrent protection
  • Commercial Motor Control Centers - Protection for industrial motors and equipment in manufacturing and processing facilities
  • Manufacturing Facility Power Distribution - Electrical protection for production equipment and industrial machinery systems
  • Industrial Electrical Switchgear - Component protection in larger electrical distribution and control assemblies
  • Three-Phase Load Centers - Overcurrent protection for balanced three-phase electrical loads in industrial applications
  • HVAC Equipment Protection - Circuit protection for industrial heating, ventilation, and air conditioning systems
  • Process Control Systems - Electrical protection for automated industrial control and monitoring equipment
  • Power Distribution Upgrades - Replacement and modernization of existing industrial electrical protection systems

Quicklag Thermal-Magnetic Advantage

The Quicklag industrial thermal-magnetic technology combines the benefits of thermal overload protection for sustained overcurrent conditions with magnetic protection for short-circuit faults. This dual-protection mechanism ensures reliable electrical system protection while minimizing nuisance tripping, making it ideal for industrial applications where continuous operation is critical for productivity and safety.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers the reliability and performance that electrical professionals demand. Our UL Listed circuit breakers meet the highest safety standards and are trusted by electricians, electrical contractors, and facility professionals worldwide for their proven performance in industrial electrical protection applications. Eaton's commitment to quality construction and dependable electrical performance ensures long-term reliability in demanding industrial environments.



EAT-BAB3060H - spec sheet

Manufacturer Resources

Product Specs

Amperage Rating:
60 A
Catalog Notes:
HACR rated
Certifications:
UL Listed
Circuit Breaker Type:
BAB
Interrupt Rating:
10 kAIC
Number Of Poles:
Three-pole
Number Of Wires:
4
Product Height:
4.7 in
Product Length Depth:
3.8 in
Product Type:
Thermal Magnetic Circuit Breaker
Product Weight:
.95 lb
Product Width:
3.2 in
Special Features:
Bolt-on mounting
Trip Type:
Non-Interchangeable
Used With:
Distribution panels 240 V (Three-phase, four-wire maximum)
Voltage Rating:
240 V - 240 V
Product Group:
Electrical
Product Subgroup:
Circuit Breaker
