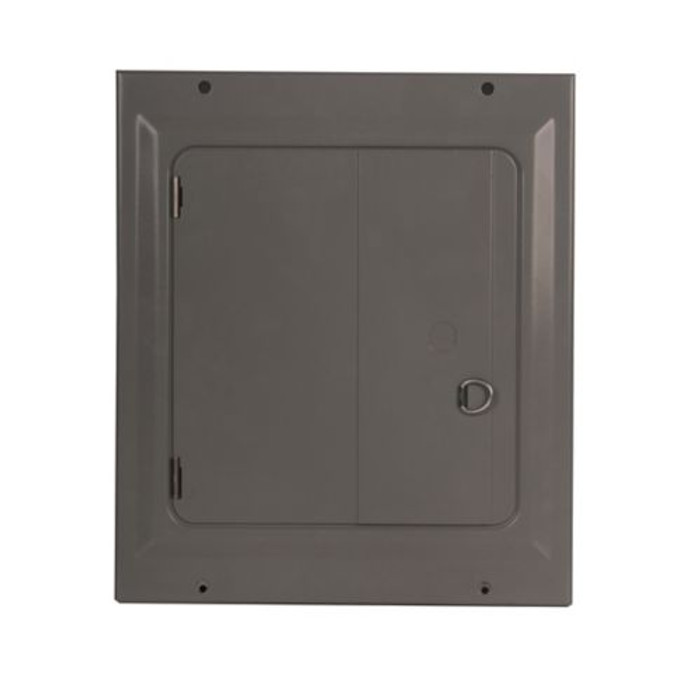

Eaton Main Lug Loadcenter 125A 16-Circuit Single-Phase 120/240V BR Series NEMA 1 Surface Mount

Eaton Main Lug Loadcenter 125A 16-Circuit Single-Phase 120/240V BR Series NEMA 1 Surface Mount

Professional Electrical Distribution Panel with Dual Ground System

The Eaton Main Lug Loadcenter delivers exceptional electrical power distribution performance for residential and commercial applications. This 125A single-phase loadcenter provides reliable electrical distribution designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Distribution Performance

• 125A Main Lug Design - Provides robust electrical distribution capacity with reliable main lug connections for professional electrical installations
• 16-Circuit Configuration - Accommodates up to 16 individual circuits with 8 spaces for flexible electrical system expansion and organization
• Single-Phase 120/240V Rating - Optimized for standard residential and light commercial electrical distribution systems with dual voltage capability
• 10 kAIC Interrupt Rating - Delivers reliable short-circuit protection performance for safe electrical operation in typical installation environments

Professional Installation & Protection

• BR Series Compatibility - Designed for Type BR 1-inch circuit breakers providing standardized electrical protection and easy maintenance
• Dual Ground System - Features dual grounds with current design for enhanced electrical safety and code compliance in professional installations
• NEMA 1 Metallic Enclosure - Provides durable indoor protection with professional-grade metallic construction for long-term reliability

Technical Specifications

Amperage Rating: 125A, Voltage Rating: 120/240V, Phase: Single-phase, Number of Circuits: 16, Number of Spaces: 8, Interrupt Rating: 10 kAIC, Enclosure: NEMA 1 Metallic, Bus Material: Aluminum, Wire Size: #14-1 AWG Cu/Al, Mounting: Surface Mount, Series: BR, Special Features: Dual grounds current design, Dimensions: 13" H x 11" W x 3.56" D, Weight: 11.6 lb, Certifications: UL 67

Installation & Usage

1. Verify electrical service disconnect and ensure proper safety procedures before beginning installation work
2. Mount loadcenter securely to wall surface using appropriate fasteners for the installation environment
3. Connect main service conductors to main lug terminals following NEC requirements and local electrical codes
4. Install Type BR circuit breakers in designated positions according to electrical load requirements
5. Connect branch circuit wiring to circuit breakers using proper wire sizes and termination methods
6. Verify proper grounding connections using dual ground bar system for enhanced electrical safety

Professional Applications

Ideal for:

• Residential Electrical Systems - Main electrical distribution for homes, apartments, and residential buildings requiring reliable power distribution
• Light Commercial Applications - Small commercial buildings, offices, and retail spaces needing professional electrical distribution solutions
• Electrical Panel Upgrades - Replacement and upgrade projects for existing electrical distribution systems requiring modern safety features
• New Construction Projects - Primary electrical distribution for new residential and light commercial construction applications
• Electrical Service Expansions - Adding electrical capacity and circuit distribution for building additions and renovations
• Professional Electrical Installations - Contractor and electrician projects requiring UL-listed electrical distribution equipment
• Code Compliance Applications - Installations requiring NEC-compliant electrical distribution with proper grounding and safety features
• Maintenance and Service Work - Electrical service calls and maintenance projects requiring reliable replacement electrical distribution panels

BR Series Advantage

The BR Series design provides standardized circuit breaker compatibility with Type BR 1-inch breakers, ensuring consistent electrical protection performance and simplified maintenance. The aluminum bus construction delivers reliable electrical conductivity while the dual ground system enhances electrical safety and code compliance for professional installations.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation ensures this loadcenter meets the highest standards for electrical safety and reliability. With UL 67 certification and trusted performance, Eaton electrical distribution equipment is the preferred choice of electricians, electrical contractors, and facility professionals worldwide for dependable power distribution solutions.
