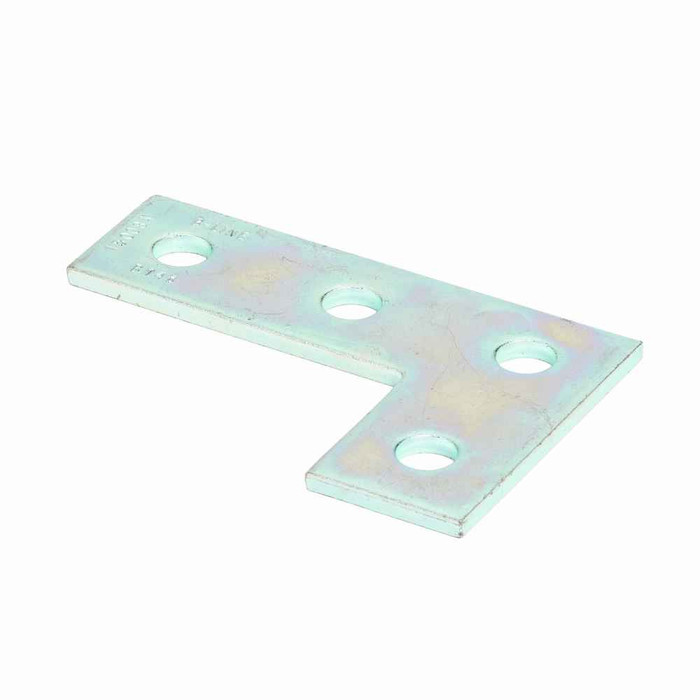

Eaton B-Line Series Corner Plate Steel Flat Four-Hole 5.37" x 3.5" x 0.22" Electro-Plated

Eaton B-Line Series Corner Plate Steel Flat Four-Hole 5.37" x 3.5" x 0.22" Electro-Plated

Professional Electrical Strut System Fitting

The Eaton B-Line Series Corner Plate delivers exceptional structural support and electrical system organization for professional strut channel installations. This steel flat four-hole corner plate provides reliable connection and mounting solutions designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced engineering that professionals trust from the global leader in intelligent power management and electrical support systems.

Professional Features & Benefits

Structural Performance

• Steel Construction - Provides exceptional strength and durability for demanding electrical installation environments with reliable load-bearing capacity
• Flat Four-Hole Design - Enables secure multi-directional connections for versatile strut system configurations and professional electrical support applications
• Compact Profile - 0.22" height design minimizes space requirements while maintaining structural integrity for tight installation spaces
• Pre-Assembled Configuration - Ready-to-install design reduces installation time and ensures consistent professional results

Installation & Protection

• Electro-Plated Finish - Superior corrosion resistance and professional appearance for long-term electrical system reliability
• Precision Dimensions - 5.37" length x 3.5" width provides exact fit compatibility with B-Line strut channel systems
• Lightweight Design - 0.75 lb weight facilitates easy handling and installation without compromising structural performance

Technical Specifications

Product Type: B-Line Series Corner Plate, Material: Steel, Finish: Electro-Plated, Dimensions: 5.37" Length x 3.5" Width x 0.22" Height, Weight: 0.75 lb, Configuration: Flat Four-Hole Corner Plate, Assembly: Pre-Assembled, Product Group: Electrical, Certifications: Not Applicable

Installation & Usage

1. Verify strut channel alignment and positioning for corner connection requirements
2. Position corner plate at intersection point ensuring proper alignment with strut channels
3. Insert appropriate fasteners through four mounting holes for secure attachment
4. Tighten connections to specified torque requirements following B-Line installation guidelines
5. Verify structural integrity and proper load distribution across connection points
6. Complete electrical system installation following NEC requirements and local electrical codes

Professional Applications

Ideal for:

• Commercial Electrical Systems - Office buildings, retail facilities, and commercial installations requiring professional strut support systems
• Industrial Power Distribution - Manufacturing facilities, processing plants, and industrial electrical infrastructure support applications
• Data Center Infrastructure - Server rooms, telecommunications facilities, and critical power system support installations
• Healthcare Facilities - Hospitals, medical centers, and healthcare electrical system support and organization
• Educational Institutions - Schools, universities, and educational facility electrical infrastructure support systems
• Municipal Projects - Government buildings, public facilities, and municipal electrical system installations
• Utility Applications - Power generation facilities, substations, and utility electrical support infrastructure
• Transportation Systems - Airports, transit facilities, and transportation electrical system support applications

B-Line Engineering Advantage

Eaton's B-Line Series represents decades of structural engineering excellence specifically designed for electrical system support applications. The precision-manufactured steel construction with electro-plated finish ensures reliable performance in demanding electrical environments, while the four-hole corner plate design provides versatile connection options for complex strut system configurations.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation extends to comprehensive support system solutions that electrical professionals trust worldwide. Our B-Line Series strut fittings and accessories deliver the structural reliability, corrosion resistance, and precision engineering that electricians, electrical contractors, and facility professionals depend on for critical electrical infrastructure support, backed by Eaton's commitment to electrical safety and system reliability.
