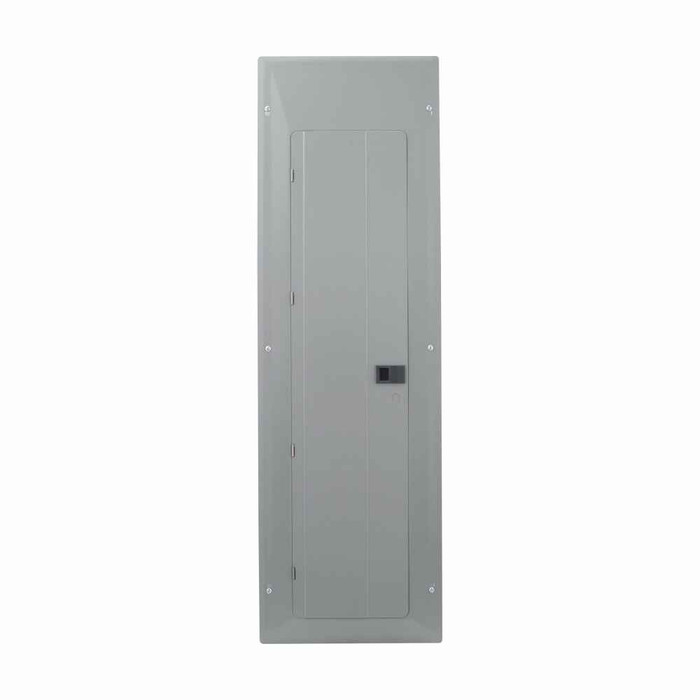

Eaton BR Convertible Loadcenter 200A 60-Space 120-Circuit Single-Phase 120/240V NEMA 1 25kAIC
Professional Electrical Distribution Panel with Convertible Design
The Eaton BR Convertible Loadcenter delivers exceptional electrical power distribution performance for residential and commercial applications. This 200A single-phase loadcenter provides reliable electrical distribution with 60 spaces and 120 circuits designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.
Professional Features & Benefits
Electrical Distribution Performance
- 200A Main Capacity - High-capacity electrical distribution with 25kAIC interrupt rating for reliable circuit protection and power management
- 60 Spaces with 120 Circuits - Extensive circuit capacity accommodating single-pole Type BR 1-inch breakers for comprehensive electrical distribution
- Single-Phase 120/240V Configuration - Standard residential and light commercial voltage rating with two hots, neutral and ground wire configuration
- Convertible Design with Lugs Installed - Factory-installed lugs provide flexible installation options for main breaker or main lug configurations
Professional Installation & Protection
- NEMA 1 Metallic Enclosure - Durable metallic construction with included cover for indoor electrical installations and environmental protection
- Aluminum Bus Material - High-conductivity aluminum bus construction supporting #6-1/0 AWG Cu/Al wire connections for reliable power distribution
- Combination Mounting System - Versatile mounting configuration for surface or flush installation in residential and commercial electrical systems
Technical Specifications
Amperage Rating: 200A, Voltage Rating: 120/240V Single-Phase, Interrupt Rating: 25kAIC, Number of Spaces: 60, Number of Circuits: 120, Pole Configuration: Single-pole, Wire Size: #6-1/0 AWG Cu/Al, Bus Material: Aluminum, Enclosure: NEMA 1 Metallic, Main Circuit Breaker: CSR, Mounting: Combination, Special Features: Convertible with lugs installed, Cover: Included, Dimensions: 48" L x 14.31" W x 3.88" H, Weight: 41 lbs, Certifications: UL 67, Compatible Breakers: Type BR 1-inch breakers
Installation & Usage
- Mount the loadcenter securely using combination mounting system in appropriate NEMA 1 indoor location
- Connect main service conductors to factory-installed lugs following NEC requirements for 200A service
- Install appropriate Type BR 1-inch circuit breakers in designated spaces according to electrical load requirements
- Connect branch circuit wiring to circuit breakers using proper wire sizes and termination methods
- Verify proper grounding and bonding connections for neutral and equipment ground conductors
- Complete electrical testing and inspection procedures before energizing the electrical distribution system
Professional Applications
Ideal for:
- Residential Electrical Systems - Main electrical distribution panels for single-family homes and residential electrical service upgrades
- Commercial Light Duty Applications - Small commercial buildings, retail spaces, and office electrical distribution systems
- Electrical Service Upgrades - Replacement of older electrical panels with modern 200A capacity and expanded circuit availability
- New Construction Projects - Primary electrical distribution for residential construction and light commercial building projects
- Multi-Family Housing - Individual unit electrical distribution in apartments, condominiums, and townhouse developments
- Workshop and Garage Applications - High-capacity electrical distribution for workshops, garages, and outbuilding electrical systems
- Electrical Contractor Installations - Professional electrical panel installations requiring reliable 200A distribution capacity
- Facility Electrical Maintenance - Electrical system modernization and capacity expansion for existing building electrical infrastructure
Convertible Design Advantage
The convertible design with factory-installed lugs provides exceptional installation flexibility, allowing electricians to configure the loadcenter as either main breaker or main lug applications. This versatility reduces inventory requirements while providing professional installation options for various electrical service configurations and local code requirements.
Why Choose Eaton Quality?
Eaton's century-plus experience in electrical power management innovation ensures this BR series loadcenter delivers the reliability and performance that electrical professionals demand. With UL 67 certification, proven 25kAIC interrupt rating, and compatibility with the comprehensive Type BR breaker family, this loadcenter represents Eaton's commitment to electrical safety and dependable power distribution trusted by electricians, electrical contractors, and facility professionals worldwide.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200 A
- Box Size:
- X10
- Bus Material:
- Aluminum
- Certifications:
- UL 67
- Cover:
- Cover included
- Enclosure:
- NEMA 1
- Enclosure Material:
- Metallic
- Interrupt Rating:
- 25 kAIC
- Main Circuit Breaker:
- CSR
- Mounting:
- Combination
- Number Of Circuits:
- 120
- Number Of Poles:
- Single-pole
- Number Of Spaces:
- 60
- Number Of Wires:
- Two hots, neutral and ground
- Phase:
- Single-phase
- Product Height:
- 3.88 in
- Product Length Depth:
- 48 in
- Product Type:
- Convertible Loadcenter
- Product Weight:
- 41 lb
- Product Width:
- 14.31 in
- Special Features:
- Convertible, lugs installed
- Used With:
- Type BR 1-inch breakers
- Voltage Rating:
- 120/240 V
- Wire Size:
- #6-1/0 AWG Cu/Al
- Product Group:
- Electrical
