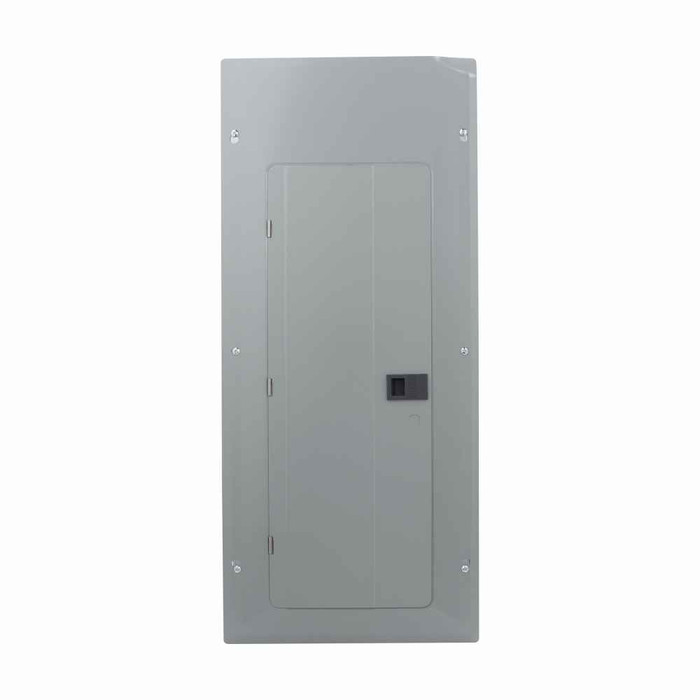

Eaton BR Main Breaker Loadcenter 200A 120/240V 60-Circuit 30-Space
Professional Electrical Distribution Panel with Plug-On Neutral Technology
The Eaton BR Main Breaker Loadcenter delivers exceptional electrical power distribution performance for residential and commercial applications. This 200A 120/240V main breaker loadcenter provides reliable electrical distribution with 60 circuits and 30 spaces, designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced plug-on neutral technology that professionals trust from the global leader in intelligent power management.
Professional Features & Benefits
Electrical Performance & Capacity
- 200A Main Circuit Breaker (CSR2200) - High-capacity electrical distribution with reliable overcurrent protection for demanding residential and commercial electrical systems
- 60 Circuit Capacity with 30 Spaces - Expandable electrical distribution allowing for future circuit additions and comprehensive electrical system management
- 25 kAIC Interrupt Rating - Superior fault current interrupting capability providing enhanced electrical safety and system protection
- 120/240V Single-Phase Design - Standard residential and light commercial voltage configuration for versatile electrical applications
Advanced Installation Technology
- Plug-On Neutral Main Loadcenter - Innovative connection technology reducing installation time and improving electrical connections for professional electricians
- Ground Bar with BREQS125 Hold-Down Screw - Integrated grounding system with secure mounting hardware ensuring proper electrical grounding and code compliance
- Aluminum Bus Material - Lightweight yet durable electrical bus construction providing excellent conductivity and corrosion resistance
Professional Construction & Protection
- NEMA 1 Metallic Enclosure - Robust indoor electrical enclosure providing mechanical protection and professional appearance for electrical installations
- Cover Included Design - Complete loadcenter package with integrated cover for immediate installation and electrical safety compliance
Technical Specifications
Amperage Rating: 200A, Voltage Rating: 120/240V, Interrupt Rating: 25 kAIC, Number of Circuits: 60, Number of Spaces: 30, Phase: Single-phase, Number of Poles: Single-pole, Main Circuit Breaker: CSR2200, Bus Material: Aluminum, Enclosure: NEMA 1 Metallic, Mounting: Combination, Special Features: Ground bar with BREQS125 hold-down screw and plug-on neutral technology, Used With: Type BR 1-inch breakers, Certifications: UL 50, Dimensions: 34.12" L x 14.31" W x 3.88" H, Weight: 31.1 lbs
Installation & Usage
- Mount the loadcenter securely in approved electrical location following local electrical codes and NEMA 1 indoor requirements
- Connect main electrical service conductors to the 200A main circuit breaker terminals ensuring proper torque specifications
- Install ground bar connection using included BREQS125 hold-down screw for proper electrical grounding system
- Utilize plug-on neutral technology for efficient Type BR circuit breaker installation and neutral connections
- Install Type BR 1-inch circuit breakers in available 30 spaces as needed for electrical distribution requirements
- Verify all electrical connections and test main breaker operation before energizing the electrical system
Professional Applications
Ideal for:
- Residential Electrical Systems - Main electrical distribution for homes, apartments, and residential buildings requiring 200A service capacity
- Commercial Light Duty Applications - Small commercial buildings, retail spaces, and office buildings with moderate electrical loads
- Electrical Panel Upgrades - Service upgrades from lower amperage panels to modern 200A electrical distribution systems
- New Construction Projects - Primary electrical distribution for new residential and light commercial construction projects
- Electrical Renovation Work - Panel replacement and electrical system modernization for improved capacity and safety
- Multi-Unit Housing - Individual unit electrical distribution in condominiums, townhomes, and apartment complexes
- Workshop and Garage Applications - High-capacity electrical distribution for workshops, garages, and outbuildings with substantial electrical needs
- Backup Power Integration - Main electrical distribution compatible with generator transfer switch systems and backup power solutions
Plug-On Neutral Technology Advantage
Eaton's innovative plug-on neutral technology revolutionizes electrical installation by providing secure, reliable neutral connections without additional pigtails or wire nuts. This advanced design reduces installation time, improves connection reliability, and ensures consistent electrical performance while maintaining the highest safety standards for professional electrical installations.
Why Choose Eaton Quality?
With over a century of electrical power management innovation, Eaton leads the industry in intelligent power solutions and electrical safety technology. This BR series main breaker loadcenter represents Eaton's commitment to professional-grade electrical equipment, featuring UL 50 certification, advanced plug-on neutral technology, and the reliable performance trusted by electricians, electrical contractors, and facility professionals worldwide for critical electrical distribution applications.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200 A
- Box Size:
- X6
- Bus Material:
- Aluminum
- Certifications:
- UL 50
- Cover:
- Cover included
- Enclosure:
- NEMA 1
- Enclosure Material:
- Metallic
- Interrupt Rating:
- 25 kAIC
- Main Circuit Breaker:
- CSR2200
- Mounting:
- Combination
- Number Of Circuits:
- 60
- Number Of Poles:
- Single-pole
- Number Of Spaces:
- 30
- Number Of Wires:
- Two hots, neutral and ground
- Phase:
- Single-phase
- Product Height:
- 3.88 in
- Product Length Depth:
- 34.12 in
- Product Type:
- Main Breaker
- Product Weight:
- 31.1 lb
- Product Width:
- 14.31 in
- Special Features:
- Ground bar, includes BREQS125 hold-down screw
- Used With:
- Type BR 1-inch breakers
- Voltage Rating:
- 120/240 V
- Product Group:
- Electrical
