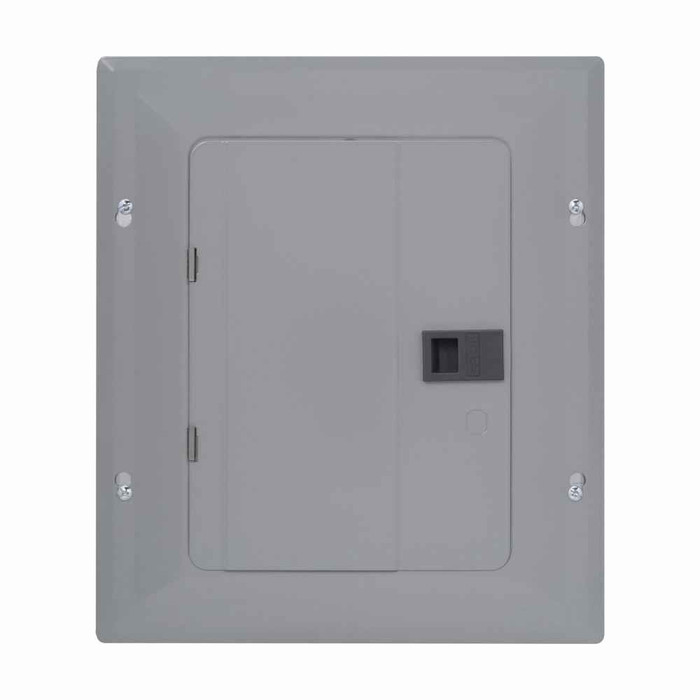

Eaton Main Breaker Loadcenter 100A Single-Phase 24-Circuit 12-Space BR Series Plug-On Neutral NEMA 1

Eaton Main Breaker Loadcenter 100A Single-Phase 24-Circuit 12-Space BR Series Plug-On Neutral NEMA 1

Professional Electrical Distribution Panel with Plug-On Neutral Technology

The Eaton Main Breaker Loadcenter delivers exceptional electrical power distribution performance for residential and light commercial applications. This 100A single-phase loadcenter with 24 circuits and 12 spaces provides reliable electrical distribution designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced plug-on neutral technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Distribution Performance

• 100A Main Circuit Breaker (BR2100) - Provides reliable overcurrent protection with 10kAIC interrupt rating for comprehensive electrical system protection
• 24-Circuit Capacity with 12 Spaces - Accommodates extensive branch circuit requirements while maintaining compact panel design for space-efficient installation
• Single-Phase 120/240V Rating - Delivers versatile voltage options for residential and light commercial electrical distribution systems
• Plug-On Neutral Technology - Simplifies AFCI and GFCI breaker installation with automatic neutral connection, reducing installation time and improving reliability

Professional Installation & Protection

• NEMA 1 Indoor Enclosure - Metallic construction provides durable protection for interior electrical installations with included cover
• Aluminum Bus Material - Lightweight yet durable bus construction ensures reliable electrical conductivity and long-term performance
• Wire Size Compatibility (#6-1/0 AWG Cu/Al) - Accommodates copper and aluminum conductors for flexible installation options and code compliance

Technical Specifications

Amperage Rating: 100A, Voltage Rating: 120/240V, Phase: Single-phase, Number of Circuits: 24, Number of Spaces: 12, Main Circuit Breaker: BR2100, Interrupt Rating: 10kAIC, Enclosure: NEMA 1, Enclosure Material: Metallic, Bus Material: Aluminum, Wire Size: #6-1/0 AWG Cu/Al, Number of Wires: Two hots, neutral and ground, Box Size: X1, Mounting: Combination, Used With: Type BR 1-inch breakers, Certifications: UL 50, Dimensions: 18.75" L x 14.31" W x 3.88" H, Weight: 18.5 lbs

Installation & Usage

1. Mount the loadcenter securely to wall or panel board location ensuring proper clearances per NEC requirements
2. Connect main service conductors to main breaker terminals, observing proper torque specifications and wire sizing
3. Install grounding and bonding connections according to local electrical codes and NEC standards
4. Insert Type BR circuit breakers into designated spaces, ensuring proper plug-on neutral connections for AFCI/GFCI breakers
5. Connect branch circuit conductors to breakers, utilizing the plug-on neutral feature for applicable circuits
6. Complete installation with proper labeling and circuit directory for professional identification and code compliance

Professional Applications

Ideal for:

• Residential Electrical Systems - Main electrical distribution for homes, apartments, and residential buildings requiring reliable power distribution
• Light Commercial Applications - Small office buildings, retail spaces, and commercial facilities needing professional electrical distribution
• Electrical Panel Upgrades - Replacement of older electrical panels with modern safety features and increased circuit capacity
• New Construction Projects - Primary electrical distribution for new residential and light commercial construction projects
• Electrical Service Upgrades - Upgrading electrical service capacity while maintaining compact installation footprint
• AFCI/GFCI Circuit Installation - Applications requiring arc fault and ground fault protection with simplified plug-on neutral installation
• Code Compliance Projects - Electrical installations requiring current NEC compliance and modern safety standards
• Professional Electrical Contracting - Reliable loadcenter solution for electrical contractors performing residential and light commercial work

Plug-On Neutral Technology Advantage

Eaton's innovative plug-on neutral technology revolutionizes AFCI and GFCI breaker installation by automatically connecting the neutral conductor when the breaker is installed. This advanced design eliminates the need for separate neutral pigtails, reduces installation time, improves connection reliability, and minimizes potential wiring errors, making it the preferred choice for professional electricians seeking efficient and reliable electrical protection solutions.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton stands as the global leader in intelligent power solutions. Our commitment to electrical safety, reliability, and professional performance is demonstrated through rigorous UL and CSA certifications, ensuring that every loadcenter meets the highest industry standards. Trusted by electricians, electrical contractors, and facility professionals worldwide, Eaton delivers the advanced technology, proven reliability, and professional quality that electrical professionals demand for critical power distribution applications.
