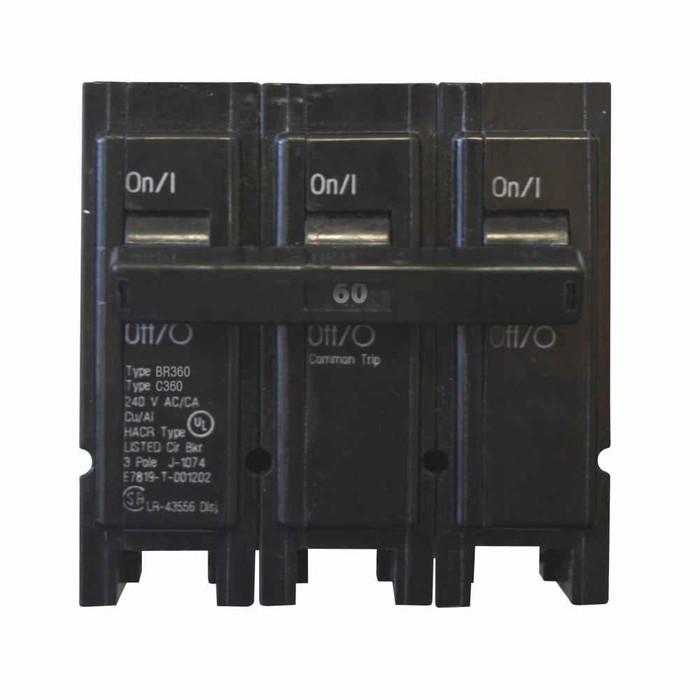

Eaton Thermal Magnetic Circuit Breaker 60A Three-Pole 240V 10kAIC BR Series Plug-On

Eaton Thermal Magnetic Circuit Breaker 60A Three-Pole 240V 10kAIC BR Series Plug-On

Professional Electrical Circuit Protection Equipment

The Eaton Thermal Magnetic Circuit Breaker delivers exceptional electrical power management and control performance for residential and commercial electrical distribution systems. This 60A three-pole 240V circuit breaker provides reliable electrical protection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance Excellence

• 60 Ampere Current Rating - High-capacity electrical protection for demanding residential and commercial circuits with reliable overcurrent protection
• Three-Pole Configuration - Complete three-phase electrical protection with common trip mechanism for balanced load protection and electrical safety
• 240V Voltage Rating - Professional voltage capacity for standard residential and light commercial electrical applications
• 10 kAIC Interrupt Rating - Robust short-circuit interrupting capacity for reliable fault current protection in typical electrical installations

Professional Installation & Protection

• BR Series Plug-On Design - Quick and secure installation in Type BR loadcenters with reliable electrical connection and professional mounting
• Thermal Magnetic Protection - Advanced dual-protection technology combining thermal overload and magnetic short-circuit protection for comprehensive electrical safety
• Common Trip Operation - Simultaneous tripping of all three poles ensures complete circuit isolation and enhanced electrical safety protection

Technical Specifications

Amperage Rating: 60A, Voltage Rating: 240V, Number of Poles: Three-pole, Interrupt Rating: 10 kAIC, Circuit Breaker Type: BR Series, Trip Type: Common breaker trip, Mounting Method: Plug-on, Wire Size: #4-1/0 AWG Cu/Al, Used With: Type BR Loadcenters, Certifications: UL 489, Compliances: Federal Specifications Classification W-C375, Dimensions: 3" W x 2.75" H x 3" D, Weight: 0.94 lb

Installation & Usage

1. Verify electrical power is completely disconnected and lockout/tagout procedures are followed before beginning installation
2. Confirm compatibility with Type BR loadcenter and verify adequate space for three-pole circuit breaker installation
3. Align circuit breaker with loadcenter bus bars and firmly press plug-on connection until fully seated
4. Connect circuit wiring using #4-1/0 AWG copper or aluminum conductors as specified for 60A capacity
5. Verify secure wire connections and proper torque specifications for electrical safety and code compliance
6. Test circuit breaker operation and verify proper tripping function before energizing electrical system

Professional Applications

Ideal for:

• Residential Electrical Systems - Main panel protection for high-capacity circuits including electric ranges, dryers, and HVAC equipment
• Commercial Load Centers - Three-phase electrical protection for small commercial facilities and light industrial applications
• HVAC System Protection - Dedicated circuit protection for air conditioning units, heat pumps, and commercial heating equipment
• Electric Vehicle Charging - High-amperage circuit protection for Level 2 EV charging stations and electrical vehicle supply equipment
• Workshop and Garage Circuits - Heavy-duty electrical protection for welding equipment, large power tools, and industrial machinery
• Pool and Spa Equipment - Reliable electrical protection for pool pumps, heaters, and spa electrical systems requiring three-phase power
• Commercial Kitchen Equipment - Circuit protection for electric ranges, ovens, and high-capacity commercial cooking equipment
• Electrical Panel Upgrades - Professional replacement and upgrade applications in existing Type BR electrical distribution systems

Thermal Magnetic Technology Advantage

The advanced thermal magnetic protection technology combines the benefits of thermal overload protection for sustained overcurrent conditions with magnetic protection for rapid short-circuit fault clearing. This dual-protection approach ensures comprehensive electrical safety while providing reliable discrimination between temporary overloads and dangerous fault conditions, making it ideal for professional electrical installations requiring dependable circuit protection.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers the proven reliability and advanced technology that electrical professionals trust worldwide. Every circuit breaker meets rigorous UL 489 safety standards and Federal Specifications Classification W-C375 requirements, ensuring consistent performance and electrical safety. Trusted by electricians, electrical contractors, and facility professionals globally, Eaton's commitment to quality construction and dependable electrical performance makes it the preferred choice for critical electrical protection applications.
