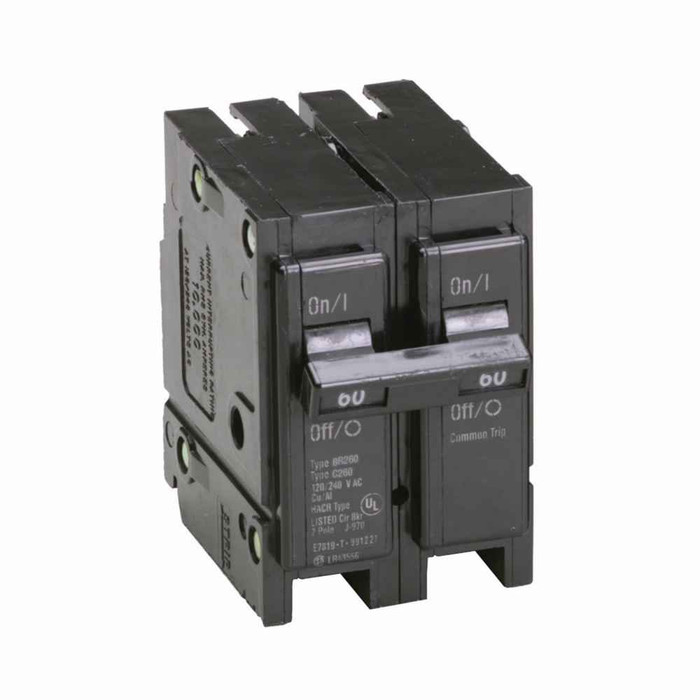

Eaton Thermal Magnetic Circuit Breaker 60A Two-Pole 120/240V BR Series
Professional Electrical Circuit Protection Equipment
The Eaton BR Series Thermal Magnetic Circuit Breaker delivers exceptional electrical power management and control performance for residential and commercial electrical distribution systems. This 60A two-pole circuit breaker provides reliable electrical protection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.
Professional Features & Benefits
Electrical Performance Excellence
- 60 Ampere Rating - High-capacity current handling for demanding residential and commercial electrical loads with reliable overcurrent protection
- Two-Pole Configuration - Simultaneous protection of both hot conductors in 240V circuits with common trip mechanism for enhanced electrical safety
- 10 kAIC Interrupt Rating - Professional-grade fault current interruption capability for safe electrical system protection in residential and light commercial applications
- 120/240V Voltage Rating - Versatile voltage compatibility for standard residential electrical distribution and split-phase commercial systems
Installation & Protection Features
- Plug-On Mounting Method - Quick and secure installation into Type BR loadcenters with reliable electrical connection and easy maintenance access
- Common Trip Operation - Coordinated tripping of both poles ensures complete circuit isolation and enhanced electrical safety protection
- Wire Size Compatibility - Accommodates #8-1/0 AWG copper and aluminum conductors for flexible installation options and professional wiring practices
Technical Specifications
Amperage Rating: 60A, Voltage Rating: 120/240V, Number of Poles: Two-pole, Interrupt Rating: 10 kAIC, Circuit Breaker Type: BR Series, Trip Type: Common breaker trip, Mounting Method: Plug-on, Wire Size: #8-1/0 AWG Cu/Al, Used With: Type BR Loadcenters, Certifications: UL 489, Compliances: Federal Specifications Classification W-C375, Dimensions: 2.9" W x 2.5" H x 1.9" D, Weight: 0.55 lb
Installation & Usage
- Verify power is completely disconnected and test electrical system with appropriate safety equipment before beginning installation
- Confirm loadcenter compatibility with Type BR circuit breakers and verify adequate space for two-pole breaker installation
- Align circuit breaker with bus bars in loadcenter and firmly press plug-on connection until fully seated and secure
- Connect branch circuit conductors to breaker terminals using proper torque specifications for #8-1/0 AWG wire sizes
- Verify proper wire routing and secure all connections according to NEC requirements and local electrical codes
- Test circuit breaker operation and verify proper electrical continuity before energizing the protected circuit
Professional Applications
Ideal for:
- Residential Electrical Systems - Main panel circuit protection for high-amperage appliances, HVAC systems, and electrical distribution
- Commercial Electrical Distribution - Branch circuit protection in office buildings, retail spaces, and light commercial facilities
- HVAC System Protection - Dedicated circuit protection for air conditioning units, heat pumps, and electrical heating systems
- Appliance Circuit Protection - Electric ranges, dryers, water heaters, and other high-current residential appliances
- Electrical Panel Upgrades - Replacement and upgrade applications in existing Type BR loadcenter installations
- Multi-Family Housing - Apartment complexes, condominiums, and residential electrical distribution systems
- Small Commercial Applications - Restaurants, small offices, and retail electrical systems requiring reliable circuit protection
- Electrical Safety Systems - Critical circuit protection where reliable overcurrent protection and common trip operation are essential
Thermal-Magnetic Protection Advantage
The thermal-magnetic trip mechanism provides dual protection against electrical overloads and short circuits. The thermal element responds to sustained overcurrent conditions while the magnetic element provides instantaneous protection against high-fault currents, ensuring comprehensive electrical system protection for professional installations.
Why Choose Eaton Quality?
With over a century of electrical power management innovation, Eaton delivers the reliability and performance that electrical professionals demand. UL 489 listed and compliant with Federal Specifications, this BR Series circuit breaker represents Eaton's commitment to electrical safety, quality construction, and dependable performance trusted by electricians, electrical contractors, and facility professionals worldwide.
EAT-BR260 - spec sheet
Manufacturer Resources
Product Specs
- Amperage Rating:
- 60 A
- Certifications:
- UL 489
- Circuit Breaker Type:
- BR
- Compliances:
- Federal Specifications Classification W-C375
- Interrupt Rating:
- 10 kAIC
- Main Circuit Breaker:
- BR
- Mounting Method:
- Plug-on
- Number Of Poles:
- Two-pole
- Product Height:
- 2.5 in
- Product Length Depth:
- 1.9 in
- Product Type:
- Thermal Magnetic Circuit Breaker
- Product Weight:
- .55 lb
- Product Width:
- 2.9 in
- Quantity:
- 28
- Trip Type:
- Common breaker trip
- Used With:
- Type BR Loadcenters
- Voltage Rating:
- 120/240 V
- Wire Size:
- #8-1/0 AWG Cu/Al
- Product Group:
- Electrical
- Product Subgroup:
- Circuit Breaker
