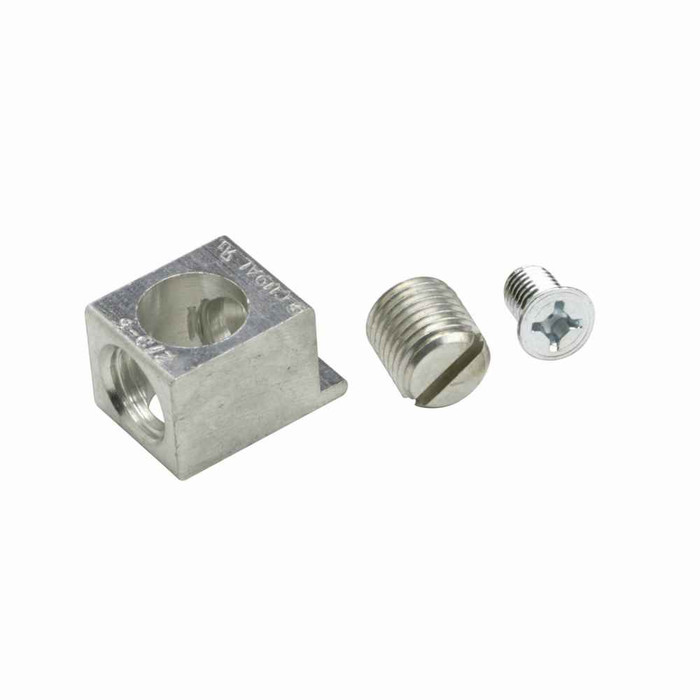

Eaton Neutral Lug 125A CH Series 3/4-Inch Loadcenter Accessory

Eaton CH Series Neutral Lug 125A Loadcenter Accessory

Professional Electrical Loadcenter Connection Component

The Eaton CH Series Neutral Lug delivers exceptional electrical connection performance for loadcenter neutral bus applications. This 125A neutral lug provides reliable electrical connection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Connection Performance

• 125A Current Rating - High-capacity neutral connection for demanding electrical distribution applications with reliable current-carrying performance
• CH Series Compatibility - Engineered specifically for Eaton CH loadcenter systems ensuring perfect fit and optimal electrical performance
• 3/4-Inch Design - Compact profile allows efficient installation in space-constrained electrical panel environments
• #2/0 Maximum Wire Size - Accommodates large gauge conductors for high-amperage neutral connections in commercial and residential applications

Professional Installation & Protection

• UL 489 Certified - Meets rigorous electrical safety standards for professional electrical installations and code compliance
• Add-On Accessory Design - Provides additional neutral connection points for expanding electrical distribution capacity in existing loadcenters
• Precision Engineering - Manufactured to exact specifications ensuring reliable electrical contact and long-term performance in electrical systems

Technical Specifications

Amperage Rating: 125A, Series: CH, Product Type: Breaker Accessories, Maximum Wire Size: #2/0, Dimensions: 8 in L x 5 in W x 0.1 in H, Weight: 0.1 lb, Certifications: UL 489, Used With: #2/0 max wire size loadcenters, Catalog Notes: Add-on

Installation & Usage

1. Verify power is completely disconnected and lockout/tagout procedures are followed before beginning installation
2. Confirm compatibility with existing CH series loadcenter and available neutral bus space
3. Position neutral lug in designated location on neutral bus bar ensuring proper alignment
4. Secure neutral lug to bus bar using appropriate torque specifications per manufacturer guidelines
5. Connect neutral conductor ensuring proper wire size compatibility up to #2/0 maximum
6. Verify all connections are tight and properly seated before energizing electrical system

Professional Applications

Ideal for:

• Residential Electrical Panels - Additional neutral connections for expanding home electrical distribution systems and circuit additions
• Commercial Loadcenters - Professional-grade neutral connections for office buildings, retail spaces, and light commercial electrical systems
• Electrical System Upgrades - Adding neutral capacity during electrical panel modifications and service upgrades
• Multi-Circuit Applications - Providing dedicated neutral connections for specialized electrical circuits and equipment
• Code Compliance Projects - Meeting electrical code requirements for proper neutral connections in electrical distribution systems
• Electrical Contractor Work - Professional installations requiring reliable neutral bus connections in CH series loadcenters
• Facility Maintenance - Electrical system maintenance and expansion projects in commercial and industrial facilities
• Electrical Safety Systems - Ensuring proper neutral connections for electrical safety and grounding systems

CH Series Advantage

The CH series represents Eaton's commitment to reliable residential and light commercial electrical distribution. This neutral lug is specifically engineered for CH loadcenter compatibility, ensuring optimal electrical performance and seamless integration with existing electrical systems for professional electrical installations.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers unmatched quality and reliability in electrical distribution components. Our UL 489 certified neutral lugs provide the electrical safety standards and dependable performance that electricians, electrical contractors, and facility professionals trust worldwide for critical electrical connection applications.
