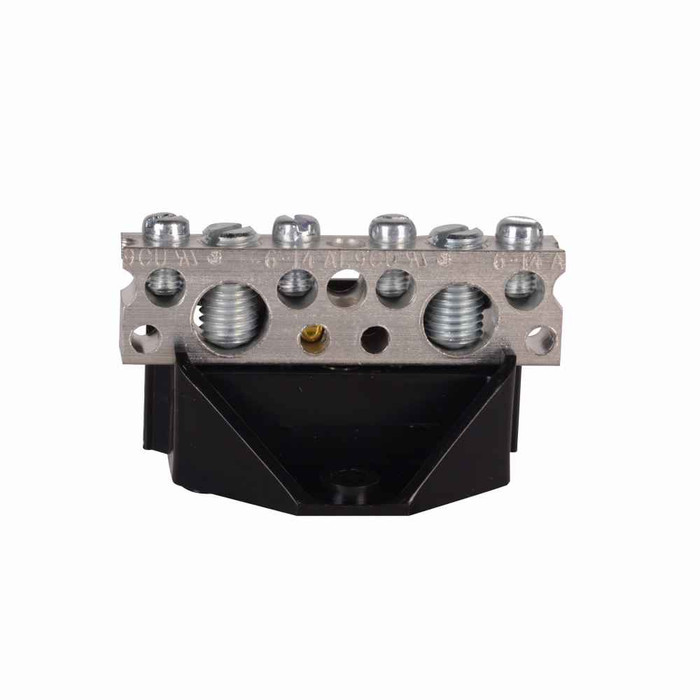

Eaton Installation Kit Isolated Neutral Assembly 3/4-Inch CH Loadcenter Field Parts

Eaton Installation Kit Isolated Neutral Assembly 3/4-Inch CH Loadcenter Field Parts

Professional Electrical Loadcenter Installation Component

The Eaton Installation Kit Isolated Neutral Assembly delivers exceptional electrical installation performance for Type CH loadcenter field modifications and upgrades. This 3/4-inch isolated neutral assembly provides reliable electrical isolation and neutral separation designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Installation Performance

• 3/4-Inch CH Loadcenter Compatibility - Specifically designed for Type CH loadcenter installations with precise dimensional fit and electrical performance
• Isolated Neutral Assembly Design - Provides proper neutral isolation for computer circuits and sensitive electronic equipment protection
• Field Installation Ready - Complete installation kit with all necessary components for professional field modifications
• Compact Dimensions - 8-inch depth, 5-inch width, and 1.5-inch height for efficient space utilization in electrical panels

Professional Installation Benefits

• Type CH Loadcenter Integration - Seamless compatibility with existing CH series electrical distribution systems
• Computer Circuit Protection - Specialized design for computer circuits requiring isolated neutral connections
• Lightweight Construction - 0.1-pound weight for easy handling during installation procedures

Technical Specifications

Product Type: Installation Kit and Part, Size: 3/4 inch, Dimensions: 8 inches depth x 5 inches width x 1.5 inches height, Weight: 0.1 pounds, Used With: Type CH loadcenters, Special Features: Used with CH style 3/4 inch loadcenters, Application: Computer circuits, Certifications: Contact manufacturer for specific certification details

Installation & Usage

1. Verify power is completely disconnected from the Type CH loadcenter before beginning installation procedures
2. Remove existing loadcenter cover and identify the appropriate neutral bar location for isolated assembly installation
3. Position the isolated neutral assembly in the designated 3/4-inch space within the CH loadcenter enclosure
4. Secure the assembly using proper electrical mounting hardware and ensure all connections are tight and properly seated
5. Connect computer circuit neutrals to the isolated neutral assembly while maintaining proper wire management
6. Verify all connections are secure and reinstall the loadcenter cover before restoring electrical power

Professional Applications

Ideal for:

• Computer Circuit Protection - Specialized neutral isolation for computer equipment and sensitive electronic loads
• Commercial Electrical Systems - Office buildings, data centers, and commercial facilities requiring isolated neutral connections
• Residential Electrical Upgrades - Home office installations and residential computer room electrical modifications
• Industrial Control Systems - Manufacturing facilities with computer-controlled equipment requiring neutral isolation
• Healthcare Facilities - Medical equipment installations requiring isolated neutral connections for proper operation
• Educational Institutions - Computer labs and classroom technology installations with specialized electrical requirements
• Loadcenter Modifications - Field upgrades and modifications to existing Type CH electrical distribution systems
• Electrical Panel Upgrades - Professional electrical contractor installations requiring neutral isolation capabilities

CH Loadcenter Advantage

The Eaton CH series loadcenter system provides exceptional electrical distribution performance with modular design flexibility. This isolated neutral assembly integrates seamlessly with CH loadcenter architecture, enabling professional electricians to provide specialized neutral isolation for computer circuits and sensitive electronic equipment while maintaining the reliability and safety standards that define Eaton electrical power management solutions.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation ensures this isolated neutral assembly delivers the professional quality and reliability that electricians, electrical contractors, and facility professionals demand. With comprehensive electrical safety standards compliance and proven performance in commercial, industrial, and residential applications, Eaton installation components provide the trusted electrical solutions that power management professionals rely on for critical electrical distribution system modifications and upgrades worldwide.
