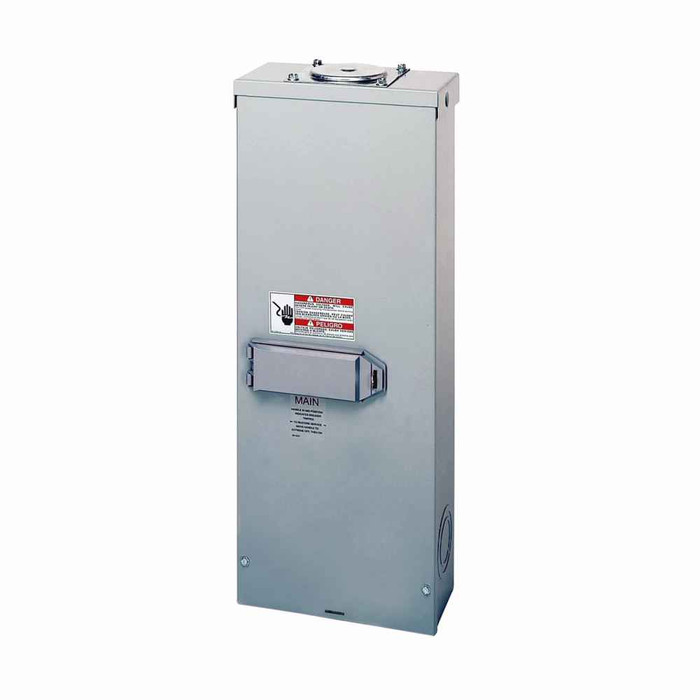

Eaton CH enclosure

Eaton Circuit Breaker Enclosure CH Series 25 Inch Depth UL Listed Rainproof

(No reviews yet) Write a Review

Model: ECC225R

In Stock (leaves warehouse same day if ordered before 3pm ET)

$288.76
$233.39
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton CH Circuit Breaker Enclosure

Professional Electrical Enclosure for Circuit Breaker Protection

The Eaton CH Circuit Breaker Enclosure delivers exceptional electrical protection and housing performance for professional circuit breaker installations. This UL Listed enclosure provides reliable electrical component protection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Protection Performance

  • UL Listed Certification - Ensures compliance with electrical safety standards and professional installation requirements for commercial and residential applications
  • 25 Inch Depth Design - Provides ample space for circuit breaker installation and electrical connections with professional accessibility
  • Rainproof Construction - Delivers weather-resistant protection for outdoor electrical installations and harsh environmental conditions
  • Service Entrance Approved - Certified for main electrical service applications providing reliable power distribution protection

Installation & Safety Features

  • Factory Installed Ground Lug - Pre-installed grounding connection accepting #14-#2 wire sizes for electrical safety compliance
  • Pre-Drilled Ground Bar Holes - Ready for GBK5 ground bar installation providing flexible grounding options for electrical contractors
  • Professional Dimensions - 25" depth x 9.5" width x 5.5" height design optimized for circuit breaker housing and electrical component protection

Technical Specifications

Product Type: Circuit Breaker Enclosure, Series: CH, Depth: 25 inches, Width: 9.5 inches, Height: 5.5 inches, Weight: 15.5 pounds, Certifications: UL Listed, Ground Lug: Factory installed accepting #14-#2 wire, Ground Bar Compatibility: Pre-drilled for GBK5, Service Entrance: Approved, Weather Protection: Rainproof construction, Installation: Circuit breaker sold separately

Installation & Usage

  1. Verify electrical service requirements and local code compliance before installation
  2. Mount enclosure securely using appropriate fasteners for installation environment
  3. Install appropriate CH series circuit breaker (sold separately) following manufacturer specifications
  4. Connect electrical conductors to factory-installed ground lug using proper wire sizes (#14-#2)
  5. Install GBK5 ground bar if additional grounding points are required for electrical system
  6. Verify all electrical connections are secure and properly torqued per electrical standards

Professional Applications

Ideal for:

  • Service Entrance Applications - Main electrical service installations for residential and commercial buildings
  • Outdoor Electrical Installations - Weather-resistant circuit breaker protection for exterior electrical systems
  • Commercial Electrical Systems - Professional circuit breaker housing for office buildings and retail facilities
  • Industrial Power Distribution - Reliable electrical component protection for manufacturing and industrial facilities
  • Residential Electrical Panels - Circuit breaker enclosures for home electrical distribution systems
  • Electrical Safety Systems - Professional enclosure solutions for electrical protection and code compliance
  • Contractor Installations - Versatile enclosure for electrical contractor circuit breaker projects
  • Facility Electrical Upgrades - Replacement enclosures for electrical system modernization projects

CH Series Advantage

The Eaton CH series represents decades of electrical engineering excellence, providing reliable circuit breaker housing solutions with rainproof protection and service entrance approval. The factory-installed ground lug and pre-drilled ground bar holes demonstrate Eaton's commitment to professional installation efficiency and electrical safety compliance.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers unmatched quality and reliability in electrical enclosure solutions. Our UL Listed circuit breaker enclosures provide the electrical safety standards and professional performance that electricians, electrical contractors, and facility professionals trust worldwide, backed by comprehensive electrical engineering expertise and commitment to intelligent power management technology.



EAT-ECC225R - spec sheet

Manufacturer Resources

Product Specs

Catalog Notes:
Order circuit breaker separately. Rainproof panels are furnished with hcp. One ground lug accepting 1-#14-#2 is factory installed. Also, there are pre-drilled holes to accept a GBK5 ground bar. approved for service entrance.
Certifications:
UL Listed
Product Height:
5.5 IN
Product Length Depth:
25 IN
Product Weight:
15.5 LB
Product Width:
9.5 IN
Product Type:
Circuit Breaker Enclosure
Product Group:
Electrical
Department:
Electrical
