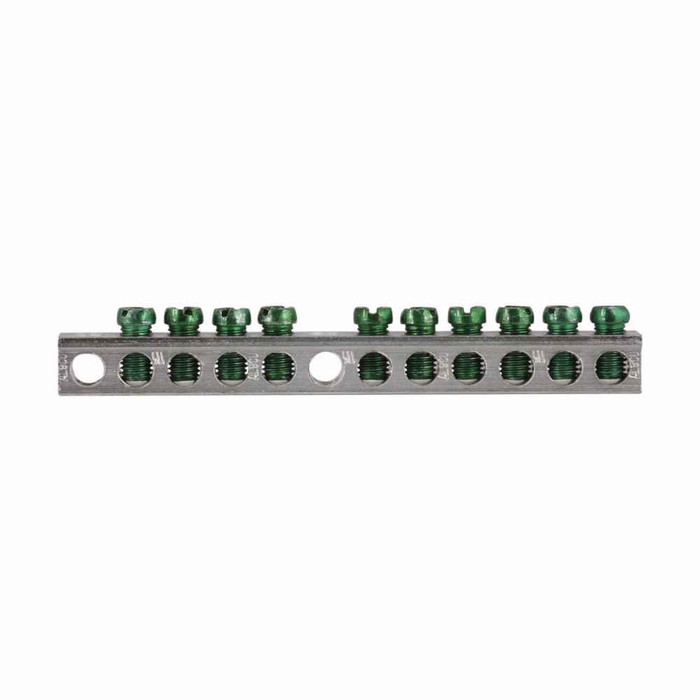

Eaton Ground Bar Kit 10-Terminal CH Series 1-3/4 Inch Mounting Distance

Eaton Ground Bar Kit 10-Terminal CH Series

Professional Electrical Grounding Accessory

The Eaton Ground Bar Kit 10-Terminal CH Series delivers exceptional electrical grounding performance for CH loadcenter installations. This 10-terminal ground bar kit provides reliable electrical grounding designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Grounding Performance

• 10-Terminal Configuration - Provides multiple grounding connections for comprehensive electrical safety in residential and commercial loadcenter applications
• 1-3/4 Inch Mounting Distance - Precise mounting hole spacing ensures proper fit and secure installation in CH series loadcenters
• CH Series Compatibility - Specifically designed for 4/8 and 8/16 circuit CH loadcenters ensuring perfect electrical and mechanical integration
• Professional Grade Construction - Engineered for reliable electrical grounding performance with Eaton quality standards for long-term electrical safety

Installation & Protection

• Precise Fit Design - Engineered mounting dimensions ensure proper installation and secure electrical connections in CH loadcenter enclosures
• Electrical Safety Compliance - Provides essential grounding connections required for electrical code compliance and system safety
• Professional Installation - Designed for easy installation by qualified electricians with standard electrical tools and mounting hardware

Technical Specifications

Product Type: Ground Bar Kit, Number of Terminals: 10, Mounting Hole Distance: 1-3/4 inches, Series: CH, Compatible with: CH loadcenters for 4/8 and 8/16 circuit applications, Product Dimensions: 4.288 in L x 0.81 in H x 0.39 in W, Weight: 0.25 lb, Size: 3/4 inch, Certifications: Contact Manufacturer

Installation & Usage

1. Verify compatibility with CH series loadcenter and confirm 1-3/4 inch mounting hole spacing
2. Turn off main power and verify electrical system is de-energized before beginning installation
3. Position ground bar kit in designated location within CH loadcenter enclosure
4. Secure ground bar using appropriate mounting hardware through pre-drilled mounting holes
5. Connect equipment grounding conductors to individual terminals ensuring proper torque specifications
6. Verify all grounding connections are secure and properly terminated before energizing system

Professional Applications

Ideal for:

• Residential Electrical Systems - Essential grounding component for home electrical panels and loadcenter installations
• Commercial Electrical Distribution - Professional grounding solutions for office buildings, retail spaces, and commercial facilities
• CH Loadcenter Upgrades - Retrofit applications for existing CH series electrical panels requiring additional grounding capacity
• Electrical Code Compliance - Ensures proper grounding connections meet NEC requirements for electrical safety
• New Construction Projects - Essential component for new electrical installations using CH series loadcenters
• Electrical Panel Maintenance - Replacement ground bar for maintenance and repair of existing CH loadcenter systems
• Multi-Circuit Applications - Supports grounding requirements for 4/8 and 8/16 circuit loadcenter configurations
• Professional Electrical Contracting - Reliable grounding solution for electrical contractors and professional installers

CH Series Advantage

The CH series compatibility ensures seamless integration with Eaton's proven loadcenter technology, providing reliable electrical grounding performance with precise mounting dimensions and professional-grade construction for long-term electrical safety and code compliance.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation, commitment to electrical safety and reliability, professional certifications, and trusted performance for electricians, electrical contractors, and facility professionals worldwide makes this ground bar kit the preferred choice for professional electrical grounding applications.
