Eaton Ground Bar Kit 21-Terminal 1-3/4 Inch Mounting Distance CH BR Loadcenters

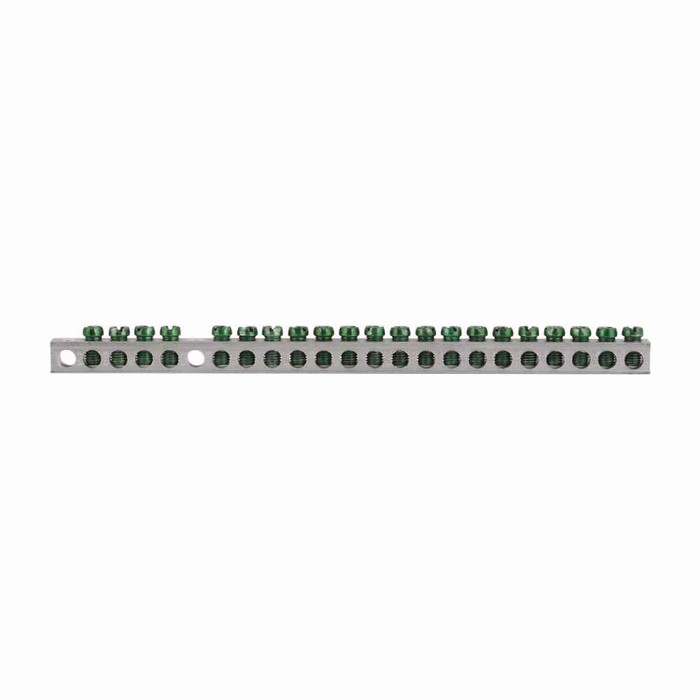

Eaton Ground Bar Kit 21-Terminal

Professional Electrical Grounding Accessory for CH and BR Loadcenters

The Eaton Ground Bar Kit delivers exceptional electrical grounding performance for CH and BR loadcenter installations. This 21-terminal ground bar kit with 1-3/4 inch mounting hole distance provides reliable electrical grounding designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Grounding Performance

• 21 Terminal Capacity - Accommodates multiple grounding connections for comprehensive electrical safety in residential and commercial loadcenter applications
• 1-3/4 Inch Mounting Distance - Precise mounting hole spacing ensures proper fit and secure installation in CH and BR loadcenter enclosures
• Professional Grade Construction - Engineered for reliable electrical grounding performance and long-term durability in electrical distribution systems
• CH and BR Compatibility - Specifically designed for use with Eaton CH and BR series loadcenters for seamless integration

Installation & Safety

• Secure Mounting System - Engineered mounting configuration provides stable installation within loadcenter enclosures
• Professional Installation Ready - Designed for efficient installation by qualified electricians and electrical contractors
• Code Compliance Support - Helps meet electrical code requirements for proper grounding in electrical distribution systems

Technical Specifications

Product Type: Ground Bar Kit, Number of Terminals: 21, Mounting Hole Distance: 1-3/4 inches, Compatible With: CH and BR Loadcenters, Size: 3/4 inch, Dimensions: 7.4 x 0.6 x 0.4 inches, Weight: 0.2 lb, Certifications: Contact Manufacturer for specific compliance information

Installation & Usage

1. Verify compatibility with CH or BR loadcenter model and ensure proper electrical shutdown
2. Position ground bar kit within loadcenter enclosure using 1-3/4 inch mounting hole spacing
3. Secure ground bar kit to loadcenter mounting points using appropriate fasteners
4. Connect equipment grounding conductors to individual terminals as required by electrical code
5. Verify all grounding connections are tight and properly torqued per manufacturer specifications
6. Complete installation inspection and restore electrical power following proper safety procedures

Professional Applications

Ideal for:

• Residential Electrical Systems - Ground bar expansion for home electrical panels and loadcenter grounding requirements
• Commercial Electrical Distribution - Professional grounding solutions for office buildings, retail spaces, and commercial facilities
• Electrical Panel Upgrades - Adding grounding capacity during electrical system modernization and expansion projects
• Code Compliance Projects - Meeting electrical code requirements for proper equipment grounding in distribution systems
• Electrical Contractor Applications - Professional installation accessory for electrical service and panel work
• Facility Maintenance - Electrical system maintenance and grounding system enhancement projects
• New Construction - Electrical grounding infrastructure for residential and light commercial building projects
• Electrical Safety Systems - Supporting comprehensive electrical safety through proper equipment grounding

CH and BR Loadcenter Advantage

Specifically engineered for Eaton CH and BR series loadcenters, this ground bar kit ensures perfect compatibility and reliable performance. The precise 1-3/4 inch mounting hole distance and 21-terminal capacity provide professional electricians with the grounding infrastructure needed for comprehensive electrical safety and code compliance in residential and commercial applications.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers the quality construction and dependable performance that electricians, electrical contractors, and facility professionals trust worldwide. This ground bar kit represents Eaton's commitment to electrical safety standards, professional reliability, and the advanced engineering that supports proper electrical grounding in modern power distribution systems.
