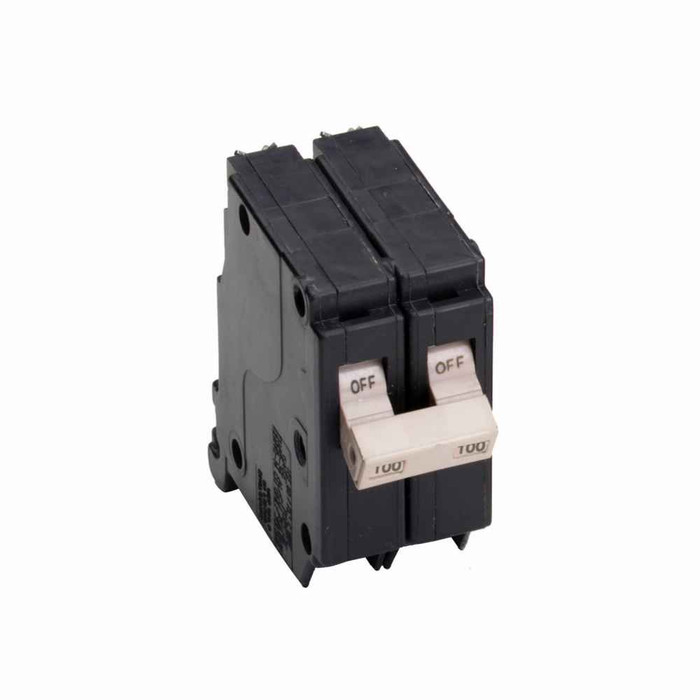

Eaton Thermal Magnetic Circuit Breaker 100A Two-Pole 120/240V CH Series 10kAIC Common Trip

Eaton CH Thermal Magnetic Circuit Breaker 100A Two-Pole 120/240V

Professional Electrical Circuit Protection for Residential and Commercial Applications

The Eaton CH Thermal Magnetic Circuit Breaker delivers exceptional electrical power protection and control performance for residential and commercial electrical systems. This 100A two-pole 120/240V circuit breaker provides reliable electrical protection with 10kAIC interrupt rating designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced thermal-magnetic technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Protection Performance

• 100 Ampere Rating - High-capacity current protection for demanding residential and commercial electrical circuits with reliable overcurrent protection
• 10kAIC Interrupt Rating - Professional-grade interrupting capacity safely clears fault currents up to 10,000 amperes for enhanced electrical safety
• Two-Pole 120/240V Configuration - Dual-pole design provides simultaneous protection for both hot conductors in split-phase electrical systems
• Common Trip Operation - Coordinated tripping ensures both poles open together for balanced electrical protection and system safety

Installation & Compatibility

• Type CH Loadcenter Compatibility - Engineered specifically for Eaton Type CH loadcenters ensuring perfect fit and optimal electrical performance
• 3/4-Inch Standard Design - Compact form factor maximizes panel space utilization while maintaining full electrical protection capability
• #10-1/0 AWG Cu/Al Wire Compatibility - Accommodates copper and aluminum conductors from #10 to 1/0 AWG for versatile installation options

Professional Quality Construction

• Thermal-Magnetic Trip Technology - Advanced dual-element protection combines thermal overload and magnetic short-circuit protection for comprehensive electrical safety
• UL 489 Listed - Meets rigorous Underwriters Laboratories safety standards for molded case circuit breakers ensuring code compliance

Technical Specifications

Amperage Rating: 100A, Voltage Rating: 120/240V, Number of Poles: Two-pole, Interrupt Rating: 10kAIC, Circuit Breaker Type: CH Series, Trip Type: Common breaker trip, Wire Size: #10-1/0 AWG Cu/Al, Used With: Type CH Loadcenters, Certifications: UL 489, Dimensions: 3.5" L x 3.25" H x 1.5" W, Weight: 0.65 lb, Thermal-Magnetic Trip Technology

Installation & Usage

1. Verify power is completely disconnected and test electrical panel with appropriate voltage tester before beginning installation
2. Confirm circuit breaker compatibility with Type CH loadcenter and verify adequate panel space for two-pole installation
3. Install circuit breaker by aligning with panel bus bars and firmly pressing into position until securely seated
4. Connect #10-1/0 AWG copper or aluminum conductors to breaker terminals using proper torque specifications
5. Verify proper wire routing and secure all connections before energizing the electrical system
6. Test circuit breaker operation and verify proper electrical protection functionality after installation

Professional Applications

Ideal for:

• Residential Electrical Systems - Main panel protection for high-amperage household circuits including electric ranges, dryers, and HVAC equipment
• Commercial Building Protection - Reliable circuit protection for commercial electrical distribution systems and equipment feeders
• Industrial Power Distribution - Professional-grade protection for industrial electrical panels and motor control applications
• Electrical Panel Upgrades - Replacement circuit breakers for existing Type CH loadcenter modernization projects
• New Construction Projects - Primary electrical protection for residential and commercial building electrical systems
• Service Panel Applications - Main and branch circuit protection in electrical service entrance panels
• Subpanel Distribution - Feeder protection for electrical subpanels and distribution boards
• Equipment Protection - Dedicated circuit protection for high-amperage electrical equipment and appliances

Thermal-Magnetic Technology Advantage

Eaton's proven thermal-magnetic trip technology combines the reliability of thermal overload protection with the speed of magnetic short-circuit protection. The thermal element provides time-delay protection against overloads while the magnetic element delivers instantaneous protection against short circuits and ground faults, ensuring comprehensive electrical system protection for professional applications.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers the professional quality and reliability that electricians, electrical contractors, and facility professionals trust worldwide. Our UL 489 listed circuit breakers meet the highest safety standards while providing dependable electrical protection performance. From residential electrical panels to commercial power distribution systems, Eaton's commitment to electrical safety and advanced protection technology ensures reliable operation for critical electrical applications.
