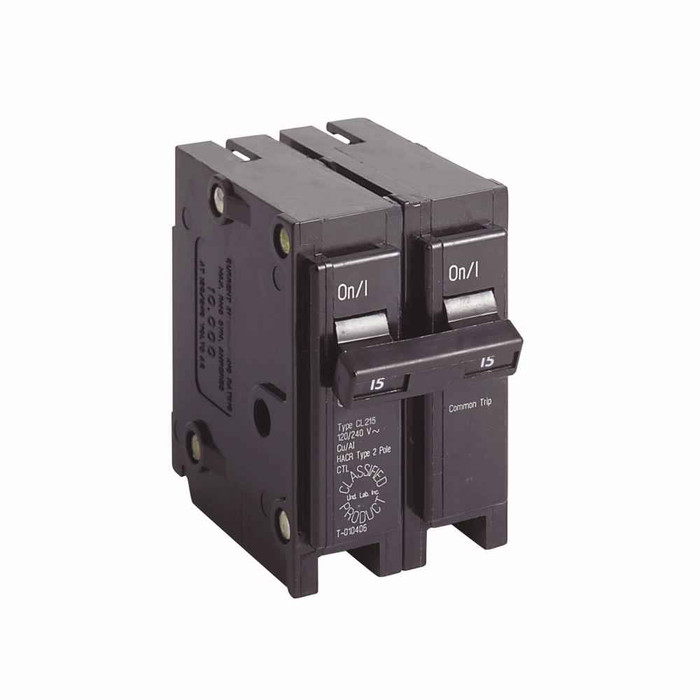

Eaton Thermal Magnetic Circuit Breaker 15A Two-Pole 120/240V 10kAIC Type CL Classified Replacement

Eaton Thermal Magnetic Circuit Breaker 15A Two-Pole 120/240V 10kAIC Type CL Classified Replacement

Professional Electrical Circuit Protection for Type CH Loadcenters

The Eaton Thermal Magnetic Circuit Breaker delivers exceptional electrical protection performance for residential and commercial electrical systems. This 15A two-pole 120/240V circuit breaker with 10kAIC interrupt rating provides reliable electrical protection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced thermal-magnetic technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Protection Performance

• 15 Ampere Rating - Provides precise overcurrent protection for 15A branch circuits in residential and commercial electrical applications
• Two-Pole Configuration - Delivers simultaneous protection for both hot conductors with common trip operation for enhanced electrical safety
• 10kAIC Interrupt Rating - Safely interrupts fault currents up to 10,000 amperes for reliable short circuit protection in standard electrical systems
• 120/240V Voltage Rating - Compatible with standard residential and light commercial electrical distribution systems

Installation & Compatibility

• Type CL Classified Design - Universal replacement breaker compatible with multiple loadcenter brands including Square D Homeline, GE Type THQ, and Murray Type MP
• Type CH Loadcenter Compatibility - Specifically designed for use with Type CH electrical panels and loadcenters
• Wire Size Compatibility - Accepts #14-4 AWG copper and aluminum conductors for versatile wiring applications

Professional Construction

• Thermal-Magnetic Trip Technology - Combines thermal overload protection with magnetic short circuit protection for comprehensive electrical safety
• Common Trip Operation - Ensures both poles trip simultaneously for enhanced electrical safety and code compliance
• UL 489 Listed - Meets rigorous electrical safety standards for professional electrical installations

Technical Specifications

Amperage Rating: 15A, Voltage Rating: 120/240V, Number of Poles: Two-pole, Interrupt Rating: 10kAIC, Circuit Breaker Type: CH, Trip Type: Common breaker trip, Wire Size: #14-4 AWG Cu/Al, Main Circuit Breaker: CL, Product Dimensions: 3" H x 2" W x 3" D, Product Weight: 0.5 lb, Certifications: UL 489, Used With: Type CH Loadcenters, Catalog Notes: Replacement for Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas and Betts Type TB, Murray Type MP, ITE/Siemens Type QP - Requires Two 1-inch spaces

Installation & Usage

1. Verify electrical panel compatibility with Type CH loadcenters and ensure adequate space for two 1-inch breaker positions
2. Turn off main electrical power and verify de-energized state using appropriate electrical testing equipment
3. Remove existing breaker if replacing and carefully disconnect branch circuit wiring
4. Install new breaker by aligning with bus bars and pressing firmly into position until securely seated
5. Connect branch circuit conductors to breaker terminals ensuring proper wire size (#14-4 AWG Cu/Al) and secure connections
6. Restore electrical power and test breaker operation to verify proper installation and electrical protection

Professional Applications

Ideal for:

• Residential Electrical Systems - Branch circuit protection for lighting, receptacle, and appliance circuits in homes and apartments
• Commercial Electrical Applications - Office buildings, retail spaces, and light commercial facilities requiring reliable electrical protection
• Electrical Panel Upgrades - Replacement breaker for older electrical panels during renovation and modernization projects
• Multi-Brand Compatibility - Universal replacement for Square D Homeline, GE Type THQ, Murray Type MP, and other compatible loadcenters
• HVAC System Protection - Two-pole protection for air conditioning units, heat pumps, and electrical heating equipment
• Appliance Circuit Protection - Dedicated circuits for electric water heaters, dryers, and other 240V appliances
• Electrical Safety Upgrades - Replacing older breakers to maintain electrical code compliance and safety standards
• Professional Electrical Installations - New construction and electrical system expansions requiring reliable circuit protection

Thermal-Magnetic Technology Advantage

Eaton's proven thermal-magnetic trip technology provides dual protection mechanisms - thermal elements respond to sustained overloads while magnetic elements provide instantaneous protection against short circuits and ground faults. This combination ensures comprehensive electrical protection for both equipment and personnel safety in professional electrical installations.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers the reliability and performance that electrical professionals demand. Our UL 489 listed circuit breakers meet the highest safety standards while providing the versatility and compatibility needed for diverse electrical applications. Trusted by electricians, electrical contractors, and facility professionals worldwide, Eaton continues to lead in electrical protection technology and professional-grade electrical equipment manufacturing excellence.
