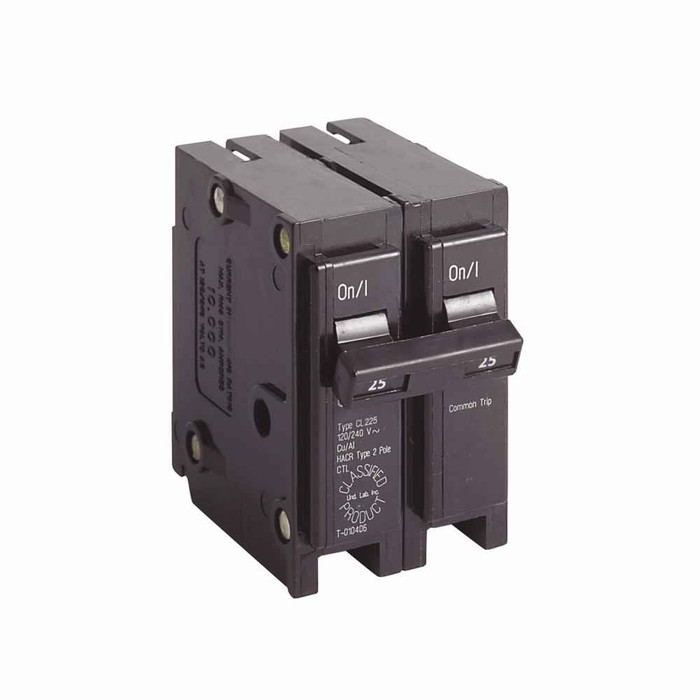

Eaton Thermal Magnetic Circuit Breaker 25A Two-Pole 120/240V 10kAIC Type CL Classified Replacement
Professional Electrical Circuit Protection Equipment
The Eaton Thermal Magnetic Circuit Breaker delivers exceptional electrical power management and control performance for residential and commercial electrical panel applications. This 25A two-pole circuit breaker provides reliable electrical protection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.
Professional Features & Benefits
Electrical Performance Excellence
- 25 Ampere Rating - Provides optimal current capacity for medium-load residential and commercial electrical circuits with reliable thermal-magnetic protection
- Two-Pole Configuration - Delivers simultaneous protection for both hot conductors in 240V applications with common trip functionality
- 10 kAIC Interrupt Rating - Safely interrupts fault currents up to 10,000 amperes, meeting residential and light commercial electrical safety requirements
- 120/240V Voltage Rating - Compatible with standard residential electrical systems and split-phase power distribution applications
Installation & Compatibility
- Type CL Classified Design - Universal replacement breaker compatible with multiple manufacturer loadcenters including Square D Homeline, GE Type THQ, and Murray Type MP
- Type CH Loadcenter Compatibility - Specifically designed for use with Type CH electrical panels and load centers
- Wire Size Compatibility - Accommodates #14-4 AWG copper and aluminum conductors for versatile wiring applications
Professional Construction
- Thermal-Magnetic Trip Technology - Combines thermal overload protection with magnetic short-circuit protection for comprehensive electrical safety
- Common Trip Operation - Ensures both poles trip simultaneously for enhanced electrical safety in two-pole applications
- UL 489 Certification - Meets rigorous electrical safety standards for professional electrical installations
Technical Specifications
Amperage Rating: 25A, Voltage Rating: 120/240V, Number of Poles: Two-pole, Interrupt Rating: 10 kAIC, Circuit Breaker Type: CH, Trip Type: Common breaker trip, Wire Size: #14-4 AWG Cu/Al, Main Circuit Breaker: CL, Product Dimensions: 2.5" H x 2" W x 1.9" D, Product Weight: 0.5 lb, Certifications: UL 489, Used With: Type CH Loadcenters
Installation & Usage
- Verify electrical panel compatibility with Type CH loadcenters and ensure proper two-space availability
- Turn off main electrical power and verify de-energized state using appropriate electrical testing equipment
- Remove existing circuit breaker if replacing, noting proper wire connections and circuit identification
- Install new thermal-magnetic circuit breaker ensuring proper alignment with bus bars and secure mounting
- Connect #14-4 AWG copper or aluminum conductors to breaker terminals with proper torque specifications
- Test circuit breaker operation and verify proper electrical protection before energizing connected loads
Professional Applications
Ideal for:
- Residential Electrical Systems - Perfect for protecting 240V appliance circuits, electric water heaters, and HVAC equipment in homes
- Commercial Load Centers - Suitable for light commercial electrical panels and power distribution systems requiring reliable circuit protection
- Replacement Applications - Universal classified design allows replacement of multiple manufacturer circuit breakers in existing electrical panels
- Split-Phase Power Distribution - Ideal for 120/240V electrical systems requiring two-pole circuit protection with common trip operation
- Appliance Circuit Protection - Excellent for protecting electric ranges, dryers, air conditioning units, and other 240V electrical equipment
- Electrical Panel Upgrades - Perfect for modernizing older electrical panels with reliable thermal-magnetic circuit protection technology
- Professional Electrical Installations - Trusted by electricians for new construction and electrical renovation projects requiring dependable circuit protection
- Maintenance and Service - Essential for electrical contractors performing circuit breaker replacement and electrical system maintenance
Thermal-Magnetic Protection Advantage
Eaton's thermal-magnetic circuit breaker technology combines the benefits of thermal overload protection for sustained overcurrent conditions with magnetic protection for short-circuit faults. This dual protection mechanism ensures comprehensive electrical safety by responding to both gradual overloads and instantaneous fault conditions, providing superior protection for electrical circuits and connected equipment.
Why Choose Eaton Quality?
With over a century of electrical power management innovation, Eaton leads the industry in intelligent power solutions and electrical safety technology. This UL 489 listed circuit breaker represents Eaton's commitment to electrical reliability and professional performance, trusted by electricians, electrical contractors, and facility professionals worldwide for dependable electrical protection and power distribution solutions.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 25 A
- Catalog Notes:
- Replacement for Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas and Betts Type TB, Murray Type MP, ITE/Siemens Type QP. Requires Two 1-inch (25.4 mm) spaces.
- Certifications:
- UL 489
- Circuit Breaker Type:
- CH
- Interrupt Rating:
- 10 kAIC
- Main Circuit Breaker:
- CL
- Number Of Poles:
- Two-pole
- Product Height:
- 2.5 in
- Product Length Depth:
- 1.9 in
- Product Type:
- Thermal Magnetic Circuit Breaker
- Product Weight:
- .5 lb
- Product Width:
- 2 in
- Trip Type:
- Common breaker trip
- Used With:
- Type CH Loadcenters
- Voltage Rating:
- 120/240 V
- Wire Size:
- #14-4 AWG Cu/Al
- Product Group:
- Electrical
- Product Subgroup:
- Circuit Breaker
