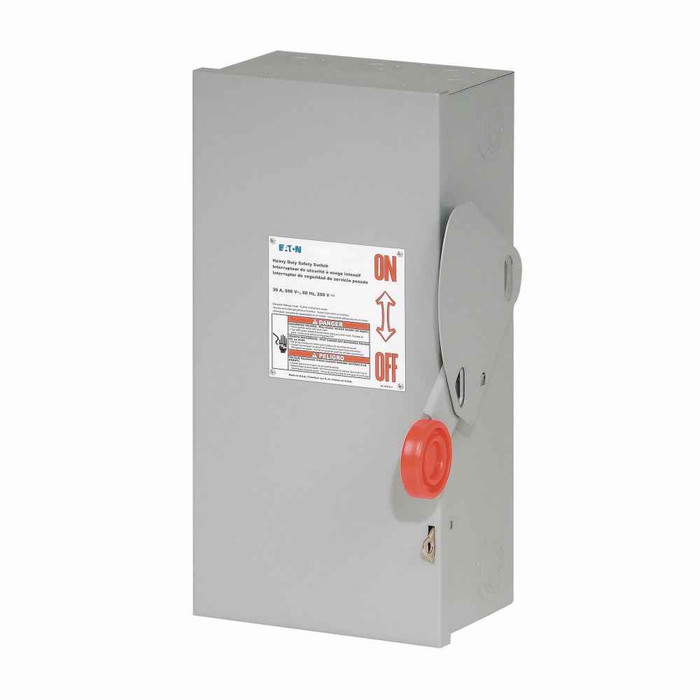

Eaton Safety Switch Single-Throw Fused 30A Three-Pole 600V NEMA 1 Class H Heavy Duty

Eaton Safety Switch Single-Throw Fused 30A Three-Pole 600V NEMA 1 Class H Heavy Duty

Professional Heavy Duty Fusible Safety Switch for Commercial and Industrial Applications

The Eaton Safety Switch Single-Throw Fused 30A Three-Pole 600V delivers exceptional electrical power management and control performance for commercial and industrial electrical isolation and protection applications. This 30A three-pole fusible safety switch provides reliable electrical protection and disconnect capability designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Heavy Duty Electrical Performance

• 30A Three-Pole Configuration - Provides reliable three-phase electrical disconnect and protection with 30 ampere current capacity for commercial and industrial motor control applications
• 600V Voltage Rating - Handles high voltage applications up to 600 volts for industrial power distribution and motor control systems
• Class H Fuse Compatibility - Accepts standard Class H fuses for flexible overcurrent protection and easy maintenance in commercial electrical systems
• Single-Throw Operation - Simple and reliable on/off switching operation for positive electrical isolation and safety compliance

Professional Installation & Protection

• NEMA 1 Enclosure Rating - Painted steel enclosure provides indoor protection against dust and accidental contact for commercial installations
• Wire Size Compatibility #14-2 AWG Cu/Al - Accommodates copper and aluminum conductors from #14 to #2 AWG for flexible wiring options
• UL Listed Certification - Meets rigorous safety standards for professional electrical installations and code compliance

Technical Specifications

Amperage Rating: 30A, Voltage Rating: 600V, Number of Poles: Three-pole, Number of Wires: 3, Enclosure: NEMA 1, Enclosure Material: Painted steel, Fuse Configuration: Fusible without neutral, Fuse Class: Class H, Wire Size: #14-2 AWG Cu/Al, Maximum HP Rating: 7.5 HP single-phase, 10/15/20 HP three-phase at 480/600V, Dimensions: 9.5" W x 9" H x 22.5" D, Weight: 10 lbs, Certifications: UL Listed, Suitable for service entrance use with neutral kit installed

Installation & Usage

1. Verify power is OFF and use proper lockout/tagout procedures before beginning installation
2. Mount safety switch securely to appropriate surface using proper mounting hardware for NEMA 1 indoor applications
3. Connect incoming power lines to line terminals observing proper phase sequence and torque specifications
4. Install appropriate Class H fuses matching the load requirements and electrical protection needs
5. Connect load conductors to load terminals ensuring proper wire size compatibility (#14-2 AWG Cu/Al)
6. Verify all connections are tight and properly torqued according to manufacturer specifications
7. Test switch operation and verify proper electrical isolation before energizing the circuit

Professional Applications

Ideal for:

• Motor Control Centers - Disconnect and protection for three-phase motors up to 20 HP in industrial applications
• Commercial HVAC Systems - Electrical isolation for rooftop units, air handlers, and commercial heating equipment
• Industrial Machinery - Safety disconnect for manufacturing equipment, conveyor systems, and process machinery
• Pump Control Applications - Electrical protection and isolation for water pumps, sump pumps, and irrigation systems
• Service Entrance Applications - Main disconnect service with neutral kit for commercial electrical service entrances
• Electrical Panel Feeders - Upstream protection and disconnect for electrical distribution panels and load centers
• Maintenance Disconnect - Safety isolation for equipment maintenance and electrical troubleshooting procedures
• Code Compliance Applications - NEC required disconnect switches for commercial and industrial electrical installations

Heavy Duty Construction Advantage

The heavy duty painted steel construction provides superior durability and corrosion resistance for demanding commercial and industrial environments. The NEMA 1 enclosure rating ensures reliable protection against dust and accidental contact while maintaining easy access for fuse replacement and maintenance. The single-throw design offers positive electrical isolation with visible blade position for enhanced safety during maintenance operations.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation ensures this safety switch delivers the reliability and performance that electrical professionals demand. With comprehensive UL listing and proven field performance, Eaton safety switches provide the electrical safety standards and dependable operation trusted by electricians, electrical contractors, and facility professionals worldwide for critical electrical protection and power distribution applications.
