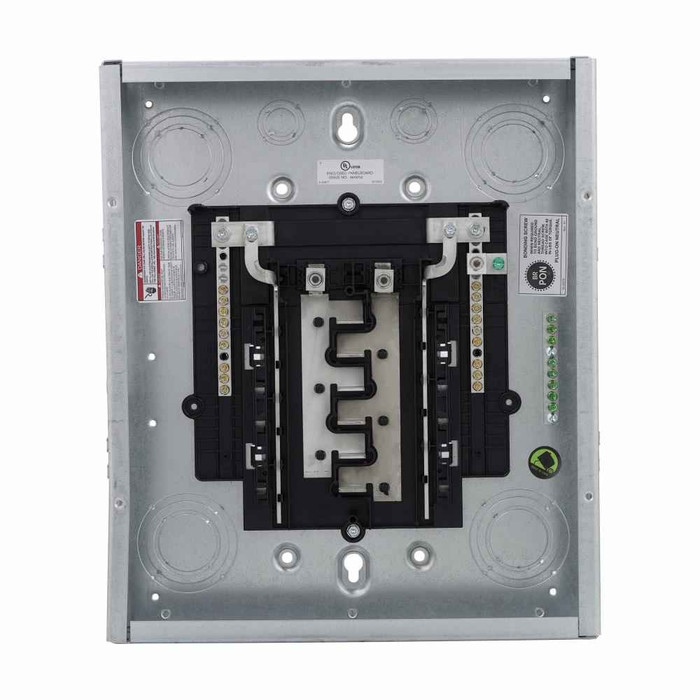

Eaton Main Lug Loadcenter 125A Single-Phase 24-Circuit 12-Space BR Series NEMA 1

Eaton Main Lug Loadcenter 125A Single-Phase 24-Circuit 12-Space BR Series NEMA 1

Professional Electrical Distribution Panel for Residential and Commercial Applications

The Eaton Main Lug Loadcenter delivers exceptional electrical power distribution performance for residential and commercial electrical systems. This 125A single-phase loadcenter provides reliable electrical distribution designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Distribution Performance

• 125A Main Lug Configuration - Provides reliable main electrical connection with aluminum bus construction for excellent conductivity and corrosion resistance
• 24-Circuit Capacity with 12 Spaces - Accommodates up to 24 Type BR 1-inch circuit breakers in a compact 12-space configuration for maximum circuit density
• Single-Phase 120/240V Rating - Designed for standard residential and light commercial electrical distribution systems with dual voltage capability
• 10 kAIC Interrupt Rating - Provides robust short-circuit protection for reliable electrical system safety and performance

Professional Installation & Protection

• Surface or Flush Mount Flexibility - Versatile mounting options accommodate various installation requirements and space constraints
• NEMA 1 Metallic Enclosure - Durable metallic construction provides excellent protection for indoor electrical distribution applications
• Ground Bar Included - Complete grounding system with dedicated ground bar for proper electrical safety and code compliance

Technical Specifications

Amperage Rating: 125A, Voltage Rating: Single-Phase 120/240V, Number of Circuits: 24, Number of Spaces: 12, Interrupt Rating: 10 kAIC, Bus Material: Aluminum, Wire Size: #6-2/0 AWG Cu/Al, Enclosure: NEMA 1 Metallic, Mounting: Surface or Flush, Main Circuit Breaker: BR2125, Used With: Type BR 1-inch breakers, Dimensions: 16.75" L x 14.31" W x 3.88" H, Weight: 16.1 lbs, Certifications: UL 67, Number of Wires: Two hots, neutral and ground

Installation & Usage

1. Select appropriate mounting location ensuring adequate clearance and accessibility per NEC requirements
2. Secure loadcenter to mounting surface using surface or flush mount configuration as needed
3. Connect main electrical feed wires to main lug terminals using proper torque specifications
4. Install Type BR circuit breakers in designated spaces according to circuit requirements
5. Connect branch circuit wiring to individual circuit breakers following proper wire management practices
6. Complete grounding connections to dedicated ground bar and verify all connections are secure

Professional Applications

Ideal for:

• Residential Electrical Systems - Main electrical distribution for homes, apartments, and residential buildings requiring reliable power distribution
• Commercial Electrical Applications - Light commercial facilities, offices, retail spaces, and small business electrical distribution systems
• Electrical Panel Upgrades - Replacement and upgrade projects for existing electrical distribution systems requiring increased circuit capacity
• New Construction Projects - Primary electrical distribution for new residential and commercial construction requiring code-compliant loadcenters
• Electrical Contractor Applications - Professional installations requiring reliable BR series compatibility and proven Eaton quality
• Facility Electrical Distribution - Building electrical systems requiring organized circuit distribution with expansion capability
• Code Compliance Projects - Electrical installations requiring UL 67 listed equipment for inspection approval and safety compliance
• Electrical Safety Systems - Applications requiring proper grounding, circuit protection, and electrical distribution safety features

BR Series Advantage

The BR series loadcenter design provides exceptional compatibility with Type BR 1-inch circuit breakers, offering electricians and contractors a complete electrical distribution solution. The aluminum bus construction delivers excellent electrical conductivity while the NEMA 1 metallic enclosure provides durable protection for indoor electrical applications, making this loadcenter ideal for professional electrical installations requiring reliable performance and code compliance.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation ensures this loadcenter meets the highest standards for electrical safety and reliability. With UL 67 certification and trusted performance for electricians, electrical contractors, and facility professionals worldwide, Eaton continues to lead in electrical distribution technology and professional-grade electrical equipment that delivers dependable service for residential and commercial applications.
