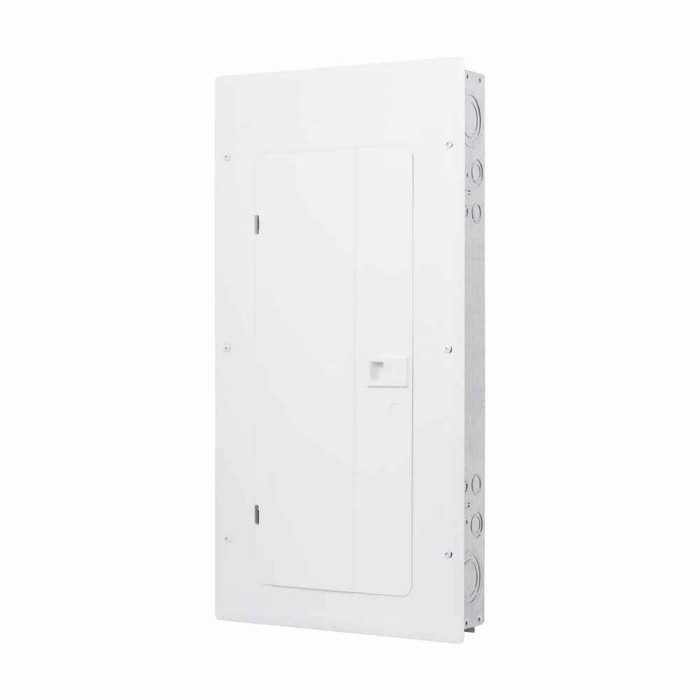

Eaton Main Lug Loadcenter 200A 30-Space 60-Circuit Single-Phase 120/240V NEMA 3R BR Series
Professional Electrical Distribution Panel for Residential and Commercial Applications
The Eaton Main Lug Loadcenter delivers exceptional electrical power distribution performance for residential and commercial electrical systems. This 200A single-phase loadcenter provides reliable electrical distribution designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.
Professional Features & Benefits
Electrical Distribution Performance
- 200A Main Lug Design - High-capacity electrical distribution with main lug only configuration for flexible upstream protection options
- 30 Spaces, 60 Circuits - Accommodates up to 60 single-pole circuits in 30 spaces for comprehensive electrical distribution
- 120/240V Single-Phase - Standard residential and light commercial voltage rating for versatile electrical applications
- 10 kAIC Interrupt Rating - Reliable short-circuit protection capability for safe electrical operation
Weather Protection & Installation
- NEMA 3R Enclosure - Weather-resistant metallic enclosure provides protection against rain, sleet, and ice formation for outdoor installations
- Aluminum Bus Construction - Durable aluminum bus material ensures reliable electrical conductivity and corrosion resistance
- Type BR 1-Inch Breaker Compatibility - Designed for use with Eaton Type BR 1-inch circuit breakers for consistent electrical protection
Professional Construction
- UL 50 Certified - Meets rigorous safety standards for electrical enclosures and professional installation requirements
- Three-Wire Configuration - Standard three-wire electrical system compatibility for residential and commercial applications
Technical Specifications
Amperage Rating: 200A, Voltage Rating: 120/240V, Phase: Single-phase, Number of Spaces: 30, Number of Circuits: 60, Interrupt Rating: 10 kAIC, Enclosure: NEMA 3R, Enclosure Material: Metallic, Bus Material: Aluminum, Number of Wires: 3, Wire Size: #1-300 kcmil, Used With: Type BR 1-inch breakers, Dimensions: 29.13" H x 14.31" W x 3.88" D, Weight: 19 lb, Certifications: UL 50, Box Size: X5, Cover: Included
Installation & Usage
- Verify proper electrical service capacity and compatibility with 200A main lug configuration
- Mount loadcenter securely in appropriate location following NEMA 3R outdoor installation requirements
- Connect incoming service conductors to main lug terminals using proper wire size (#1-300 kcmil)
- Install Type BR 1-inch circuit breakers in designated spaces as required for electrical circuits
- Connect branch circuit wiring to circuit breakers following NEC guidelines and local electrical codes
- Complete proper grounding and bonding connections for electrical safety compliance
Professional Applications
Ideal for:
- Residential Electrical Systems - Main electrical distribution for homes requiring 200A service capacity
- Commercial Light Duty Applications - Small commercial buildings and retail spaces with moderate electrical loads
- Outdoor Electrical Installations - NEMA 3R weather protection for exterior electrical distribution requirements
- Service Upgrade Projects - Electrical panel replacements and capacity upgrades for existing buildings
- New Construction - Primary electrical distribution for residential and light commercial new builds
- Multi-Family Housing - Individual unit electrical distribution in apartments and condominiums
- Agricultural Buildings - Farm and agricultural facility electrical distribution with weather protection
- Workshop and Garage Applications - Detached building electrical distribution with outdoor installation capability
BR Series Advantage
The Eaton BR Series represents decades of electrical distribution innovation, providing reliable main lug loadcenter design with aluminum bus construction for optimal electrical conductivity and corrosion resistance. The 30-space, 60-circuit configuration offers maximum flexibility for electrical circuit distribution while maintaining compact installation footprint.
Why Choose Eaton Quality?
With over a century of electrical power management innovation, Eaton delivers the reliability and performance that electrical professionals demand. Our UL 50 certified loadcenters provide the electrical safety standards and dependable operation that electricians, electrical contractors, and facility professionals trust worldwide, backed by comprehensive technical support and proven field performance in demanding electrical applications.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200 A
- Box Size:
- X5
- Bus Material:
- Aluminum
- Certifications:
- UL 50
- Enclosure:
- NEMA 3R
- Enclosure Material:
- Metallic
- Interrupt Rating:
- 10 kAIC
- Main Circuit Breaker:
- BR
- Nema Rating:
- NEMA 3R
- Number Of Circuits:
- 60
- Number Of Poles:
- Single-pole
- Number Of Spaces:
- 30
- Number Of Wires:
- 3
- Phase:
- Single-phase
- Product Height:
- 29.13 in
- Product Length Depth:
- 3.88 in
- Product Type:
- Main Lug Loadcenter
- Product Weight:
- 19 lb
- Product Width:
- 14.31 in
- Used With:
- Type BR 1-inch breakers
- Voltage Rating:
- 120/240V
- Product Group:
- Electrical
- Cover Included:
- Yes
- Department:
- Electrical
