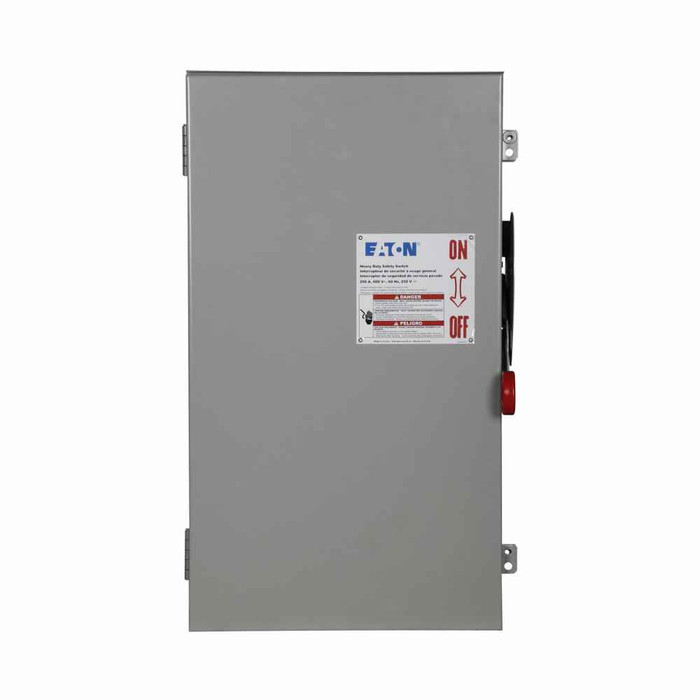

Eaton Safety Switch Enhanced Visible Blade Single-Throw 200A Three-Pole 600V NEMA 3R Fusible Class H

Eaton Enhanced Visible Blade Single-Throw Safety Switch

Professional Heavy Duty Electrical Disconnect Switch

The Eaton Enhanced Visible Blade Single-Throw Safety Switch delivers exceptional electrical power management and control performance for heavy duty industrial and commercial electrical applications. This 200A three-pole safety switch provides reliable electrical isolation and disconnect protection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Heavy Duty Electrical Performance

• 200A Three-Pole Configuration - High amperage capacity with three-pole design for reliable three-phase power distribution and motor control applications
• 600V Voltage Rating - Professional voltage capacity suitable for industrial and commercial electrical systems with enhanced electrical safety
• Enhanced Visible Blade Design - Clear visual indication of switch position for enhanced electrical safety and compliance with electrical codes
• Class H Fuse Provision - Compatible with Class H fuses for reliable overcurrent protection and electrical system coordination

Weather Protection & Installation

• NEMA 3R Enclosure Rating - Weather-resistant protection suitable for outdoor installations with protection against rain, sleet, and ice formation
• Painted Galvanized Steel Construction - Durable enclosure material providing corrosion resistance and long-term reliability in demanding environments
• Fusible Without Neutral Design - Professional fused disconnect configuration for three-wire electrical systems without neutral requirements

Technical Specifications

Amperage Rating: 200A, Voltage Rating: 600V, Number of Poles: Three-pole, Number of Wires: 3, Enclosure: NEMA 3R, Enclosure Material: Painted galvanized steel, Fuse Configuration: Fusible without neutral, Fuse Class Provision: Class H, Maximum Horsepower: 50/125/150 HP (1/3PH @480, 600V), Wire Size: #6-250 kcmil Cu/Al, Product Dimensions: 30" L x 18" W x 9.5" H, Product Weight: 40 lb, Certifications: UL Listed, Suitable for service entrance use with Neutral Kit installed

Installation & Usage

1. Verify electrical system is de-energized and follow proper lockout/tagout procedures before installation
2. Mount safety switch securely using appropriate mounting hardware for NEMA 3R outdoor applications
3. Connect incoming and outgoing conductors to appropriate terminals using #6-250 kcmil Cu/Al wire as specified
4. Install appropriate Class H fuses matching the load requirements and electrical system coordination
5. Verify proper grounding connections and enclosure bonding for electrical safety compliance
6. Test switch operation and verify visible blade indication functions properly before energizing system

Professional Applications

Ideal for:

• Industrial Motor Control - Heavy duty motor disconnect applications up to 150 HP for industrial machinery and equipment
• Commercial Electrical Systems - Three-phase power distribution and electrical isolation for commercial buildings and facilities
• Outdoor Electrical Installations - Weather-resistant NEMA 3R applications requiring reliable electrical disconnect protection
• Service Entrance Applications - Main electrical service disconnect with neutral kit for building electrical service entrance
• Electrical Panel Feeders - Feeder circuit protection and isolation for electrical distribution panels and switchgear
• HVAC Equipment Disconnect - Heavy duty disconnect protection for large commercial HVAC systems and equipment
• Industrial Process Equipment - Electrical isolation and safety disconnect for manufacturing and process control equipment
• Electrical Maintenance Applications - Visible blade design for safe electrical maintenance and service procedures

Enhanced Visible Blade Advantage

The enhanced visible blade design provides clear visual confirmation of switch position, ensuring electrical safety compliance and reducing the risk of electrical accidents during maintenance procedures. This professional feature allows electricians and maintenance personnel to verify the disconnect status without removing enclosure covers, improving workplace safety and electrical code compliance.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation ensures this safety switch delivers the reliability and performance that electrical professionals demand. With UL Listed certification and proven durability in demanding industrial and commercial applications, Eaton safety switches are trusted by electricians, electrical contractors, and facility professionals worldwide for critical electrical protection and power distribution applications.
