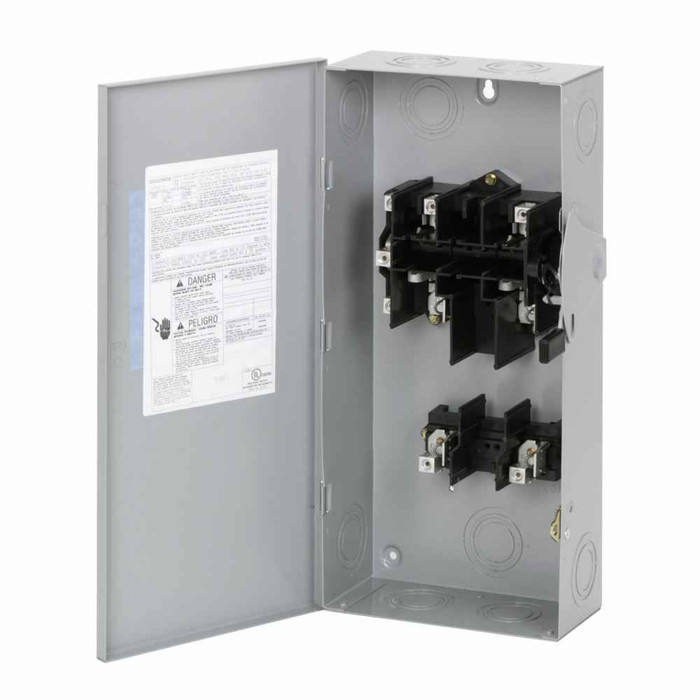

Eaton Safety Switch General Duty Cartridge Fuse 100A Two-Pole 240V NEMA 1 Class H Fusible with Neutral

Eaton Safety Switch General Duty Cartridge Fuse 100A Two-Pole 240V NEMA 1 Class H Fusible with Neutral

Professional Electrical Disconnect and Protection Equipment

The Eaton Safety Switch General Duty Cartridge Fuse delivers exceptional electrical power management and control performance for commercial and industrial electrical isolation applications. This 100A 240V two-pole safety switch provides reliable electrical protection and disconnect capability designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance & Protection

• 100A Current Rating - High-capacity electrical switching and protection for demanding commercial and industrial applications with reliable current handling performance
• 240V Voltage Rating - Professional voltage capacity for single-phase and split-phase electrical systems with dependable voltage isolation
• Two-Pole Configuration - Complete line and neutral switching for comprehensive electrical isolation and enhanced safety protection
• Class H Fuse Compatibility - Standard cartridge fuse protection with proven overcurrent protection and easy fuse replacement for maintenance flexibility

Construction & Installation

• NEMA 1 Enclosure Rating - Indoor general purpose enclosure protection suitable for dry location installations with reliable environmental protection
• Painted Steel Construction - Durable enclosure material providing long-lasting protection and professional appearance for commercial installations
• Fusible with Neutral Design - Complete overcurrent protection for both line and neutral conductors ensuring comprehensive electrical safety

Technical Specifications

Current Rating: 100A, Voltage Rating: 240V, Number of Poles: Two-pole, Number of Wires: Three-wire, Enclosure: NEMA 1, Enclosure Material: Painted steel, Fuse Class: Class H fuses, Configuration: Fusible with neutral, Product Dimensions: 18.81" H x 9.13" W x 7.38" D, Weight: 14 lb, Certifications: UL Listed, Product Category: General duty safety switch

Installation & Usage

1. Verify electrical system compatibility with 100A 240V two-pole requirements and proper circuit protection coordination
2. Mount safety switch in appropriate NEMA 1 rated location ensuring adequate clearance and accessibility for operation
3. Connect incoming and outgoing conductors to designated terminals following NEC requirements and manufacturer specifications
4. Install appropriate Class H cartridge fuses matching the load requirements and electrical system protection coordination
5. Test switch operation and verify proper fuse installation before energizing the electrical circuit
6. Label switch clearly for identification and include in facility electrical documentation and maintenance schedules

Professional Applications

Ideal for:

• Commercial Electrical Systems - Office buildings, retail facilities, and commercial installations requiring reliable electrical disconnect and overcurrent protection
• Industrial Power Distribution - Manufacturing facilities, warehouses, and industrial plants needing robust electrical isolation and fuse protection
• HVAC Equipment Disconnect - Air conditioning units, heating systems, and ventilation equipment requiring dedicated electrical disconnect switches
• Motor Control Applications - Electric motors, pumps, and mechanical equipment needing reliable electrical isolation and overcurrent protection
• Electrical Panel Feeder Protection - Distribution panels, sub-panels, and electrical feeders requiring upstream disconnect and fuse protection
• Maintenance Disconnect Service - Equipment servicing, electrical maintenance, and safety lockout applications requiring visible electrical isolation
• Code Compliance Installations - NEC required disconnect switches for electrical equipment and machinery installations
• Electrical Safety Systems - Emergency disconnect, electrical isolation, and safety switching for commercial and industrial facilities

General Duty Design Advantage

Eaton's general duty safety switch design provides reliable electrical disconnect and fuse protection for standard commercial and light industrial applications. The painted steel NEMA 1 enclosure offers dependable protection in dry indoor environments, while the Class H fuse compatibility ensures standard overcurrent protection with easy maintenance access. The fusible with neutral configuration provides comprehensive protection for both line and neutral conductors, enhancing electrical safety and system reliability.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers the quality, reliability, and safety that electrical professionals demand. This UL Listed safety switch represents Eaton's commitment to electrical safety standards and dependable performance, trusted by electricians, electrical contractors, and facility professionals worldwide for critical electrical disconnect and protection applications in commercial and industrial power systems.
