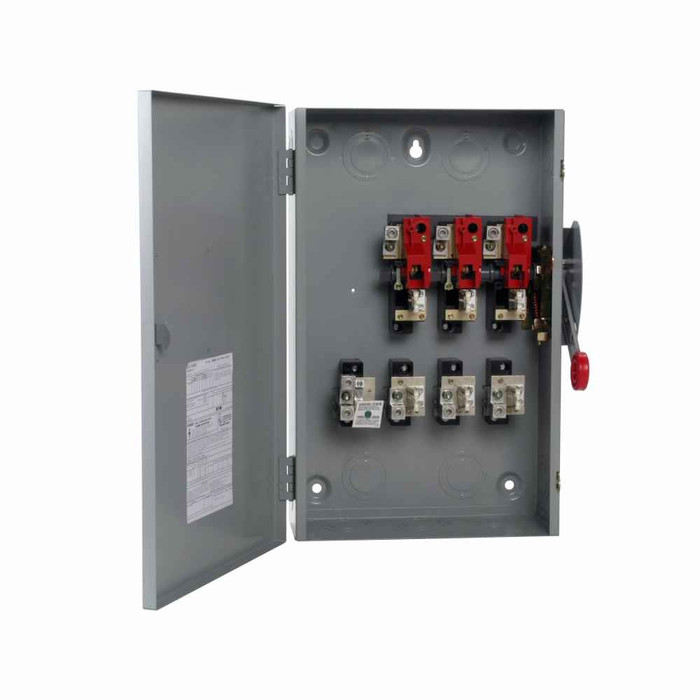

Eaton Safety Switch General Duty 200A Three-Pole 240V NEMA 1 Fusible with Neutral Class H

Eaton General Duty Safety Switch 200A Three-Pole 240V NEMA 1

Professional Electrical Disconnect and Protection Equipment

The Eaton General Duty Safety Switch delivers exceptional electrical power management and control performance for commercial and industrial electrical disconnect applications. This 200A three-pole safety switch provides reliable electrical protection and isolation designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance & Protection

• 200A Current Rating - High-capacity electrical switching for demanding commercial and industrial power distribution systems
• 240V Voltage Rating - Optimized for standard commercial electrical systems with reliable voltage handling capability
• Three-Pole Configuration - Complete three-phase electrical isolation and switching for balanced power distribution
• Class H Fuse Compatibility - Accepts standard Class H cartridge fuses for flexible overcurrent protection options

Construction & Installation

• NEMA 1 Enclosure Rating - Indoor general purpose enclosure protection suitable for dry location installations
• Painted Steel Construction - Durable enclosure material providing long-lasting protection and professional appearance
• Fusible with Neutral Design - Four-wire configuration with neutral provision for complete electrical system compatibility

Technical Specifications

Current Rating: 200A, Voltage Rating: 240V, Pole Configuration: Three-pole, Wire Configuration: Four-wire, Enclosure: NEMA 1, Enclosure Material: Painted steel, Fuse Class: Class H fuses, Configuration: Fusible with neutral, Dimensions: 16" W x 24.75" H x 11.25" D, Weight: 48 lb, Certifications: UL Listed, Product Category: General duty safety switch

Installation & Usage

1. Verify electrical system compatibility with 200A three-pole 240V requirements and proper electrical codes
2. Mount safety switch in appropriate NEMA 1 rated dry location with adequate clearance for operation
3. Connect incoming and outgoing conductors to designated line and load terminals following NEC guidelines
4. Install appropriate Class H cartridge fuses matching the protected circuit requirements
5. Connect neutral conductor to designated neutral terminal for four-wire system compatibility
6. Test switch operation and verify proper electrical isolation before energizing the system

Professional Applications

Ideal for:

• Commercial Electrical Systems - Main disconnects and feeder protection for office buildings, retail facilities, and commercial properties
• Industrial Power Distribution - Equipment isolation and maintenance disconnects for manufacturing and processing facilities
• Motor Control Applications - Disconnect switches for large motor installations and industrial machinery
• Electrical Panel Protection - Service entrance disconnects and distribution panel isolation switches
• HVAC System Control - Disconnect switches for commercial heating, ventilation, and air conditioning equipment
• Lighting Control Systems - High-capacity switching for commercial and industrial lighting circuits
• Maintenance and Service - Safe electrical isolation for equipment maintenance and electrical service work
• Code Compliance Applications - NEC-compliant disconnect switches for electrical safety and inspection requirements

General Duty Design Advantage

Eaton's general duty safety switch design provides reliable electrical switching and isolation with Class H fuse compatibility for flexible overcurrent protection. The fusible with neutral configuration ensures complete electrical system compatibility while the NEMA 1 enclosure provides appropriate protection for indoor dry location installations.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers the quality construction and dependable performance that electrical professionals trust. This UL Listed safety switch represents Eaton's commitment to electrical safety standards and reliable power distribution solutions, backed by comprehensive engineering expertise and trusted performance for electricians, electrical contractors, and facility professionals worldwide.
