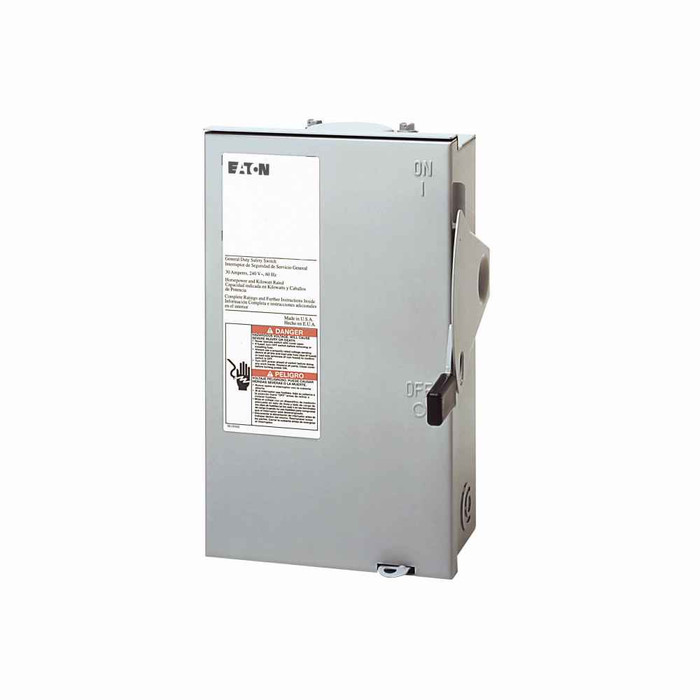

Eaton Safety Switch General Duty Non-Fusible 30A 240V Two-Pole Single-Throw NEMA 3R

Eaton Safety Switch General Duty Non-Fusible 30A 240V Two-Pole Single-Throw NEMA 3R

Professional Electrical Disconnect Switch for Power Isolation

The Eaton Safety Switch General Duty Non-Fusible delivers exceptional electrical power isolation and control performance for commercial and industrial applications. This 30A 240V two-pole single-throw safety switch provides reliable electrical disconnect protection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance & Protection

• 30 Ampere Rating - Provides reliable current handling capacity for medium-duty electrical loads and motor control applications
• 240 Volt Rating - Designed for single-phase and split-phase electrical systems with professional voltage handling
• Two-Pole Configuration - Ensures complete line isolation with simultaneous disconnection of both hot conductors
• Single-Throw Operation - Simple and reliable switching mechanism for positive electrical isolation and reconnection

Weather Protection & Durability

• NEMA 3R Rainproof Enclosure - Provides superior protection against rain, sleet, and outdoor weather conditions for exterior installations
• Painted Galvanized Steel Construction - Delivers exceptional corrosion resistance and long-term durability in harsh environments
• General Duty Design - Engineered for reliable performance in standard commercial and light industrial applications

Installation & Safety

• Non-Fusible Design - Eliminates fuse replacement maintenance while providing reliable disconnect functionality
• UL Listed Certification - Meets rigorous electrical safety standards for professional installation confidence

Technical Specifications

Amperage Rating: 30A, Voltage Rating: 240V, Number of Poles: Two-pole, Configuration: Single-throw, Enclosure: NEMA 3R Rainproof, Enclosure Material: Painted galvanized steel, Number of Wires: 2, Fuse Configuration: Non-fusible, Product Category: General duty safety switch, Dimensions: 10.81" H x 6.38" W x 6.88" D, Weight: 6 lb, Certifications: UL Listed

Installation & Usage

1. Verify electrical power is completely disconnected and locked out before beginning installation procedures
2. Mount safety switch securely to appropriate electrical enclosure or mounting surface using proper hardware
3. Connect incoming line conductors to line terminals following NEC wiring methods and local electrical codes
4. Connect outgoing load conductors to load terminals ensuring proper wire sizing and termination torque
5. Verify all electrical connections are tight and properly insulated before energizing the circuit
6. Test switch operation through complete on-off cycle to ensure proper mechanical and electrical function

Professional Applications

Ideal for:

• Motor Control Centers - Provides reliable disconnect protection for motor starters and variable frequency drives
• HVAC Equipment - Essential safety disconnect for air conditioning units, heat pumps, and ventilation systems
• Commercial Lighting - Reliable switching and isolation for exterior lighting systems and sign illumination
• Industrial Machinery - Safety disconnect for production equipment, conveyor systems, and manufacturing tools
• Pump Stations - Critical isolation switch for water pumps, sump pumps, and irrigation control systems
• Outdoor Equipment - Weather-resistant disconnect for pool equipment, landscape lighting, and exterior electrical loads
• Electrical Panels - Service disconnect for sub-panels, distribution boards, and electrical control cabinets
• Maintenance Applications - Lockout/tagout compliance for safe electrical maintenance and service procedures

NEMA 3R Weather Protection Advantage

The NEMA 3R rainproof enclosure provides superior protection against outdoor weather conditions including rain, sleet, and wind-driven precipitation. The painted galvanized steel construction ensures long-term corrosion resistance and structural integrity, making this safety switch ideal for exterior installations where reliable weather protection is essential for electrical safety and equipment longevity.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation ensures this safety switch delivers the reliability and performance that electrical professionals demand. With comprehensive UL listing, proven durability in demanding applications, and trusted performance for electricians, electrical contractors, and facility professionals worldwide, Eaton continues to lead in electrical safety and power distribution solutions.
