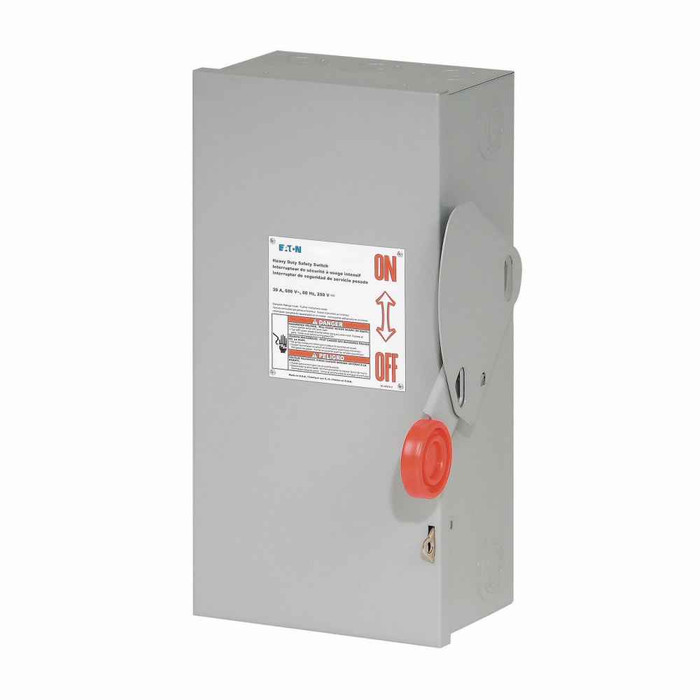

Eaton Heavy Duty Safety Switch Single-Throw Fused 30A Three-Pole 600V NEMA 1 Class H

Eaton Heavy Duty Safety Switch Single-Throw Fused 30A Three-Pole 600V NEMA 1 Class H

Professional Heavy Duty Electrical Disconnect Switch

The Eaton Heavy Duty Safety Switch delivers exceptional electrical power management and control performance for commercial and industrial electrical isolation applications. This 30A three-pole single-throw fused safety switch provides reliable electrical protection and power disconnection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Heavy Duty Electrical Performance

• 30A Three-Pole Configuration - Provides reliable electrical disconnection with 600V rating for commercial and industrial power distribution systems
• Class H Fuse Provision - Accommodates standard Class H fuses for overcurrent protection and electrical safety compliance
• Fusible with Neutral Design - Four-wire configuration with neutral provision for complete electrical system protection and grounding
• Single-Throw Operation - Simple and reliable switching mechanism for positive electrical isolation and maintenance safety

Professional Installation & Protection

• NEMA 1 Enclosure Rating - Indoor general purpose enclosure with painted steel construction for durability and professional appearance
• Wire Size Compatibility - Accommodates #14-2 AWG Cu/Al conductors for flexible installation options and electrical connections
• UL Listed Certification - Meets rigorous electrical safety standards for professional electrical installations and code compliance

Technical Specifications

Amperage Rating: 30A, Voltage Rating: 600V, Number of Poles: Three-pole, Number of Wires: Four-wire, Enclosure: NEMA 1, Enclosure Material: Painted steel, Fuse Configuration: Fusible with neutral, Fuse Class Provision: Class H, Wire Size: #14-2 AWG Cu/Al, Maximum HP Rating: 7.5, 10/15/20 HP (1/3PH @480, 600V), Dimensions: 16.5" L x 9.5" W x 8.5" H, Weight: 20 lb, Certifications: UL Listed

Installation & Usage

1. Verify electrical power is disconnected and locked out before beginning installation procedures
2. Mount safety switch securely to appropriate electrical enclosure or mounting surface following NEMA 1 requirements
3. Connect incoming and outgoing conductors to designated terminals using proper torque specifications for #14-2 AWG Cu/Al wire
4. Install appropriate Class H fuses in fuse holders according to load requirements and electrical protection needs
5. Verify proper neutral connection and grounding for four-wire electrical system safety
6. Test switch operation and electrical continuity before energizing the circuit and placing into service

Professional Applications

Ideal for:

• Commercial Electrical Systems - Office buildings, retail facilities, and commercial power distribution requiring reliable electrical disconnection
• Industrial Power Control - Manufacturing facilities, processing plants, and industrial equipment requiring heavy duty electrical isolation
• Motor Control Applications - Three-phase motor disconnection and protection up to 20 HP at 480V/600V systems
• Electrical Panel Disconnects - Main and feeder disconnection for electrical panels and distribution equipment
• Equipment Isolation - Machinery and equipment disconnection for maintenance and electrical safety procedures
• HVAC System Control - Air conditioning, heating, and ventilation equipment electrical disconnection and protection
• Electrical Maintenance Safety - Lockout/tagout procedures and electrical worker safety in commercial and industrial facilities
• Code Compliance Applications - NEC and local electrical code requirements for electrical disconnection and overcurrent protection

Heavy Duty Construction Advantage

The heavy duty design provides superior electrical performance and durability for demanding commercial and industrial applications. The painted steel NEMA 1 enclosure offers excellent protection against environmental factors while maintaining professional appearance. The single-throw fused configuration with neutral provision ensures complete electrical isolation and overcurrent protection for enhanced electrical safety and system reliability.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation ensures this heavy duty safety switch delivers the reliability and performance that electrical professionals demand. With UL Listed certification and proven electrical safety standards, this safety switch provides the trusted performance for electricians, electrical contractors, and facility professionals worldwide who require dependable electrical disconnection and protection solutions.
