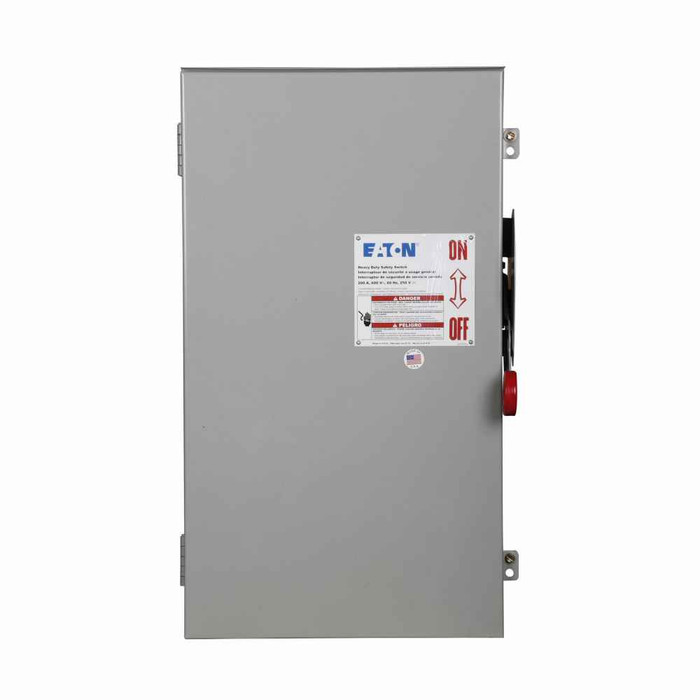

Eaton Heavy Duty Safety Switch Non-Fused Single-Throw 200A Three-Pole 600V NEMA 3R
Professional Heavy Duty Non-Fusible Disconnect Switch
The Eaton Heavy Duty Safety Switch delivers exceptional electrical power isolation and control performance for commercial and industrial applications. This 200A three-pole non-fusible disconnect switch provides reliable electrical isolation designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.
Professional Features & Benefits
Heavy Duty Electrical Performance
- 200A Three-Pole Configuration - High-capacity electrical isolation with three-pole switching for reliable power control and electrical safety
- 600V Voltage Rating - Professional voltage capacity suitable for commercial and industrial electrical systems with superior electrical performance
- Non-Fusible Design - Single-throw disconnect operation without fuse requirements, providing clean electrical isolation and simplified maintenance
- Heavy Duty Construction - Robust electrical switching mechanism designed for frequent operation and long-term reliability in demanding applications
Weather Protection & Installation
- NEMA 3R Enclosure Rating - Weather-resistant protection against rain, sleet, and ice formation for outdoor electrical installations
- Painted Galvanized Steel Construction - Corrosion-resistant enclosure material providing durability and professional appearance in harsh environments
- Service Entrance Suitable - Approved for service entrance applications when equipped with proper neutral or ground lug kit installation
Technical Specifications
Amperage Rating: 200A, Voltage Rating: 600V, Number of Poles: Three-pole, Number of Wires: 3, Enclosure: NEMA 3R, Enclosure Material: Painted galvanized steel, Configuration: Non-fusible single-throw, Horsepower Ratings: 15HP at 240V 1-Phase, 50HP at 480V 1-Phase, 50HP at 600V 1-Phase, 60HP at 240V 3-Phase, 125HP at 480V 3-Phase, 150HP at 600V 3-Phase, 40HP at 250V DC, Dimensions: 16" W x 11.25" D x 6" H, Weight: 35 lbs, Certifications: UL Listed, Utility Approvals: Public Service Company of New Mexico (PNM)
Installation & Usage
- Verify electrical system is de-energized and follow proper lockout/tagout procedures before installation
- Mount safety switch securely to appropriate electrical enclosure or mounting surface using proper hardware
- Connect incoming power lines to line terminals following NEC requirements and local electrical codes
- Connect load-side conductors to load terminals ensuring proper torque specifications are met
- Install appropriate neutral or ground lug kit if required for service entrance applications
- Verify all electrical connections are secure and properly torqued before energizing the system
Professional Applications
Ideal for:
- Commercial Electrical Systems - Office buildings, retail facilities, and commercial properties requiring reliable electrical isolation
- Industrial Power Distribution - Manufacturing facilities, processing plants, and industrial equipment disconnect applications
- Service Entrance Applications - Main electrical service disconnects for commercial and industrial facilities
- Motor Control Centers - Disconnect switches for large motor and equipment control applications
- Electrical Maintenance Systems - Safe electrical isolation for maintenance and service operations
- Outdoor Electrical Installations - Weather-protected electrical switching in exposed outdoor environments
- Heavy Equipment Disconnects - High-amperage electrical isolation for industrial machinery and equipment
- Electrical Safety Systems - Emergency disconnect and electrical isolation for safety compliance
Heavy Duty Design Advantage
Eaton's heavy duty safety switch design provides superior electrical performance with robust switching mechanisms engineered for frequent operation and long service life. The non-fusible configuration eliminates fuse replacement requirements while maintaining reliable electrical isolation, and the painted galvanized steel enclosure offers exceptional corrosion resistance and durability in challenging environmental conditions.
Why Choose Eaton Quality?
With over a century of electrical power management innovation, Eaton delivers the quality, reliability, and safety that electrical professionals demand. Our UL Listed safety switches meet the highest industry standards and are trusted by electricians, electrical contractors, and facility professionals worldwide for critical electrical isolation and power control applications, backed by comprehensive utility approvals and proven performance in demanding commercial and industrial environments.
EAT-DH364URK - spec sheet
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200A
- Catalog Notes:
- Suitable for service entrance use with a neutral or ground lug kit installed
- Certifications:
- UL Listed
- Enclosure:
- NEMA 3R
- Enclosure Material:
- Painted galvanized steel
- Fuse Configuration:
- Non-fusible
- Hp Rating Max:
- 15 at 240 Vac TD 1 Ph, 50 at 480 Vac TD 1 Ph, 50 at 600 Vac TD 1 Ph, 60 at 240 Vac TD 3 Ph, 125 at 480 Vac TD 3 Ph, 150 at 600 Vac TD 3 Ph, 40 at 250 Vdc
- Number Of Poles:
- Three-pole
- Number Of Wires:
- 3
- Product Category:
- Heavy Duty, Non-Fusible
- Product Height:
- 6 in
- Product Length Depth:
- 11.25 in
- Product Type:
- Safety Switch
- Product Weight:
- 35 lb
- Product Width:
- 16 in
- Utility Approvals:
- NM : Public Service Company of New Mexico (PNM)
- Voltage Rating:
- 600 V
- Product Group:
- Electrical
- Department:
- Electrical
