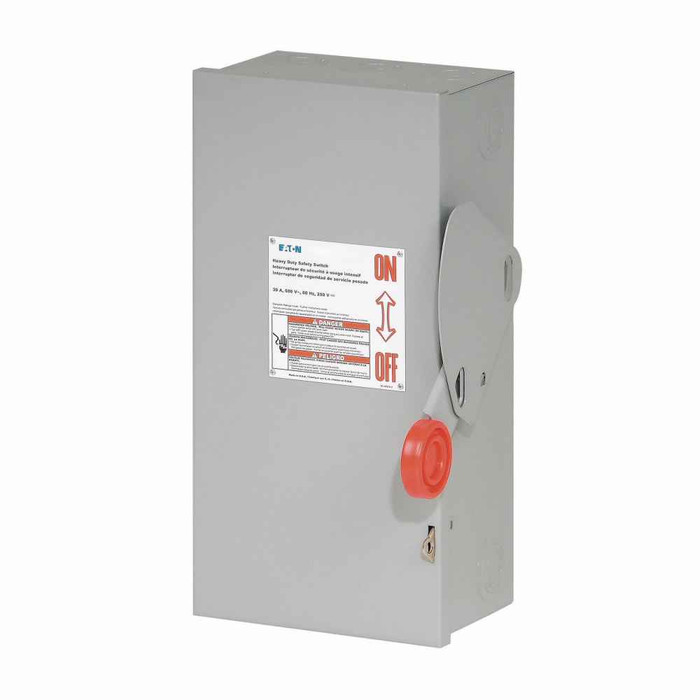

Eaton Heavy Duty Safety Switch Non-Fused Single-Throw 30A Three-Pole 600V NEMA 1
Professional Electrical Disconnect Switch for Power Isolation and Control
The Eaton Heavy Duty Safety Switch delivers exceptional electrical power isolation and control performance for commercial and industrial applications. This 30A three-pole non-fused safety switch provides reliable electrical disconnection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.
Professional Features & Benefits
Electrical Performance & Protection
- 30A Current Rating - Handles substantial electrical loads with reliable switching capacity for commercial and industrial power distribution systems
- 600V Maximum Voltage Rating - Accommodates high voltage applications including 480V three-phase and 600V single-phase systems with professional-grade electrical isolation
- Three-Pole Configuration - Provides simultaneous disconnection of all three phases for complete electrical isolation and enhanced safety in three-phase power systems
- Non-Fused Design - Offers clean switching operation without fuse replacement requirements, reducing maintenance costs and providing reliable disconnect functionality
Heavy Duty Construction & Installation
- NEMA 1 Enclosure Rating - Indoor general purpose enclosure provides protection against accidental contact with live parts in dry locations
- Painted Steel Construction - Durable enclosure material offers long-lasting protection and professional appearance for commercial installations
- Single-Throw Operation - Simple on-off switching mechanism provides reliable electrical disconnection with positive indication of switch position
Versatile Load Compatibility
- Multi-Voltage Capability - Handles 7.5HP at 480V single-phase, 10HP at 600V single-phase, 10HP at 240V three-phase, and 20HP at 480V three-phase applications
- Service Entrance Suitable - Approved for service entrance use when equipped with appropriate neutral or ground lug kit for main disconnect applications
Technical Specifications
Current Rating: 30A, Voltage Rating: 600V maximum, Pole Configuration: Three-pole, Enclosure: NEMA 1, Construction: Painted steel, Switch Type: Single-throw non-fused, Wire Configuration: Three-wire, Horsepower Ratings: 7.5HP at 480V TD 1-Phase, 10HP at 600V TD 1-Phase, 10HP at 240V TD 3-Phase, 20HP at 480V TD 3-Phase, 30HP at 600V TD 3-Phase, 5HP at 250V DC, Dimensions: 14.14" H x 8.76" W x 10.22" D, Weight: 17 lbs, Certifications: UL Listed
Installation & Usage
- Verify power is completely de-energized and locked out before beginning installation procedures
- Mount safety switch securely to appropriate surface using proper mounting hardware and methods
- Connect incoming power lines to line terminals following NEC requirements and local electrical codes
- Connect load conductors to load terminals ensuring proper torque specifications are met
- Install appropriate neutral or ground lug kit if using for service entrance applications
- Verify all connections are secure and properly torqued before energizing the circuit
- Test switch operation to ensure proper on-off functionality and positive position indication
Professional Applications
Ideal for:
- Commercial Power Distribution - Main disconnects and feeder isolation in office buildings, retail facilities, and commercial establishments
- Industrial Motor Control - Disconnect switches for motor control centers, machinery isolation, and equipment maintenance shutdowns
- Service Entrance Applications - Main electrical service disconnects when equipped with appropriate neutral or ground lug kits
- HVAC System Control - Disconnect switches for air conditioning units, heating systems, and ventilation equipment up to 30HP
- Electrical Panel Isolation - Upstream disconnects for electrical panels, load centers, and distribution equipment
- Maintenance Disconnects - Safety isolation switches for equipment maintenance and electrical system servicing
- Three-Phase Power Systems - Reliable disconnection for 240V, 480V, and 600V three-phase electrical installations
- Emergency Disconnect Applications - Quick electrical isolation for emergency shutdown procedures and safety protocols
Heavy Duty Design Advantage
Eaton's heavy duty safety switch construction provides superior electrical performance and mechanical durability for demanding commercial and industrial applications. The robust painted steel enclosure and precision-engineered switching mechanism deliver reliable operation under continuous use conditions, while the NEMA 1 rating ensures appropriate protection for indoor installations requiring professional-grade electrical isolation equipment.
Why Choose Eaton Quality?
With over a century of electrical power management innovation, Eaton delivers the reliability and performance that electrical professionals demand. Our UL Listed safety switches meet the highest industry standards for electrical safety and dependability, providing electricians, electrical contractors, and facility managers with the trusted quality and advanced engineering that has made Eaton the global leader in intelligent power management solutions for commercial, industrial, and residential applications worldwide.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 30A
- Catalog Notes:
- Suitable for service entrance use with a neutral or ground lug kit installed
- Certifications:
- UL Listed
- Enclosure:
- NEMA 1
- Enclosure Material:
- Painted steel
- Fuse Configuration:
- Non-fusible
- Hp Rating Max:
- 7.5 at 480 Vac TD 1 Ph, 10 at 600 Vac TD 1 Ph, 10 at 240 Vac TD 3 Ph, 20 at 480 Vac TD 3 Ph, 30 at 600 Vac TD 3 Ph, 5 at 250 Vdc
- Number Of Poles:
- Three-pole
- Number Of Wires:
- 3
- Product Category:
- Heavy Duty, Non-Fusible
- Product Height:
- 14.14 in
- Product Length Depth:
- 10.22 in
- Product Type:
- Safety Switch
- Product Weight:
- 17 lb
- Product Width:
- 8.76 in
- Voltage Rating:
- 600 V
- Product Group:
- Electrical
