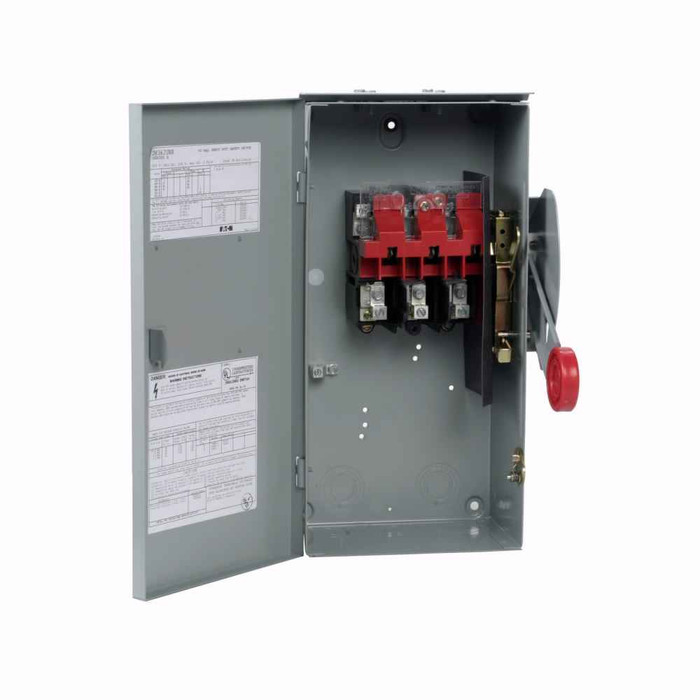

Eaton Safety Switch Heavy Duty Single-Throw Non-Fused 60A Three-Pole NEMA 3R 600V

Eaton Safety Switch Heavy Duty Single-Throw Non-Fused 60A Three-Pole NEMA 3R 600V

Professional Heavy Duty Non-Fusible Electrical Disconnect Switch

The Eaton Heavy Duty Safety Switch delivers exceptional electrical power isolation and control performance for commercial and industrial electrical systems. This 60A three-pole non-fusible safety switch provides reliable electrical disconnection and protection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Heavy Duty Electrical Performance

• 60 Ampere Rating - Robust current handling capacity for demanding commercial and industrial electrical applications with reliable power switching performance
• Three-Pole Configuration - Complete three-phase electrical isolation with simultaneous disconnection of all power conductors for enhanced electrical safety
• 600V Voltage Rating - High voltage capacity suitable for industrial electrical systems and commercial power distribution applications
• Non-Fusible Design - Clean switching operation without fuse replacement requirements, reducing maintenance costs and downtime

Weather Protection & Installation

• NEMA 3R Enclosure Rating - Weather-resistant protection against rain, sleet, and ice formation for outdoor electrical installations
• Painted Galvanized Steel Construction - Corrosion-resistant enclosure material providing long-term durability in harsh environmental conditions
• Single-Throw Operation - Simple on/off switching mechanism for reliable electrical isolation and maintenance safety procedures

Technical Specifications

Amperage Rating: 60A, Voltage Rating: 600V, Number of Poles: Three-pole, Enclosure: NEMA 3R, Enclosure Material: Painted galvanized steel, Configuration: Single-throw non-fusible, Number of Wires: 3, Horsepower Ratings: 10HP at 240V TD 1-Phase, 20HP at 480V TD 1-Phase, 25HP at 600V TD 1-Phase, 20HP at 240V TD 3-Phase, 50HP at 480V TD 3-Phase, 60HP at 600V TD 3-Phase, 10HP at 250V DC, Dimensions: 16.5" L x 9.5" W x 8.5" H, Weight: 16 lbs, Certifications: UL Listed, Service Entrance: Suitable for service entrance use with neutral or ground lug kit installed

Installation & Usage

1. Verify electrical system is de-energized and follow proper lockout/tagout procedures before installation
2. Mount safety switch securely to appropriate electrical enclosure or mounting surface using proper hardware
3. Connect incoming power conductors to line terminals following NEC wiring requirements and local electrical codes
4. Connect outgoing load conductors to load terminals ensuring proper torque specifications are met
5. Install neutral or ground lug kit if required for service entrance applications
6. Test switch operation and verify proper electrical isolation before energizing the system

Professional Applications

Ideal for:

• Industrial Power Distribution - Motor control centers, machinery disconnects, and industrial electrical panel isolation
• Commercial Electrical Systems - HVAC equipment disconnects, lighting panel isolation, and commercial building power distribution
• Service Entrance Applications - Main electrical service disconnects and utility meter installations with proper lug kits
• Outdoor Electrical Installations - Weather-exposed equipment disconnects and exterior electrical system isolation
• Motor Control Applications - Large motor disconnects for industrial equipment and commercial HVAC systems
• Maintenance Safety Systems - Equipment isolation for safe electrical maintenance and repair procedures
• Emergency Disconnect Systems - Quick electrical isolation for emergency shutdown and safety protocols
• Electrical Panel Protection - Upstream disconnection for electrical panel maintenance and component replacement

Heavy Duty Construction Advantage

Eaton's heavy duty safety switch design provides superior electrical performance with robust painted galvanized steel construction that withstands harsh environmental conditions. The NEMA 3R rating ensures reliable operation in outdoor installations while the non-fusible design eliminates fuse replacement costs and maintenance requirements, making it ideal for critical electrical applications where reliability and durability are essential.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers the proven reliability and advanced engineering that electrical professionals trust worldwide. Our UL Listed safety switches meet the highest electrical safety standards and provide dependable performance for electricians, electrical contractors, and facility managers. From commercial buildings to industrial facilities, Eaton safety switches offer the quality construction and reliable electrical protection that professionals demand for critical power distribution and control applications.
