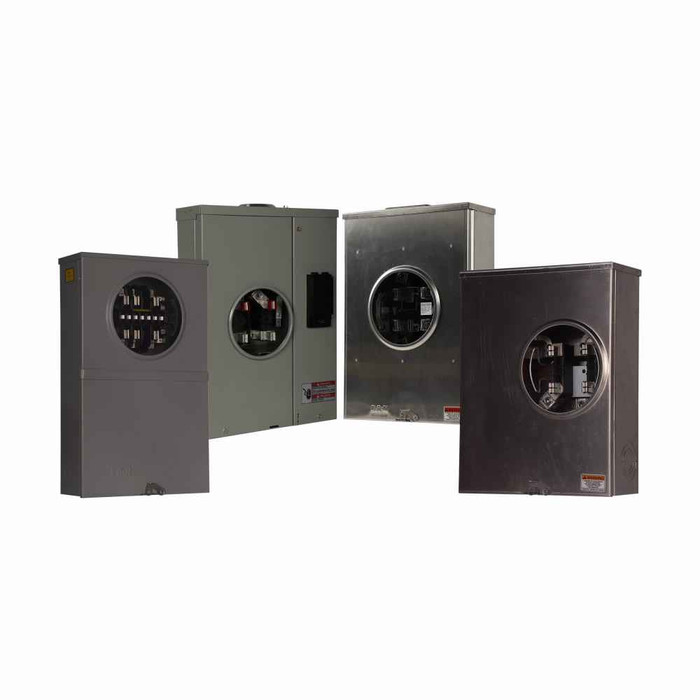

Eaton 200A Single-Phase Meter Socket with Lever Bypass and Barrel Lock - 1-Position Commercial/Residential Service

Eaton 200A Single-Phase Meter Socket with Lever Bypass and Barrel Lock - 1-Position Commercial/Residential Service

Professional metering solution for commercial and residential electrical service applications

The Eaton 200A single-phase meter socket delivers reliable electrical metering for both commercial and residential service installations. This 1-position meter socket features a robust four-jaw design with lever bypass functionality and barrel lock security, engineered for 600V AC applications with #6-350 kcmil conductor compatibility and ringless security configuration.

Professional Features & Benefits

• 200A Service Rating: Handles substantial electrical loads for commercial and residential applications with reliable current capacity.
• Lever Bypass System: Enables safe meter removal and replacement without service interruption for maintenance operations.
• Four-Jaw Configuration: Provides secure meter retention and reliable electrical connections for consistent performance.
• Barrel Lock Security: Prevents unauthorized meter removal while maintaining utility access for legitimate operations.
• Single-Phase Design: Optimized for standard residential and light commercial electrical service requirements.
• UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.
• 600V AC Rating: Engineered for high-voltage applications with comprehensive electrical safety margins.

Technical Specifications

• Accessories: Barrel lock
• Amperage Rating: 200A
• Bypass: Lever
• Certifications: UL Listed
• Department: Electrical
• Feed Type: Top/bottom
• Hub Type: Small opening
• Line: #6-350 kcmil
• Load: #6-350 kcmil
• Number Of Jaws: Four-jaw
• Number Of Sockets: 1
• Number Of Wires: Three-wire
• Phase: Single-phase
• Product Group: Electrical
• Product Height: 19 in
• Product Length Depth: 4.94 in
• Product Type: Meter Socket
• Product Weight: 26 lb
• Product Width: 10.5 in
• Security: Ringless
• Utility Approvals: CT : Eversource (Connecticut Light and Power Co./Nstar/PSC New Hampshire/Western Mass Electric)
• Voltage Rating: 600 V

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Electrical Service
• Residential Service Entrance Applications
• Multi-Unit Property Metering
• Professional Office Buildings
• Retail and Light Commercial Facilities
• Industrial Service Applications
• Utility Metering Infrastructure

Why Choose Eaton Quality?

Eaton meter sockets deliver proven reliability with UL Listed certification and utility approval from major providers including Eversource. The robust construction and professional-grade components ensure long-term performance in demanding electrical service applications, backed by comprehensive safety standards and industry-leading engineering excellence.
