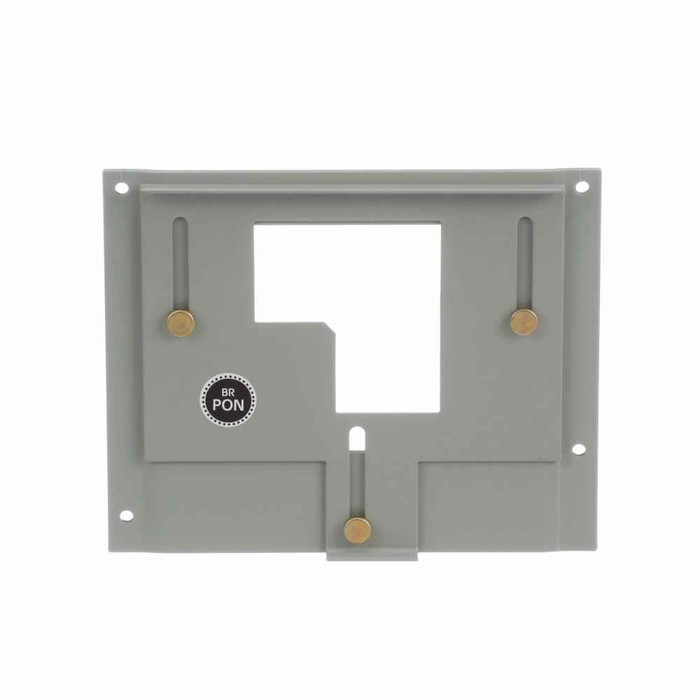

Eaton Interlock Kit Plug-On Neutral Mechanical Backfed 125A BR Series

Eaton Interlock Kit Plug-On Neutral Mechanical Backfed 125A BR Series

Professional Electrical Safety Interlock System

The Eaton Interlock Kit Plug-On Neutral Mechanical Backfed 125A delivers exceptional electrical safety and code compliance for backup power applications. This 125A mechanical interlock system provides reliable electrical isolation designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced safety technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Safety Performance

• 125A Current Rating - Handles substantial electrical loads for residential and commercial backup power systems with reliable current capacity
• Plug-On Neutral Design - Streamlined installation with integrated neutral connection reducing installation time and improving electrical connections
• Mechanical Interlock Operation - Prevents simultaneous connection of utility and generator power sources ensuring electrical safety and code compliance
• Backfed Configuration - Designed specifically for generator backfeed applications providing safe power transfer capabilities

Installation & Protection

• BR Series Compatibility - Engineered for seamless integration with Eaton BR series load centers and electrical panels
• Compact Design - 7.4" x 9.1" x 1.4" dimensions and 1.1 lb weight for space-efficient installation in electrical enclosures
• Professional Construction - Durable materials and precision engineering for long-term electrical safety performance

Technical Specifications

Amperage Rating: 125A, Product Type: Interlock Kit, Series: BR Compatible, Dimensions: 7.4" L x 9.1" W x 1.4" H, Weight: 1.1 lb, Configuration: Plug-On Neutral Mechanical Backfed, Certifications: Contact Manufacturer for specific approvals and compliance information.

Installation & Usage

1. Verify electrical panel compatibility with BR series load centers and confirm proper amperage requirements
2. Turn off main electrical power and follow proper lockout/tagout safety procedures
3. Install mechanical interlock kit according to manufacturer specifications and local electrical codes
4. Connect plug-on neutral components ensuring proper neutral bonding and grounding
5. Test interlock operation to verify proper mechanical function and electrical isolation
6. Complete installation inspection and restore power following proper electrical safety protocols

Professional Applications

Ideal for:

• Residential Backup Power - Home generator installations requiring safe utility and generator power isolation
• Commercial Generator Systems - Small commercial facilities with backup power requirements and electrical safety compliance
• Emergency Power Transfer - Critical applications requiring reliable power source switching and electrical isolation
• Load Center Upgrades - Retrofitting existing BR series panels with generator backup capabilities
• Electrical Code Compliance - Meeting NEC requirements for generator interconnection and electrical safety
• Professional Installations - Contractor and electrician projects requiring reliable interlock systems
• Backup Power Safety - Applications where utility worker protection and electrical isolation are critical
• Generator Integration - Portable and standby generator connections to existing electrical systems

Mechanical Interlock Advantage

Eaton's mechanical interlock technology provides positive electrical isolation between utility and generator power sources, preventing dangerous backfeed conditions that could endanger utility workers. The plug-on neutral design simplifies installation while maintaining electrical safety standards, making it the preferred choice for professional electrical contractors and certified electricians.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers unmatched reliability and safety in electrical protection systems. Our interlock kits meet rigorous electrical safety standards and provide the dependable performance that electricians, electrical contractors, and facility professionals trust worldwide. From residential backup power to commercial emergency systems, Eaton's commitment to electrical safety and intelligent power management ensures your installations meet the highest professional standards.
