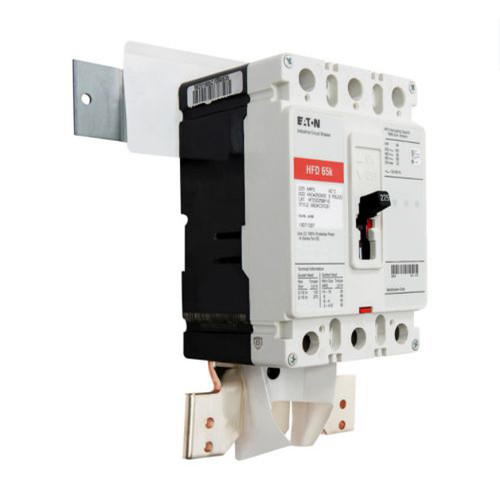

Eaton Main Breaker Kit Pow-R-Stock Series ED Type 100A Top Bottom Mount Single Three Phase

Eaton Main Breaker Kit Pow-R-Stock Series ED Type

Professional Electrical Main Circuit Breaker Kit Solution

The Eaton Main Breaker Kit Pow-R-Stock Series delivers exceptional electrical power management and control performance for main circuit breaker installations in electrical panels and load centers. This 100A ED circuit breaker type main kit provides reliable electrical protection and power distribution designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Main Circuit Protection Performance

• 100A Rated Operational Current - Provides robust main circuit protection with reliable current handling capacity for residential and commercial electrical distribution systems
• ED Circuit Breaker Type - Features proven ED breaker technology for dependable overcurrent protection and electrical safety in main service applications
• Pow-R-Stock Series Design - Engineered with Eaton's professional-grade construction for consistent performance and long-term electrical reliability
• Flexible Phase Configuration - Accommodates both single-phase and three-phase electrical systems for versatile installation applications

Installation & Mounting Flexibility

• Top and Bottom Mounting Options - Provides installation flexibility with dual mounting configurations to accommodate various panel layouts and electrical system requirements
• Compact Design Dimensions - Measures 6" length x 4" width x 3" height with 7 lb weight for efficient space utilization in electrical enclosures
• Professional Installation Ready - Pre-configured main breaker kit design simplifies installation process for electrical contractors and reduces field assembly time

Technical Specifications

Rated Operational Current: 100A, Circuit Breaker Type: ED, Series: Pow-R-Stock, Phase Configuration: Single-phase and three-phase compatible, Mounting: Top and bottom mounting options, Product Dimensions: 6" L x 4" W x 3" H, Weight: 7 lb, Product Type: Main Breaker Kit, Product Group: Electrical, Product Subgroup: Circuit Breaker

Installation & Usage

1. Verify electrical system compatibility with 100A rating and phase requirements before installation
2. Select appropriate mounting configuration (top or bottom) based on panel layout and electrical design specifications
3. Install main breaker kit following NEC guidelines and local electrical codes for main circuit protection
4. Connect incoming service conductors to main breaker terminals using proper torque specifications
5. Verify proper phase connections for single-phase or three-phase electrical system configuration
6. Test main breaker operation and electrical continuity before energizing the electrical system

Professional Applications

Ideal for:

• Residential Electrical Panels - Main service protection for residential load centers and electrical distribution systems
• Commercial Electrical Systems - Main circuit protection for small to medium commercial electrical installations
• Industrial Power Distribution - Main breaker applications in industrial electrical panels and control systems
• Electrical Panel Upgrades - Retrofit and upgrade applications for existing electrical distribution equipment
• Load Center Applications - Main protection for residential and light commercial load centers
• Electrical Service Entrances - Main disconnect and protection for electrical service entrance applications
• Power Distribution Systems - Main circuit protection in electrical distribution panels and switchboards
• Electrical Safety Systems - Primary overcurrent protection for electrical safety and code compliance

Pow-R-Stock Series Advantage

The Pow-R-Stock series represents Eaton's commitment to professional-grade electrical components with proven reliability and consistent performance. This main breaker kit features robust construction and dependable ED circuit breaker technology, providing electrical contractors with the quality and reliability needed for critical main circuit protection applications in residential, commercial, and industrial electrical systems.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton continues to lead the industry in intelligent power solutions and electrical safety technology. Our main breaker kits are trusted by electricians, electrical contractors, and facility professionals worldwide for their proven performance, professional quality construction, and commitment to electrical safety standards. Choose Eaton for reliable electrical protection solutions that deliver the performance and dependability your electrical projects demand.
