Eaton Pow-R-Xpress Panelboard 200% Neutral Single-Phase Three-Phase 100A Compatible

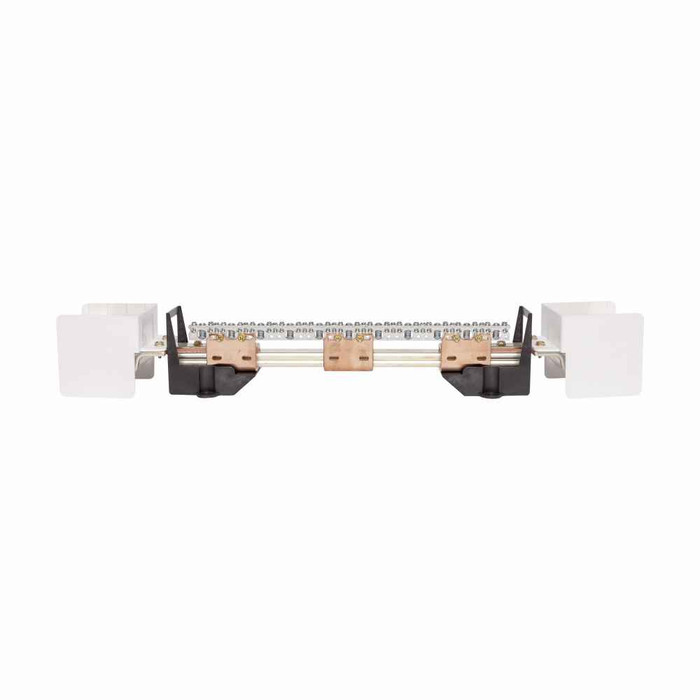

Eaton Pow-R-Xpress Panelboard 200% Neutral

Professional Electrical Power Distribution Component

The Eaton Pow-R-Xpress Panelboard 200% Neutral delivers exceptional electrical power distribution performance for 100A panelboard applications. This single-phase and three-phase compatible neutral component provides reliable electrical distribution designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Distribution Performance

• 200% Neutral Capacity - Provides enhanced neutral current handling for unbalanced loads and harmonic currents in modern electrical systems
• Single-Phase and Three-Phase Compatibility - Versatile design accommodates both single-phase and three-phase electrical distribution requirements
• 100A Panelboard Integration - Specifically engineered for seamless integration with 100A panelboard systems
• Compact Professional Design - Space-efficient 14.5" x 6.25" x 4.5" dimensions with lightweight 1.5 lb construction for easy installation

Installation & Safety Features

• UL 67 Certified Safety - Meets rigorous UL 67 panelboard safety standards for professional electrical installations
• Pow-R-Xpress System Integration - Designed for Eaton's Pow-R-Xpress panelboard system for reliable power distribution
• Professional Grade Construction - Built to withstand demanding commercial and industrial electrical environments

Technical Specifications

Neutral Type: 200% capacity, Phase Compatibility: Single-phase and three-phase, Compatible With: 100A Panelboard, Dimensions: 14.5" L x 6.25" W x 4.5" H, Weight: 1.5 lb, Certifications: UL 67, Special Features: PRL1X/2X - PRL1A/2A compatibility, Product Group: Electrical distribution components

Installation & Usage

1. Verify compatibility with existing 100A panelboard system and electrical specifications
2. Ensure power is completely disconnected and follow proper lockout/tagout procedures
3. Position the 200% neutral component according to panelboard manufacturer specifications
4. Secure neutral connections following NEC guidelines and local electrical codes
5. Verify proper grounding and bonding connections for electrical safety
6. Test installation with appropriate electrical testing equipment before energizing system

Professional Applications

Ideal for:

• Commercial Electrical Systems - Office buildings, retail facilities, and commercial properties requiring enhanced neutral capacity
• Industrial Power Distribution - Manufacturing facilities and industrial plants with unbalanced loads and harmonic currents
• Healthcare Facilities - Hospitals and medical centers with sensitive electronic equipment requiring stable neutral connections
• Educational Institutions - Schools and universities with modern electrical loads and computer equipment
• Data Centers - IT facilities requiring reliable neutral current handling for electronic loads
• Mixed-Use Buildings - Multi-tenant facilities with diverse electrical load requirements
• Renovation Projects - Electrical system upgrades requiring enhanced neutral capacity for modern loads
• Code Compliance Upgrades - Installations requiring 200% neutral capacity to meet current electrical codes

Pow-R-Xpress System Advantage

The Eaton Pow-R-Xpress panelboard system provides modular flexibility and reliable performance for modern electrical distribution requirements. This 200% neutral component integrates seamlessly with Pow-R-Xpress panelboards, offering enhanced neutral current handling capacity essential for today's electronic loads, LED lighting systems, and variable frequency drives that can create harmonic currents requiring robust neutral conductors.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton delivers the reliability and performance that electrical professionals demand. Our UL 67 certified panelboard components meet the highest safety standards while providing the advanced electrical distribution solutions trusted by electricians, electrical contractors, and facility professionals worldwide. Eaton's commitment to electrical safety, code compliance, and professional-grade construction ensures dependable performance in critical power distribution applications.
