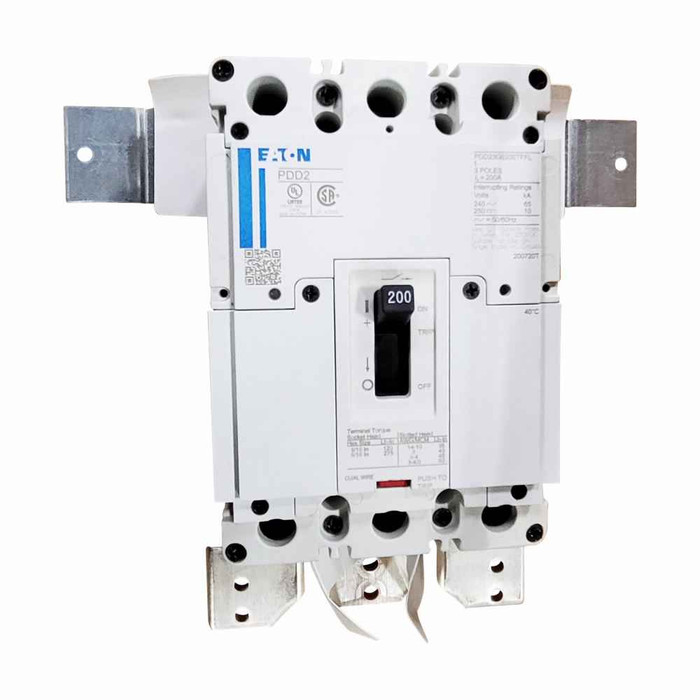

Eaton Main Breaker Kit 200A Pow-R-Xpress Series PDD2XF Single Three Phase Top Bottom Mount

Eaton Main Breaker Kit 200A Pow-R-Xpress Series PDD2XF Single Three Phase Top Bottom Mount

Professional Electrical Power Distribution Equipment

The Eaton Main Breaker Kit 200A Pow-R-Xpress Series delivers exceptional electrical power distribution performance for commercial and industrial electrical systems. This 200A main breaker kit provides reliable electrical protection and power distribution designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance & Capacity

• 200A Amperage Rating - High-capacity electrical distribution for demanding commercial and industrial applications with reliable current handling performance
• Single-Phase and Three-Phase Compatibility - Versatile phase configuration options accommodate diverse electrical system requirements and installation needs
• PDD2XF Circuit Breaker Type - Advanced circuit breaker technology provides dependable electrical protection and switching performance
• Pow-R-Xpress Series Design - Engineered for professional electrical distribution applications with Eaton's proven power management technology

Installation & Mounting Flexibility

• Top and Bottom Mounting Options - Flexible mounting configuration allows professional installation in various electrical panel and enclosure arrangements
• Compact Dimensions - Space-efficient 6" x 4" x 3" design optimizes electrical panel space utilization while maintaining full electrical performance
• Lightweight Construction - 5 lb weight facilitates easier handling and installation for electrical professionals

Technical Specifications

Amperage Rating: 200A, Phase Configuration: Single-phase and three-phase compatible, Circuit Breaker Type: PDD2XF, Series: Pow-R-Xpress, Product Type: Main Breaker Kit, Dimensions: 6" L x 4" W x 3" H, Weight: 5 lb, Mounting: Top and bottom mounting options, Certifications: UL 67 listed for electrical safety compliance

Installation & Usage

1. Verify electrical system compatibility with 200A rating and phase requirements before installation
2. Select appropriate top or bottom mounting configuration based on electrical panel layout and accessibility needs
3. Install main breaker kit following NEC guidelines and local electrical codes for proper electrical protection
4. Connect incoming electrical service conductors to main breaker terminals using proper torque specifications
5. Verify proper electrical connections and test main breaker operation before energizing electrical system
6. Complete installation documentation and electrical system labeling per professional electrical standards

Professional Applications

Ideal for:

• Commercial Electrical Systems - Main electrical distribution for office buildings, retail facilities, and commercial properties requiring 200A capacity
• Industrial Power Distribution - Manufacturing facilities, warehouses, and industrial plants needing reliable main electrical protection
• Electrical Panel Upgrades - Modernizing existing electrical systems with advanced main breaker technology and improved electrical safety
• New Construction Projects - Primary electrical distribution for new commercial and industrial building electrical installations
• Facility Electrical Maintenance - Replacement and upgrade applications for existing main electrical distribution equipment
• Electrical Contractor Applications - Professional electrical installations requiring UL-listed main breaker components
• Power Distribution Centers - Main electrical protection for electrical distribution panels and switchgear applications
• Electrical Safety Systems - Critical electrical protection applications where reliable main breaker performance is essential

Pow-R-Xpress Technology Advantage

Eaton's Pow-R-Xpress series represents advanced electrical distribution technology engineered for professional applications. The PDD2XF circuit breaker type provides reliable electrical protection with proven switching performance, while the flexible mounting options accommodate diverse installation requirements. This main breaker kit delivers the electrical performance and reliability that electrical professionals demand for critical power distribution applications.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton leads the industry in intelligent power solutions and electrical safety technology. This main breaker kit features UL 67 certification ensuring compliance with electrical safety standards, backed by Eaton's commitment to quality construction and dependable electrical performance. Trusted by electricians, electrical contractors, and facility professionals worldwide, Eaton delivers the advanced electrical technology and professional reliability that power management applications demand.
