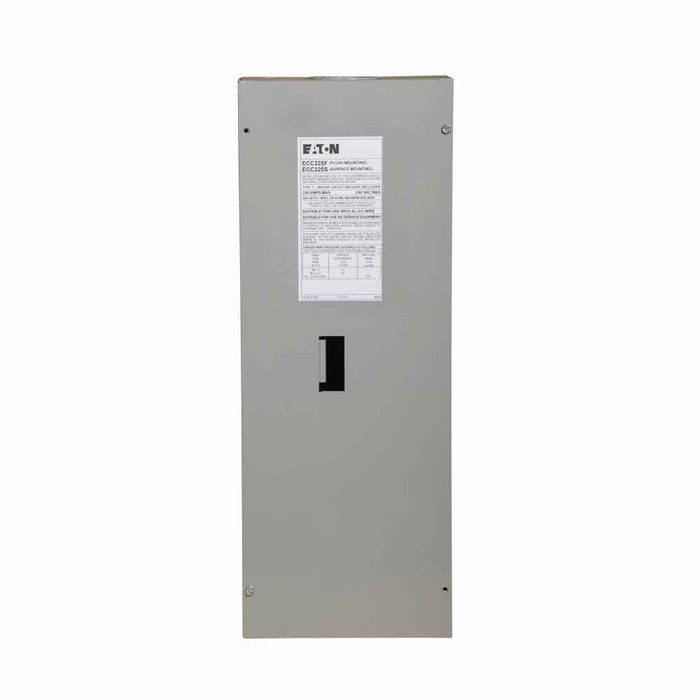

Eaton Circuit Breaker Enclosure 225A 10kAIC 225V CH Type NEMA 1 Surface Mount
Professional Circuit Breaker Unit Enclosure for Electrical Distribution Systems
The Eaton Circuit Breaker Enclosure delivers exceptional electrical power management and control performance for commercial and industrial electrical distribution applications. This 225A 10kAIC circuit breaker unit enclosure provides reliable electrical protection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.
Professional Features & Benefits
Electrical Performance & Protection
- 225A Current Rating - High-capacity electrical distribution for demanding commercial and industrial applications with reliable power handling performance
- 10kAIC Interrupt Rating - Superior fault current interruption capability providing enhanced electrical safety and system protection
- 225V Voltage Rating - Optimized for low-voltage electrical distribution systems with consistent voltage performance
- CH Type Compatibility - Designed specifically for use with Eaton CH series circuit breakers ensuring proper fit and electrical performance
Installation & Protection Features
- NEMA 1 Enclosure Rating - Indoor general-purpose enclosure protection suitable for dry location electrical installations
- Surface Mounting Design - Convenient surface mounting method for flexible installation in electrical rooms and utility areas
- UL Listed Certification - Meets rigorous electrical safety standards ensuring code compliance and professional installation confidence
Technical Specifications
Amperage Rating: 225A, Interrupt Rating: 10kAIC, Voltage Rating: 225V, Enclosure: NEMA 1, Mounting Method: Surface mounting, Compatible Circuit Breakers: CC Circuit breakers, Main Circuit Breaker: CH Type, Dimensions: 24.5" L x 9" W x 5" H, Weight: 13.6 lbs, Certifications: UL Listed, Used With: CC Circuit breakers, Circuit Breaker Frame Type: CCV, Phasing: Standard T
Installation & Usage
- Select appropriate mounting location ensuring adequate clearance and accessibility for electrical service
- Secure enclosure to mounting surface using proper fasteners rated for electrical equipment weight
- Install compatible CH type circuit breaker following manufacturer specifications and electrical codes
- Connect electrical conductors to circuit breaker terminals ensuring proper torque specifications
- Verify all electrical connections are secure and properly terminated before energizing system
- Test circuit breaker operation and enclosure grounding for electrical safety compliance
Professional Applications
Ideal for:
- Commercial Electrical Systems - Office buildings, retail facilities, and commercial properties requiring reliable 225A electrical distribution
- Industrial Power Distribution - Manufacturing facilities and industrial plants needing robust circuit breaker protection
- Electrical Panel Upgrades - Modernizing existing electrical systems with enhanced circuit breaker enclosure protection
- Service Entrance Applications - Main electrical service connections requiring high-capacity circuit breaker housing
- Electrical Maintenance Projects - Replacement enclosures for existing CH type circuit breaker installations
- Load Center Installations - Electrical distribution centers requiring professional-grade enclosure protection
- Electrical Safety Systems - Critical electrical protection applications demanding reliable circuit breaker housing
- Power Protection Upgrades - Enhancing electrical system safety with proper circuit breaker enclosure solutions
CH Type Circuit Breaker Advantage
This enclosure is specifically engineered for Eaton CH type circuit breakers, ensuring optimal electrical performance and proper mechanical fit. The CH compatibility provides reliable electrical connections, consistent thermal performance, and simplified installation for professional electricians working with Eaton electrical distribution systems.
Why Choose Eaton Quality?
With over a century of electrical power management innovation, Eaton delivers unmatched reliability and performance in circuit breaker enclosures. Our commitment to electrical safety, UL listing compliance, and professional-grade construction makes Eaton the trusted choice for electricians, electrical contractors, and facility professionals worldwide who demand dependable electrical protection solutions.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 225 A
- Catalog Notes:
- Order circuit breaker separately. One ground lug accepting 1-#14-#2 is factory installed. Also, there are pre-drilled holes to accept a GBK5 ground bar. approved for service entrance.
- Certifications:
- UL Listed
- Circuit Breaker Frame Type:
- CCV
- Enclosure:
- NEMA 1
- Interrupt Rating:
- 10 kAIC
- Main Circuit Breaker:
- CH
- Mounting Method:
- Surface mounting
- Phasing:
- Standard T
- Product Height:
- 5 in
- Product Length Depth:
- 24.5 in
- Product Type:
- Circuit Breaker Enclosure
- Product Weight:
- 13.6 lb
- Product Width:
- 9 in
- Used With:
- CC Circuit breakers
- Voltage Rating:
- 225V
- Product Group:
- Electrical
- Product Subgroup:
- Circuit Breaker Enclosure
- Department:
- Electrical
