Eaton Main Breaker Loadcenter 200A Single-Phase 40-Circuit 20-Space Plug-On Neutral NEMA 1

Eaton Main Breaker Loadcenter 200A Single-Phase 40-Circuit 20-Space Plug-On Neutral NEMA 1

Professional Electrical Distribution Panel with Plug-On Neutral Technology

The Eaton Main Breaker Loadcenter delivers exceptional electrical power distribution performance for residential and light commercial applications. This 200A single-phase main breaker panel provides reliable electrical distribution with 40 circuits and 20 spaces, designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced plug-on neutral technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance & Capacity

• 200A Main Circuit Breaker (CSR2200) - Provides reliable main electrical protection with 22 kAIC interrupt rating for comprehensive electrical system protection
• 40-Circuit Capacity with 20 Spaces - Accommodates extensive electrical distribution needs with room for future expansion in residential and commercial applications
• Single-Phase 120/240V Rating - Optimized for standard residential and light commercial electrical systems with reliable voltage distribution
• 22 kAIC Interrupt Rating - Delivers professional-grade fault current interruption capability for enhanced electrical safety and system protection

Advanced Plug-On Neutral Technology

• Plug-On Neutral Design - Eliminates the need for pigtail neutral connections, reducing installation time and improving electrical connections
• Type BR 1-Inch Breaker Compatibility - Works with Eaton's proven Type BR circuit breaker line for consistent electrical protection performance
• Aluminum Bus Construction - Provides excellent electrical conductivity with 25 kA bus rating for reliable power distribution

Professional Installation & Protection

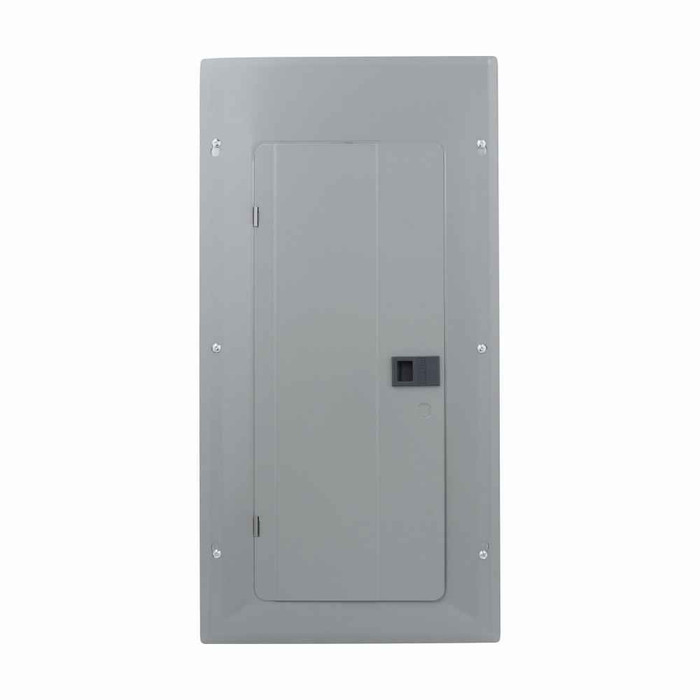

• NEMA 1 Metallic Enclosure - Gray metallic enclosure with cover included provides durable protection for indoor electrical installations
• Combination Mounting System - Versatile mounting options for professional electrical panel installation in various applications
• #6-1/0 AWG Cu/Al Wire Compatibility - Accommodates copper and aluminum conductors for flexible electrical connection options

Technical Specifications

Main Circuit Breaker: CSR2200 200A, Voltage Rating: Single-phase 120/240V, Interrupt Rating: 22 kAIC, Circuit Capacity: 40 circuits, Space Configuration: 20 spaces, Bus Material: Aluminum with 25 kA rating, Wire Size: #6-1/0 AWG Cu/Al, Enclosure: NEMA 1 metallic with gray finish, Mounting: Combination type, Dimensions: 29.12" L x 14.31" W x 3.88" H, Weight: 28.2 lbs, Certifications: UL 50, Compatible Breakers: Type BR 1-inch breakers, Special Features: Plug-on neutral technology, main circuit breaker protection

Installation & Usage

1. Mount the loadcenter securely using combination mounting system in appropriate indoor location meeting NEC clearance requirements
2. Connect main electrical service conductors (#6-1/0 AWG Cu/Al) to the 200A main circuit breaker terminals following proper torque specifications
3. Install Type BR circuit breakers in designated spaces, utilizing plug-on neutral technology for AFCI and GFCI breakers
4. Connect branch circuit conductors to individual circuit breakers, ensuring proper wire sizing and connection integrity
5. Verify all electrical connections are secure and perform comprehensive electrical testing before energizing the panel
6. Complete electrical labeling and documentation per local electrical codes and professional installation standards

Professional Applications

Ideal for:

• Residential Electrical Systems - Main electrical distribution for homes requiring 200A service with extensive circuit capacity
• Light Commercial Applications - Small commercial buildings, offices, and retail spaces requiring reliable electrical distribution
• Electrical Service Upgrades - Upgrading older electrical panels to modern 200A capacity with advanced safety features
• New Construction Projects - Primary electrical distribution for new residential and light commercial construction
• Multi-Family Housing - Individual unit electrical distribution in apartments, condominiums, and townhomes
• Home Addition Projects - Electrical distribution for major home additions requiring substantial electrical capacity
• Workshop and Garage Applications - Electrical distribution for workshops, garages, and outbuildings requiring 200A service
• Electrical Code Compliance - Meeting modern electrical codes requiring AFCI and GFCI protection with plug-on neutral technology

Plug-On Neutral Technology Advantage

Eaton's innovative plug-on neutral technology eliminates traditional pigtail neutral connections, significantly reducing installation time while improving electrical connection reliability. This advanced design allows AFCI and GFCI circuit breakers to connect directly to the neutral bus through the breaker mounting system, creating a more secure electrical connection and reducing potential failure points in the electrical distribution system.

Why Choose Eaton Quality?

With over a century of electrical power management innovation, Eaton continues to lead the industry in intelligent power distribution solutions. This main breaker loadcenter represents Eaton's commitment to electrical safety, reliability, and professional performance. UL 50 certification ensures compliance with rigorous safety standards, while the proven Type BR breaker compatibility provides long-term reliability that electricians, electrical contractors, and facility professionals trust worldwide for critical electrical distribution applications.
