NM Cable Fittings

90 degree zinc die-cast duplex connector with a twin screw strap. Secures into 1/2" knockout with a locknut.

Zinc die-cast, 1-1/2" knockout cable connector with round end stop. End stop diameter: 1.390. Secures to knockout with a locknut.

Zinc die-cast, 1-1/4" knockout cable connector with round end stop. End stop diameter: 1.030. Secures to knockout with a locknut.

Zinc die-cast, 1" knockout cable connector with round end stop. End stop diameter: .840. Secures to knockout with a locknut.

Zinc die-cast, 1-1/4" service entrance round cable connector

Zinc die-cast, 3/4" knockout cable connector with round end stop. End stop diameter: .620. Secures to knockout with a locknut.

2 screw clamp type. zinc die-cast. Maximum openning of .900. For one NM or service entrance cable.

Zinc die-cast, 1/2" knockout cable connector with round end stop. End stop diameter: .400. Also accomodates MCI-A cable ranges. Secures into knockout with a locknut.

Zinc die-cast, 1" service entrance round cable connector

1" Knockout handles up to 3 NM cables and service entrance cables. 2 Screw clamp type.

NM cable connector zinc die-cast. 2 screw clamp type. Handles combinations of NM cable from #14 to #10. Up to 3 NM cables at one time. Snap tight.

Non-metallic yellow stud bushing that fits into a 1 inch knockout, sold in a quantity of 100.

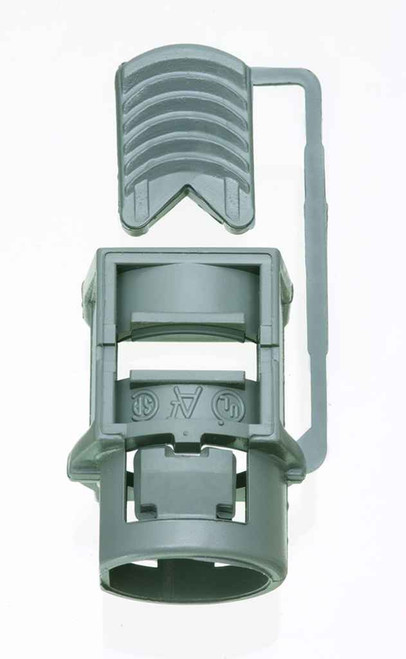

Non-metallic Push-In connector utilizes a wedge push in design for a secure grip with a knockout size of 3/4 inch.NM842 - spec sheet

Zinc die-cast, 2" service entrance round cable connector

Non-metallic Push-In connector utilizes a wedge push in design for a secure grip with a knockout size of 1/2 inch.NM841 - spec sheet

2 screw clamp type. zinc die-cast. Maximum openning of .960. For one NM or service entrance cable. Trade Size 2".

Zinc die-cast, 1-1/2" service entrance round cable connector

Non-metallic Push-In connector utilizes a wedge push in design for a secure grip with a knockout size of 1/2 inch only accepts 1-14/2 to 1-10/2 NM wire.NM840 - spec sheet

Zinc die-cast, single screw duplex connector snaps into 1/2" knockout with an external spring steel clip. Concrete tight when taped.

Zinc die-cast, single screw duplex connector snaps into 1/2" knockout with an external spring steel clip. Provided with insulated throat. Concrete tight when taped.

NM cable connector zinc die-cast. 2 screw clamp type. Handles combinations of NM cable from #14 to #10. Up to 3 NM cables at one time.
