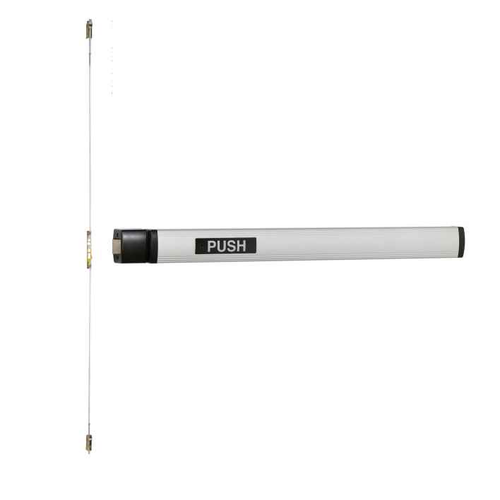

Falcon 1492NL-OP Narrow Stile Concealed Vertical Rod Exit Device with Night Latch Optional Pull - 3.5FT

Falcon 1492NL-OP Narrow Stile Concealed Vertical Rod Exit Device with Night Latch Optional Pull - 3.5FT

Professional Grade 1 Exit Device for Narrow Stile Aluminum Doors

The Falcon 1492NL-OP is a Grade 1 concealed vertical rod exit device specifically engineered for 1-3/4" aluminum doors in narrow stile applications. This 42" device features night latch cylinder functionality where the key retracts the latch but does not unlock the exit device, with 159CA-NL trim and rim cylinder included. Built with hardened steel latch bolts and sturdy aluminum push bars, this device meets ANSI/BHMA A156.3 Grade 1 standards for commercial applications.

Professional Features & Benefits

• Door Compatibility: Designed specifically for 1-3/4" aluminum doors with narrow stile configurations for optimal fit and performance.
• Grade 1 Certification: ANSI/BHMA A156.3-2001 Grade 1 rated for heavy-duty commercial applications requiring maximum durability and reliability.
• Heavy-Duty Construction: Hardened steel latch bolts and sturdy aluminum push bars with steel operating mechanisms provide exceptional durability for high-traffic installations.
• Night Latch Function: Key retracts latch but does not unlock exit device, maintaining security while allowing authorized access with 159CA-NL trim and rim cylinder.
• Concealed Mounting: All mounting screws are concealed for clean appearance and enhanced security in professional installations.
• Hurricane Rating Option: Available as hurricane-rated device for coastal applications when used with select door manufacturers (consult door manufacturer for compatibility).
• Manufacturer Warranty: 10-year limited warranty provides long-term protection and confidence in commercial applications.
• Versatile Applications: Suitable for retrofit applications with interior and exterior doors in commercial, multi-family, office and retail installations.

Technical Specifications

• ANSI/BHMA: ANSI A156.3-2001
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Strike: PB48 top
• Door Thickness Range: 1-3/4"
• Fasteners: All mounting screws are concealed
• Grade: Grade 1
• Latch Specification: RL - Rod bottom latch (standard), Hex bottom latch (standard for EL), PL - Pullman bottom latch (optional), ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
• Lock Function: Exit Only
• Product Category: Exit Devices and Trim
• Product Function: Exit Only
• Product Group: Exit Devices and Trim
• Product Projection: 2-3/4"
• Product Size: 42"
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Concealed Vertical Rod
• Series: 1490 Series
• Stile Type: Narrow Stile
• Subcategory: Concealed Vertical Rod
• Trim Hardware: Less Trim

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including 1-3/4" door thickness and narrow stile width compatibility for this concealed vertical rod device.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for proper concealed installation.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for concealed vertical rod mounting.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications, ensuring all screws remain concealed.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, verifying night latch cylinder function.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Multi-Family Residential Properties
• Industrial and Warehouse Facilities
• Government and Municipal Buildings

Why Choose Falcon Quality?

Falcon 1492NL-OP exit devices deliver professional-grade reliability with hardened steel latch bolts and steel operating mechanisms rated to ANSI/BHMA A156.3 Grade 1 standards. Backed by a 10-year limited warranty for added confidence and protection. Engineered for demanding commercial applications where dependable performance and narrow stile compatibility are essential.
