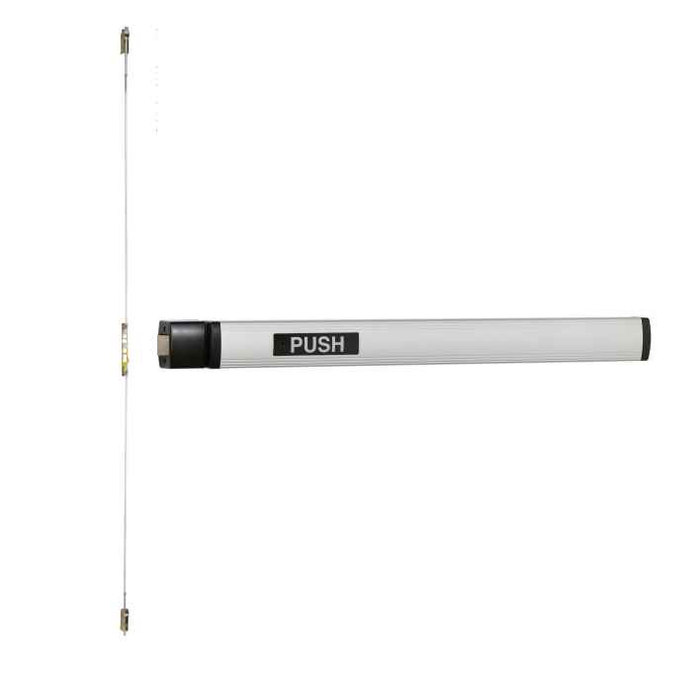

Falcon 1494NL-P Narrow Stile Concealed Vertical Rod Exit Device with Night Latch and Pull - 48 Inch

Falcon 1494NL-P Narrow Stile Concealed Vertical Rod Exit Device with Night Latch and Pull - 48 Inch

Professional Grade 1 Exit Device for Aluminum Door Applications

The Falcon 1494NL-P is a Grade 1 concealed vertical rod exit device specifically engineered for 1-3/4" aluminum doors in narrow stile applications. This 48" device features night latch functionality where the key retracts the latch but does not unlock the exit device, combined with pull trim for exterior access. Built with steel operating mechanisms and hardened steel latch bolts, this device meets ANSI/BHMA A156.3 Grade 1 standards for commercial applications.

Professional Features & Benefits

• Door Compatibility: Designed specifically for 1-3/4" aluminum doors with narrow stile construction for optimal fit and performance.
• Grade 1 Durability: ANSI/BHMA A156.3 Grade 1 certified construction ensures reliable performance in high-traffic commercial applications.
• Heavy-Duty Construction: Steel operating mechanisms with hardened steel latch bolts and sturdy aluminum push bars provide exceptional durability and vandal resistance.
• Night Latch Function: Key retracts latch but does not unlock exit device, maintaining security while allowing authorized access with pull trim.
• Concealed Mounting: All mounting screws are concealed for clean appearance and enhanced security against tampering.
• Hurricane Rating Option: Available as hurricane-rated device for coastal applications when used with select door manufacturers.
• Manufacturer Warranty: 10-year limited warranty provides long-term protection and confidence in product reliability.
• Electrification Ready: Designed to interface with building security systems for integrated access control solutions.

Technical Specifications

• ANSI/BHMA: ANSI A156.3-2001
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Strike: PB48 top
• Door Thickness Range: 1-3/4"
• Fasteners: All mounting screws are concealed
• Grade: Grade 1
• Latch Specification: RL - Rod bottom latch (standard), Hex bottom latch (standard for EL), PL - Pullman bottom latch (optional), ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
• Lock Function: Dummy/Pull Trim
• Product Category: Exit Devices and Trim
• Product Function: Pull Trim
• Product Group: Exit Devices and Trim
• Product Projection: 2-3/4"
• Product Size: 48"
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Concealed Vertical Rod
• Series: 1490 Series
• Stile Type: Narrow Stile
• Subcategory: Concealed Vertical Rod
• Trim Hardware: Pull Trim

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including 1-3/4" door thickness and narrow stile compatibility for this concealed vertical rod application.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for the 48" device length.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions, ensuring proper clearance for concealed vertical rod operation.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications, ensuring all mounting screws remain concealed.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, verifying night latch function operates correctly.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Multi-Family Residential Properties
• Retail Establishments
• Educational Facilities
• Healthcare Institutions
• Industrial and Warehouse Facilities
• Government and Municipal Buildings

Hurricane-Rated Option

The 1490 Series exit devices provide hurricane-rated door openings when used with select door manufacturers for coastal code requirements. This enhanced protection ensures reliable egress performance even under extreme weather conditions while maintaining code compliance for hurricane-prone regions.

Why Choose Falcon Quality?

Falcon 1494NL-P exit devices deliver professional-grade reliability with steel operating mechanisms and hardened steel latch bolts rated to ANSI/BHMA A156.3 Grade 1 standards. The 10-year limited warranty provides added confidence and protection for demanding commercial applications. Engineered for aluminum door applications where dependable narrow stile performance and concealed mounting are essential.
