Falcon 1691DT Concealed Vertical Rod Exit Device with Dummy Trim - 48" Narrow Stile

Falcon 1691DT Concealed Vertical Rod Exit Device with Dummy Trim - 48" Narrow Stile

Grade 1 Commercial Exit Device for Aluminum Doors

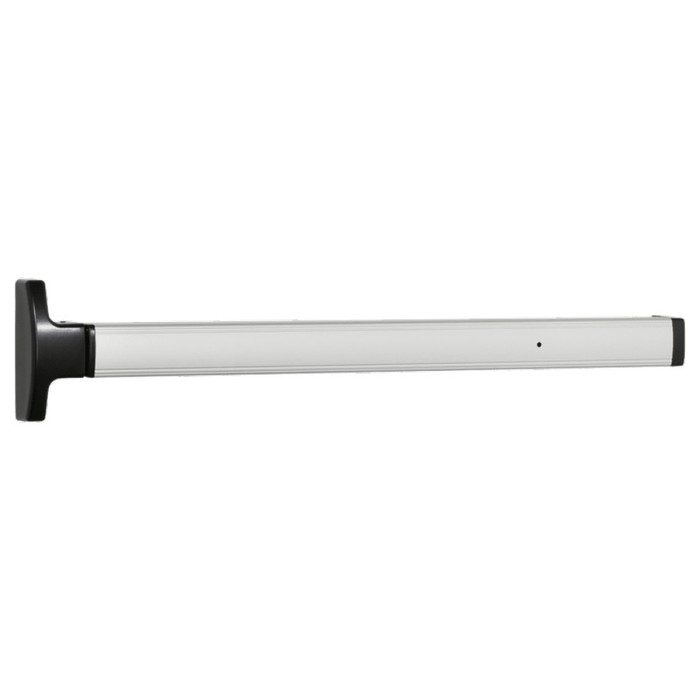

The Falcon 1691DT is a concealed vertical rod touchbar exit device designed specifically for narrow stile aluminum doors in commercial applications. This Grade 1 certified device features a 48" length with 1-3/4" door thickness compatibility and 3/4" latch throw for reliable egress performance. The concealed vertical rod and latch mechanisms are housed within the door stile for streamlined operation, while cast metal cover plates and end caps provide exceptional durability for demanding institutional environments.

Professional Features & Benefits

• 48" Door Compatibility: Designed for 48" narrow stile aluminum doors with 1-3/4" thickness for precise commercial door applications.
• Grade 1 Durability: ANSI/BHMA A156.3 Grade 1 certification ensures heavy-duty performance for high-traffic institutional applications including schools, hospitals, and government facilities.
• Concealed Mechanism Design: Vertical rods and latch mechanisms are concealed within the door stile, providing clean aesthetics and protection from tampering or forced entry attempts.
• Cast Metal Construction: Cast metal cover plates and end caps deliver exceptional durability and resistance to rigorous use in demanding commercial environments.
• Single-Point Dogging Feature: Quick dogging capability in the housing allows deactivation of the device for unrestricted traffic flow during high-volume periods.
• Dummy Trim Configuration: 9970 pull-only trim provides exterior access without keyed operation, ideal for exit-only applications requiring manual pull functionality.
• 10-Year Limited Warranty: Comprehensive manufacturer warranty provides long-term protection and confidence in commercial installations.
• Retrofit Compatibility: Can be used to retrofit existing 1990 Series crossbar devices for upgraded performance and functionality.

Technical Specifications

• ANSI/BHMA: ANSI A156.3-2001
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Hand Direction: Non-Handed
• Door Strike: PB48 top
• Door Thickness Range: 1-3/4"
• Grade: Grade 1
• Keyed: No
• Keyed Function: Non-Keyed
• Latch Throw: 3/4"
• Lock Function: Dummy
• Product Category: Exit Devices and Trim
• Product Function: Dummy
• Product Group: Exit Devices and Trim
• Product Projection: 3-3/8"
• Product Size: 48"
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Concealed Vertical Rod
• Series: 1690 Series
• Stile Type: Narrow Stile
• Subcategory: Concealed Vertical Rod
• Trim Hardware: Pull Trim

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including 48" door height, narrow stile width, and 1-3/4" door thickness compatibility.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for concealed vertical rod installation.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for vertical rod housing and strike plate mounting.
4. Install vertical rod mechanisms within door stile cavities and secure the touchbar device to door per manufacturer torque specifications.
5. Mount cast metal cover plates and end caps, ensuring proper alignment of concealed mechanisms for smooth operation throughout the full range of motion.
6. Test device operation including touchbar activation, latch retraction, and dogging feature to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Educational Facilities and Schools
• Healthcare Institutions and Hospitals
• Government and Municipal Buildings
• Commercial Office Buildings
• Institutional Buildings
• Aluminum Storefront Applications
• High-Traffic Commercial Egress Points

Why Choose Falcon Quality?

Falcon 1690 Series exit devices deliver professional-grade reliability with cast metal construction and concealed vertical rod design rated for Grade 1 commercial performance. The 10-year limited warranty provides added confidence and protection for demanding institutional applications. Engineered for medium to high use and abuse in commercial environments where dependable egress performance and durability are essential.
