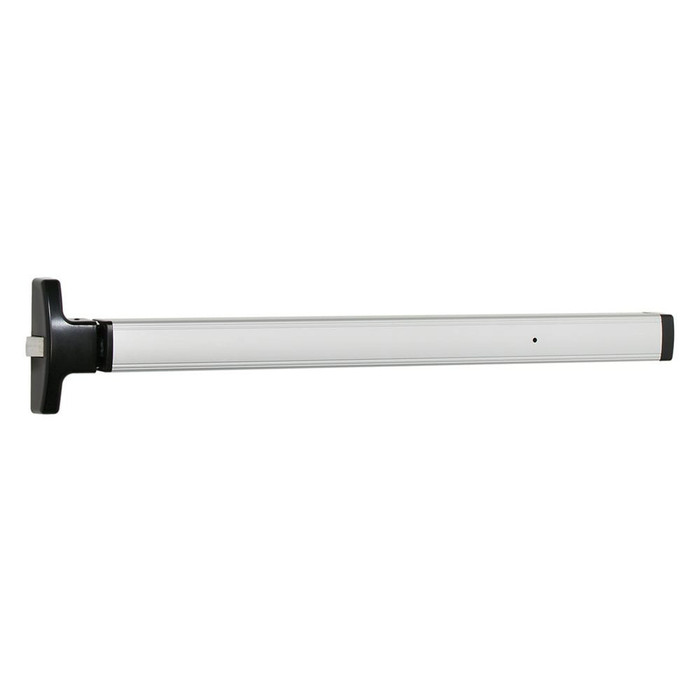

Falcon 1791DT 36" Narrow Stile Rim Exit Device with Dummy Pull Trim

Falcon 1791DT 36" Narrow Stile Rim Exit Device with Dummy Pull Trim

Grade 1 Commercial Exit Device for Aluminum Door Applications

The Falcon 1791DT is a professional-grade narrow stile rim exit device designed specifically for 36" aluminum doors with 1-3/4" thickness. This ANSI/BHMA A156.3 Grade 1 certified device features dummy trim with pull-only functionality and 3/4" latch throw for reliable egress control. The streamlined rim design eliminates maintenance concerns with fewer moving parts while providing enhanced security through its sealed construction that prevents tampering via chains or tools.

Professional Features & Benefits

• 36" Door Compatibility: Engineered for narrow stile aluminum doors with 1-3/4" thickness and 3-3/8" projection requirements.
• Grade 1 Durability: ANSI/BHMA A156.3 certified construction with cast metal cover plates and end caps for demanding institutional applications.
• Streamlined Rim Design: Fewer parts than vertical rod devices result in reduced maintenance requirements and simplified operation.
• Enhanced Security: Sealed design with no openings eliminates tampering risks from chains, coat hangers, and other tools for increased building security.
• Dummy Pull Trim: 9970 pull-only trim provides exterior access without keyed operation for exit-only applications.
• Concealed Fasteners: All mounting screws are concealed for clean appearance and tamper resistance.
• Quick Dogging Feature: Single-point dogging in housing deactivates device for unrestricted traffic flow when needed.
• 10-Year Limited Warranty: Comprehensive manufacturer warranty provides long-term protection and confidence.

Technical Specifications

• ANSI/BHMA: ANSI A156.3-2001
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Hand Direction: Non-Handed
• Door Strike: TD35 Strike supplied standard
• Door Thickness Range: 1-3/4"
• Fasteners: All mounting screws are concealed
• Grade: Grade 1
• Keyed: No
• Keyed Function: Non-Keyed
• Latch Throw: 3/4"
• Lock Function: Dummy
• Product Category: Exit Devices and Trim
• Product Function: Dummy
• Product Group: Exit Devices and Trim
• Product Model: 1791DT-3FT
• Product Projection: 3-3/8"
• Product Size: 36"
• Product Subgroup: Exit Devices - Rim
• Product Type: Exit Devices - Rim
• Series: 1790 Series
• Stile Type: Narrow Stile
• Subcategory: Rim Exit Devices
• Trim Hardware: Pull Trim
• Wood Door Compatible: No

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Educational Facilities and Schools
• Healthcare Institutions and Hospitals
• Government and Municipal Buildings
• Commercial Office Buildings
• Institutional Buildings
• Aluminum Storefront Applications
• Medium to High-Traffic Exit Points

Why Choose Falcon Quality?

Falcon 1790 Series exit devices deliver professional-grade reliability with cast metal construction and Grade 1 certification for demanding commercial applications. The 10-year limited warranty and streamlined rim design ensure long-term performance with minimal maintenance requirements. Engineered specifically for aluminum door applications where dependable egress control and enhanced security are essential.
