OVERVIEW
The 1690/1790 Series narrow stile touch bar exit devices provide safe and reliable egress that is ideal for aluminum doors. Both series are certified ANSI/BHMA A156.3 Grade 1 products and boast a 10-year limited warranty.
The 1690 Series design is ideal for demanding, moderate-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring ideal operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, single-point dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The 1690 Series may also be used to retrofit a 1990 Series crossbar device.

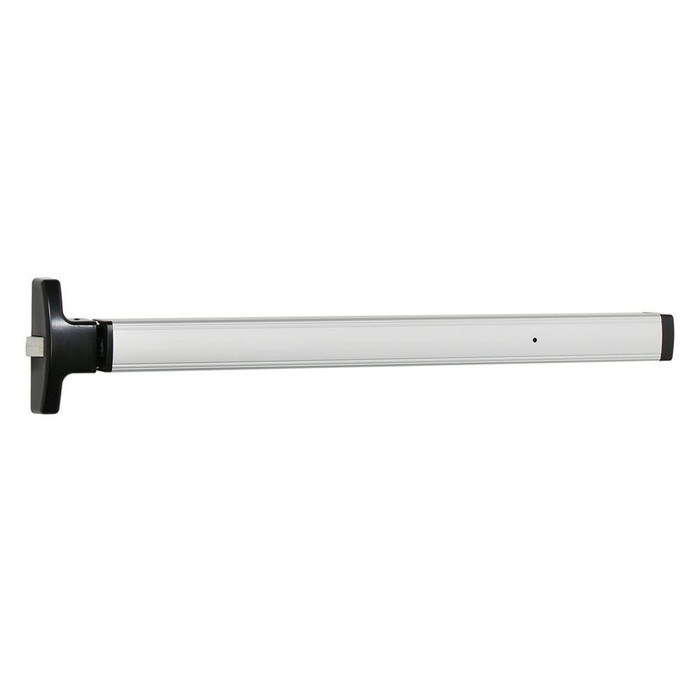

The 1790 Series rim device is typically used in applications where maintenance is a concern, since the rim device has fewer parts and pieces than other exit devices. This results in less maintenance and adjustment. The streamlined design has no openings for chains, reducing code infringements risks and offers increased building security by eliminating tampering and forced entry via coat hangers and other tools. The 1790 Series may also be used to retrofit a 2090 Series crossbar device.
Features
- Cast metal cover plates and end caps provide durability in demanding applications
- Various options, functions, trims and finishes allow for tailoring to any facility needs
- Designed for medium to high use and abuse in institutional applications like schools, hospitals and government facilities
The 1690/1790 Series have various trim solutions. For additional detail on available trims for specific models, view the Falcon Exits catalog.
- Exit only (EO): no trim, exit device only
- Dummy trim (DT): 9970 pull only
- Cylinder only options:
- Night latch, cylinder only (NL-OP): key retracts latch but does not unlock exit device, no pull
- Hold back, cylinder only (HB-OP): key retracts latch and holds latch back, no pull
- Pulls with cylinders:
- Night latch with pull (NL-P): key retracts latch but does not unlock exit device with pull
- Hold back with pull (HB-P): key retracts latch and holds latch back
- Lever trim (1790 Series only):
- Lever (L): key locks and unlocks the trim
- Night latch (L-NL): key retracts latch but does not unlock trim
- Blank escutcheon (L-BE): no cylinder or lever
Download Resources
Falcon 1690 / 1790 / 2390 RX Switch Retrofit Kit Installation Instructions
Manufacturer Resources
Product Specs
- Category:
- Exit Devices and Trim
- Product Group:
- Exit Devices and Trim
- Series:
- 1790 Series
- Fasteners:
- All mounting screws are concealed
- Door Thickness:
- 1-3/4"
- Projection:
- 3-3/8"
- Handing:
- Non-Handed
- ANSI/BHMA:
- ANSI A156.3-2001
- Product Subgroup:
- Exit Devices - Rim
- Subcategory:
- Rim Exit Devices
- Strike:
- TD35 Strike supplied standard
- Latch Throw:
- 3/4"
- Function:
- Exit Only
- Commercial/Residential:
- Commercial
- Grade:
- Grade 1
- Product Type:
- Exit Devices - Rim
- Model:
- 1792NL-OP/HB-OP-3FT
- Stile Type:
- Narrow Stile
- Lock Function:
- Exit Only
- Size:
- 36"
- Trim:
- Less Trim
