Falcon Falcon - 2091DT Narrow Stile Rim Type Crossbar Exit Device - Dummy Trim with 9970 Pull - 51 IN FAL-2091DT-51IN

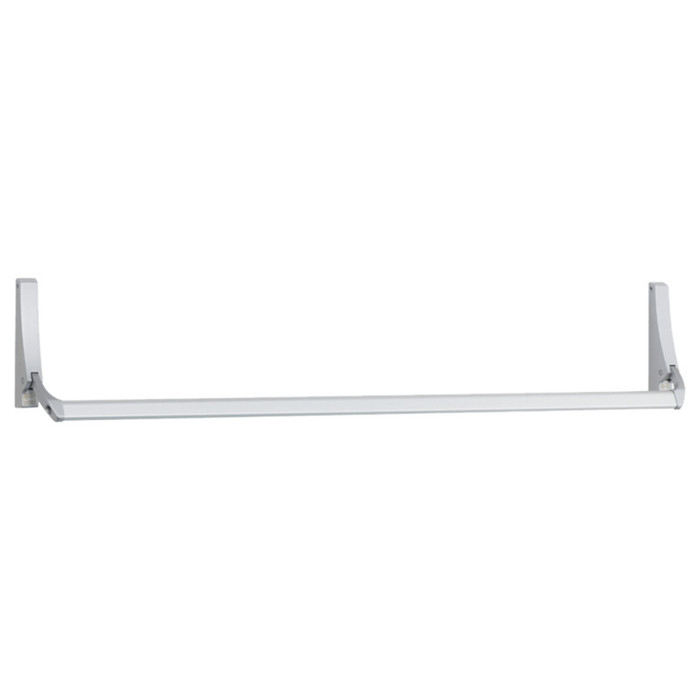

Falcon 2091DT Narrow Stile Rim Exit Device with Dummy Trim and 9970 Pull - 51 Inch

(No reviews yet) Write a Review

Model: 2091DT 51IN RHR US26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,190.00
$1,488.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Falcon 2091DT Narrow Stile Rim Exit Device with Dummy Trim and 9970 Pull - 51 Inch

Grade 1 Aluminum Storefront Exit Device Solution

The Falcon 2091DT is a Grade 1 narrow stile rim exit device from the 2090 Series, specifically designed for 51-inch aluminum storefront doors with 1-3/4" door thickness. This professional-grade exit device features an aluminum crossbar and narrow stile center case construction, certified to ANSI A156.3-2001 Grade 1 standards with UL305 listing. The dummy trim configuration includes the 9970 pull for exterior access without keyed operation, making it ideal for single door commercial and retail applications.

Professional Features & Benefits

  • 51-Inch Length: Designed specifically for 51" door applications with narrow stile aluminum door compatibility and 4-3/8" projection.
  • Grade 1 Durability: ANSI A156.3-2001 Grade 1 certification ensures heavy-duty performance for demanding commercial applications.
  • Aluminum Construction: Aluminum crossbar and narrow stile center case provide lightweight yet durable construction ideal for aluminum storefront doors.
  • Non-Handed Design: Field-reversible configuration offers convenient installation flexibility for various door orientations.
  • Dummy Trim Function: 9970 pull provides exterior access without keyed operation, perfect for exit-only applications.
  • Tamper-Resistant Features: Standard hex dogging and concealed mounting screws prevent unauthorized tampering and adjustment.
  • Retrofit Compatible: Designed for retrofit commercial and retail applications requiring durable crossbar solutions.
  • 10-Year Limited Warranty: Comprehensive manufacturer warranty provides long-term protection and confidence.

Technical Specifications

  • ANSI/BHMA: ANSI A156.3-2001
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Yes
  • Door Thickness Range: 1-3/4"
  • Grade: Grade 1
  • Keyed: No
  • Keyed Function: Non-Keyed
  • Lock Function: Dummy
  • Product Category: Exit Devices and Trim
  • Product Function: Dummy
  • Product Group: Exit Devices and Trim
  • Product Model: 2091DT
  • Product Projection: 4-3/8"
  • Product Size: 51"
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 2090 Series
  • Stile Type: Narrow Stile
  • Subcategory: Rim Type Cross Bar Exit Device
  • Trim Hardware: Pull Trim
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including 1-3/4" door thickness, narrow stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Retail Establishments
  • Aluminum Storefront Applications
  • Educational Facilities
  • Healthcare Institutions
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings

Why Choose Falcon Quality?

Falcon 2090 Series exit devices deliver professional-grade reliability with aluminum construction and Grade 1 certification for demanding commercial applications. UL305 listed with ANSI A156.3-2001 compliance and backed by a 10-year limited warranty for added confidence. Engineered specifically for aluminum storefront doors where dependable egress performance and tamper-resistant operation are essential.

Product Specs

Product Group:
Exit Devices and Trim
Series:
2090 Series
Grade:
Grade 1
ANSI/BHMA:
ANSI A156.3-2001
Product Subgroup:
Exit Devices - Rim
Subcategory:
Rim Type Cross Bar Exit Device
Commercial/Residential:
Commercial
Keyed Function:
Non-Keyed
Product Type:
Exit Devices - Rim
Keyed:
No
Stile Type:
Narrow Stile
Lock Function:
Dummy
Wood Door Compatible:
No
Product Model:
2091DT
Product Function:
Dummy
Door Hand Direction:
Yes
Door Thickness Range:
1-3/4"
Product Size:
51"
Product Projection:
4-3/8"
Trim Hardware:
Pull Trim
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Falcon 2091DT 51IN RHR US26D – Frequently Asked Questions

1) What does the DT dummy trim on the Falcon 2091DT actually do on the outside of the door?
The 9970 pull on the Falcon 2091DT is a pull only, with no key and no latch retraction from outside. It gives someone a handle to grab, but the door is not unlocked by it. Free egress is from the inside crossbar. If you need staff to get back in through that opening with a key, this is the wrong trim configuration, and you want a keyed night latch trim instead.
2) My door is 36 inches wide. Is the 51 inch Falcon 2091DT still right?
No. The 51 inch size is sized for a 51 inch door leaf, and a crossbar device has to match the leaf width. On a 36 inch storefront leaf you want a 36 inch narrow stile rim device, for example the Corbin Russwin ED4200 or the TownSteel ED3700, both 36 inch narrow stile Grade 1 rim devices.
3) Do I have to specify handing on the Falcon 2091DT?
Yes, handing is an ordering choice here. It comes left hand reverse or right hand reverse. Stand outside the opening: if the door swings out toward you and the hinges are on your right, that is right hand reverse. Get it wrong and the crossbar and end case sit on the wrong side of the leaf.
4) Is the Falcon 2091DT a rim device or a vertical rod device, and does that matter on a pair of storefront doors?
Rim. The latch engages a strike on the frame or, on a pair, a mullion. It does not latch top and bottom. On a pair with no center mullion you will need a mullion added or a vertical rod device instead, such as the Hager 4601 narrow stile concealed vertical rod unit.
5) Can I substitute a Von Duprin 22 or a Cal-Royal 5000 for the Falcon 2091DT on an aluminum storefront door?
Those are not direct substitutes. The Von Duprin 22-3FT is a wide stile pushpad rim device, 36 inch non-handed, Grade 1, for 1-3/4 inch doors, and the Cal-Royal 5000 is a 36 inch touch bar rim device with a Grade 2 chassis. The Falcon 2091DT is a narrow stile Grade 1 crossbar device for 1-3/4 inch aluminum storefront doors in dummy function, so a wide stile chassis will not land on a narrow storefront stile and the pushpad devices are latching, not dummy.
6) The Falcon 2091DT is not fire rated. What narrow stile rim device can I use on a fire door?
For a fire rated opening, the Adams Rite 3700 Series is a 30 inch fire rated Grade 1 narrow stile rim exit device with starwheel interlocking and is listed wood door compatible. Non-narrow-stile fire rated rim options include the Dexter ED1000 Grade 1 fire rated rim device, the Arrow FS1250 32 inch fire rated rim device for 1-3/4 inch doors, the Orca OED85 36 inch fire rated rim device, and the Marks USA M9900F in 36 and 48 inch. Note that a dummy trim device provides no latching, so confirm the fire assembly requirement with the authority having jurisdiction.
7) What is the closest narrow stile rim exit device to the Falcon 2091DT if I need a Grade 1 device from another manufacturer?
For a Grade 1 narrow stile rim device, the Corbin Russwin ED4200 is a 36 inch narrow stile rim exit device rated Grade 1 for 1-3/4 inch doors, the TownSteel ED3700 and ED8900 are both 36 inch heavy duty Grade 1 narrow stile rim devices, and the Detex 40 Advantex is an extra heavy duty Grade 1 narrow stile rim device. The Falcon 2091DT itself is Grade 1 to ANSI A156.3-2001 and covers a 51 inch door with a 4-3/8 inch projection, so if the 51 inch width is what drives the order, check the length offering of the peer before swapping.
8) I need a dummy function exit device but the opening is a wide stile door. What can I use instead of the Falcon 2091DT?
The Falcon 2091DT is a narrow stile device built for aluminum storefront doors, not wide stile. For a dummy function on a wide stile door, the Detex Advantex 00 Series is a super heavy duty Grade 1 dummy exit device with wide stile design, and the Sargent 12-8810-LTRIM is a fire rated Grade 1 wide stile rim device in dummy function with RX and MELR.
9) I need keyed exterior access instead of the Falcon 2091DT dummy pull. What device should I quote?
The Falcon 2091DT is non-keyed with a 9970 dummy pull, so it gives exterior access without key control. If you need a night latch instead, the Sargent 8504 is a Grade 1 narrow stile rim exit device in night latch function, and the Detex V4003A/03AN is a Grade 1 wide stile rim device with night latch trim. The Corbin Russwin ED4200 narrow stile Grade 1 device is exit only but accepts trim.
10) My storefront door is thicker than 1-3/4 inches. What rim exit device covers that instead of the Falcon 2091DT?
The Falcon 2091DT is specified for 1-3/4 inch door thickness. For thicker doors, the Adams Rite 8800 Series narrow stile Grade 1 rim device covers 1-3/4 to 2-1/4 inches, the DORMA 9300 Series 48 inch heavy duty Grade 1 wide stile device covers 1-3/4 to 2-1/4 inches, and the SDC S6136 electrified rim device covers 1-3/4 to 2 inches.
11) How much does the Falcon 2091DT crossbar stick out from the door face?
Projection is 4-3/8 inches off the door. Worth checking against anything in the swing path on the push side, such as a wall, a return leg, or a second leaf on a pair, before you set the device height.
12) What finishes does the Falcon 2091DT come in for matching existing storefront hardware?
Four: P13 dark bronze anodized aluminum, P28 satin aluminum clear anodized, P35 flat black coated, and US26D satin chrome. P28 is the usual match for clear anodized storefront; P13 pairs with dark bronze framing.
13) Can I hold the door in a pushed state during business hours with the Falcon 2091DT?
Yes. Standard hex key dogging is included, so you can dog the crossbar down and leave the latch retracted for daytime traffic, then undog at close. Mounting screws are concealed, which is why you need the hex key rather than a screwdriver at the bar.
14) I am standardizing storefront exit hardware across a portfolio. What makes the 2091DT a narrow stile device rather than a wide stile one?
The 2090 Series uses a narrow stile center case and aluminum crossbar, sized to the thin vertical rail on an aluminum storefront leaf. Wide stile devices, like the BEST Precision 2101 or the Von Duprin 22 Series pushpad, need a wider rail and will not land correctly on a storefront stile. If your portfolio is a mix, expect to spec both families rather than one device everywhere.
15) Can the Falcon 2091DT be keyed into my building master key system?
No. The 2091DT is a non-keyed device with dummy trim, so there is no cylinder to key. If the opening needs keyed re-entry from outside, you want a keyed rim device or a night latch trim version, for example the Sargent 8504 narrow stile night latch rim device.
16) Which crossbar rim exit devices compare to the Falcon 2091DT rather than a pushpad style?
The Falcon 2091DT uses an aluminum crossbar in a narrow stile center case. Other crossbar rim devices include the Corbin Russwin ED3200, a Grade 1 48 inch crossbar rim device for 1-3/4 inch doors in wide stile, and the CRL Jackson 1095 Series 48 inch crossbar rim panic device in wide stile. Both are wide stile, so they suit hollow metal or wood door stiles rather than the narrow aluminum storefront stile the 2091DT is cut for.
17) The Falcon 2091DT has to be ordered by hand. Which comparable rim devices are non-handed?
The Falcon 2091DT is ordered in left hand reverse or right hand reverse. If you would rather stock a single non-handed unit, the BEST 2401 Series is a narrow stile rim exit device that is exit only and non-handed, the BEST Precision 5101 Series is a non-handed universal design rim device, the CRL Jackson 1295 Series is a non-handed push pad rim panic device for 1-3/4 inch doors, and the Sargent 2828 and 3828 are Grade 1 reversible rim devices for 48 inch minimum door width.
18) If I need electrified access control on a narrow stile storefront door instead of the Falcon 2091DT dummy trim, what are the options?
The Falcon 2091DT is a mechanical non-keyed dummy device. For electrified narrow stile applications, the SDC MSB550 Series 36 inch mechanical switch bar with electromagnetic lock release and the SDC SureExit PSB560 Series 36 inch pressure sense bar both fit narrow or wide stile. The Dormakaba QED200 is a Grade 1 heavy duty narrow exit device, and the Dormakaba E2103 with 4908A trim is a 36 inch electrified rim device in classroom function.
19) I need a concealed vertical rod device rather than the surface rim style of the Falcon 2091DT. What fits a narrow stile door?
The Falcon 2091DT is a rim device with a 4-3/8 inch projection mounted on the door face. For a concealed vertical rod layout, the Hager 4601 Series is a 36 inch Grade 1 concealed vertical rod narrow stile exit device, and the Hager 4501 Series is a 36 inch Grade 1 concealed vertical rod device with a wide stile pushpad. Concealed rod devices require door prep at the top and bottom rails, so verify the door can accept it.
