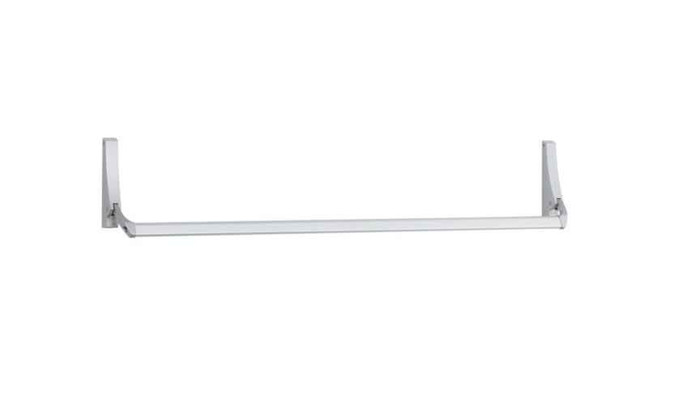

Falcon 2092NL-OP/HB-OP Narrow Stile Rim Exit Device with Night Latch/Hold Back Function - 51 Inch

Falcon 2092NL-OP/HB-OP Narrow Stile Rim Exit Device with Night Latch/Hold Back Function - 51 Inch

Grade 1 Commercial Exit Device for Aluminum Storefront Applications

The Falcon 2092NL-OP/HB-OP is a Grade 1 narrow stile rim exit device from the 2090 Series, specifically designed for 51-inch aluminum storefront doors with 1-3/4" thickness. This commercial-grade exit device features dual cylinder functionality with night latch and hold back options, providing flexible key control for single door applications. ANSI A156.3-2001 certified with UL305 listing, this device offers reliable egress performance with a classic aluminum storefront design and 4-3/8" projection.

Professional Features & Benefits

• 51-Inch Length: Designed specifically for 51" door applications with narrow stile aluminum construction for optimal fit and performance.
• Grade 1 Durability: ANSI A156.3-2001 certified construction ensures heavy-duty performance for demanding commercial applications.
• Dual Cylinder Function: Night latch option retracts latch without unlocking exit device, while hold back option retracts and holds latch back for flexible access control.
• Narrow Stile Design: Aluminum crossbar and center case specifically engineered to fit small stile aluminum doors with 1-3/4" thickness range.
• Non-Handed Installation: Field-reversible design offers convenient installation flexibility without requiring specific door handing.
• Tamper-Resistant Features: Standard hex dogging and concealed mounting screws prevent unauthorized tampering and adjustment.
• Retrofit Compatible: Ideal for commercial and retail retrofit applications requiring durable crossbar solutions on existing aluminum doors.
• 10-Year Limited Warranty: Comprehensive manufacturer warranty provides long-term protection and confidence in product reliability.

Technical Specifications

• ANSI/BHMA: ANSI A156.3-2001
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Hand Direction: Yes
• Door Thickness Range: 1-3/4"
• Grade: Grade 1
• Lock Function: Exit Only
• Product Category: Exit Devices and Trim
• Product Function: Exit Only
• Product Group: Exit Devices and Trim
• Product Model: 2092NL-OP/HB-OP
• Product Projection: 4-3/8"
• Product Size: 51"
• Product Subgroup: Exit Devices - Rim
• Product Type: Exit Devices - Rim
• Series: 2090 Series
• Stile Type: Narrow Stile
• Subcategory: Rim Type Cross Bar Exit Device
• Trim Hardware: Less Trim
• Wood Door Compatible: No

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness of 1-3/4" and narrow stile aluminum construction compatibility.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces, ensuring proper alignment for the 4-3/8" projection.
3. Prepare door by drilling required holes and routing as specified in manufacturer instructions for rim-type mounting.
4. Install all mounting hardware using concealed mounting screws and secure the device to door per manufacturer torque specifications.
5. Configure cylinder functions for either night latch operation (key retracts latch without unlocking exit device) or hold back operation (key retracts and holds latch back) as required.
6. Test device operation including crossbar activation, cylinder functions, and hex dogging mechanism to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings with Aluminum Storefronts
• Retail Establishments and Shopping Centers
• Educational Facilities with Aluminum Door Systems
• Healthcare Institutions requiring Grade 1 egress
• Government and Municipal Buildings
• Industrial Facilities with Aluminum Construction
• Multi-Tenant Commercial Properties

Why Choose Falcon Quality?

Falcon 2090 Series exit devices deliver professional-grade reliability with aluminum construction and Grade 1 ANSI A156.3-2001 certification for demanding commercial applications. UL305 listed with a comprehensive 10-year limited warranty, this narrow stile rim device is engineered specifically for aluminum storefront doors where dependable egress performance and tamper-resistant operation are essential.
