Falcon Falcon 25-M-EO Series - Exit Only (No Trim) - Mortise Exit Device - 4 FT FAL-25-M-EO-4FT

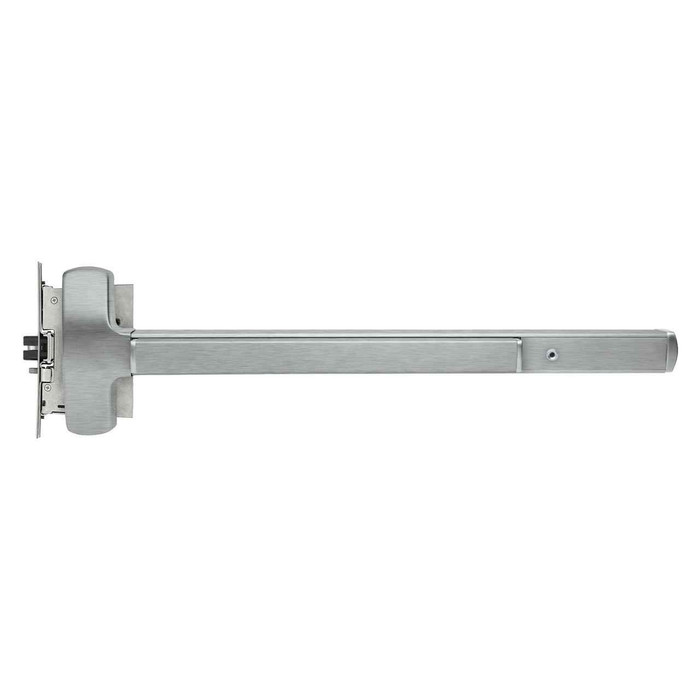

Falcon 25-M-EO Series Mortise Exit Device - Exit Only - 48" Wide Stile - Grade 1

(No reviews yet) Write a Review

Model: 25-M-EO 4 US26D
$2,021.00
$1,373.85
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,021.00
$1,373.85
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Falcon 25-M-EO Series Mortise Exit Device - Exit Only - 48" Wide Stile - Grade 1

Heavy-Duty Architectural Exit Device for High-Traffic Commercial Applications

The Falcon 25-M-EO Series mortise exit device delivers professional-grade egress control for demanding commercial installations. This 48" wide stile device features extruded aluminum construction with a 3/4" latch throw and 2-3/4" projection, designed for 1-3/4" door thickness applications. ANSI A156.3-2001 Grade 1 certified for superior durability and performance in high-traffic environments.

Professional Features & Benefits

  • Heavy-Duty Construction: Extruded aluminum construction delivers greater strength and impact resistance for long-term reliability in commercial applications.
  • Grade 1 Performance: ANSI A156.3-2001 Grade 1 certification ensures superior durability and performance standards for high-traffic installations.
  • Wide Stile Compatibility: 48" length designed for wide stile door applications with 1-3/4" door thickness range.
  • Mortise Configuration: 3/4" latch throw with 2-3/4" projection provides secure latching in mortise door preparations.
  • Streamlined Design: No exposed screws or rivets on the back of the device for clean lines and attractive installation appearance.
  • Vandal-Resistant Features: Stainless steel push pad cover provides scratch-resistant pushing surface with flush-end caps that resist damage in abusive situations.
  • Field Reversible: Adaptable for various door hand directions without requiring separate handed units.
  • Fire Safety Compliance: UL listed panic exit device with available A or B label fire rating options for code compliance.

Technical Specifications

  • ANSI/BHMA: ANSI A156.3-2001
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Field Reversible
  • Door Strike: 1279 Str3 ike standard
  • Door Thickness Range: 1-3/4"
  • Grade: Grade 1
  • Latch Throw: 3/4"
  • Lock Function: Exit Only
  • Lock Type: Mortise
  • Product Category: Exit Devices and Trim
  • Product Function: Exit Only
  • Product Group: Exit Devices and Trim
  • Product Projection: 2-3/4"
  • Product Size: 48"
  • Product Subgroup: Exit Devices - Mortise
  • Product Type: Exit Devices - Mortise
  • Series: 25 Series
  • Stile Type: Wide Stile
  • Subcategory: Mortise Exit Devices
  • Trim Hardware: Less Trim

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness of 1-3/4", mortise pocket dimensions, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for mortise installation.
  3. Prepare door by cutting mortise pocket and drilling required holes per manufacturer specifications for the 25-M Series device.
  4. Install all mounting hardware and secure the device to door with 3/4" latch throw alignment and 2-3/4" projection clearance per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion with field reversible configuration as needed.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Falcon Quality?

Falcon 25-M-EO Series exit devices deliver professional-grade reliability with extruded aluminum construction and ANSI A156.3-2001 Grade 1 certification for demanding commercial applications. UL listed panic exit hardware with fire rating options ensures code compliance and dependable emergency egress performance. Engineered for high-traffic installations where consistent operation and durability are essential.

Product Specs

Product Group:
Exit Devices and Trim
Series:
25 Series
ANSI/BHMA:
ANSI A156.3-2001
Product Subgroup:
Exit Devices - Mortise
Product Type:
Exit Devices - Mortise
Subcategory:
Mortise Exit Devices
Latch Throw:
3/4"
Commercial/Residential:
Commercial
Grade:
Grade 1
Lock Type:
Mortise
Stile Type:
Wide Stile
Lock Function:
Exit Only
Product Function:
Exit Only
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Size:
48"
Product Projection:
2-3/4"
Trim Hardware:
Less Trim
Door Strike:
1279 Str3 ike standard
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Falcon 25-M-EO 4 US26D – Frequently Asked Questions

1) Will the Falcon 25-M-EO mortise exit device fit a 1-3/4 inch door?
That is the only thickness the Falcon 25-M-EO is built for. The door thickness range is 1-3/4 inches flat, which is standard commercial door thickness, so it drops onto typical hollow metal or wood commercial leaves but is not a device to specify for a 1-3/8 inch older interior door. The door also has to be prepped for a mortise lock pocket, not a rim strike.
2) Is the Falcon 25-M exit device for wide stile or narrow stile doors?
Wide stile. The 25-M is a 48 inch device with 2-3/4 inch projection, sized for wide stile wood and hollow metal openings. If the opening is a narrow stile aluminum storefront leaf, this is the wrong device and you want a narrow stile mortise device instead, such as the Adams Rite 8400 Series for aluminum doors or the Von Duprin 5575 narrow stile crossbar mortise device.
3) What does Exit Only mean on the Falcon 25-M-EO, and can I add a lever on the outside later?
Exit Only means there is no outside trim at all. The device latches the door and the push pad releases it from the egress side; from the outside the door is simply locked, with no lever, no key, no pull. It ships less trim. If you need someone to come back in through that opening, the 25-M-EO is not the configuration to buy. You can order it with the NL-OP night latch option, which adds an optional pull, or step to a device built to take lever trim, such as the Corbin Russwin ED5600AL, which is exit only or accepts passage or classroom lever trim.
4) Do I have to order the Falcon 25 Series mortise exit device handed?
Handing is picked on the order, right hand or left hand, but the device itself is field reversible, so it can be adapted in the field for either hand without a different unit. That matters if you are buying several for a building and want spares that will go on any opening.
5) Will the Falcon 25-M latch into the strike that is already in my frame?
Only if the frame carries a mortise strike prep. The 25-M throws a 3/4 inch latchbolt into a mortise strike, and the 1279 strike is the standard one for it. A frame prepped for a rim device strike or for a cylindrical lock will not accept it, so the frame either needs the mortise strike prep already or has to be prepped for it.
6) Is the Falcon 25-M-EO fire rated, and can I use it on a labeled door?
Rating is a choice at order time, non rated or fire rated, so a labeled opening needs the fire rated version specified. Note that fire rated devices are supplied without dogging, so do not spec hex or cylinder dogging on a labeled door. If you are shopping strictly for a fire rated wide stile mortise device, the Adams Rite 3300 Series is a fire rated Grade 1 wide stile mortise device for wood and hollow metal doors.
7) Can the Falcon 25-M mortise exit device be tied into an access control system?
Yes, and the options are picked when ordering. Electric locking comes as FSA fail safe, which unlocks on power loss, or FSE fail secure, which stays locked when power drops and is the usual choice on a perimeter door. On top of that you can add an RX request to exit switch, latchbolt monitoring (DM or LM), MEL motorized electric latch retraction for remote unlocking, or an EA exit alarm. Decide fail safe versus fail secure against your egress and fire alarm scheme before ordering, since it is not a field change.
8) What is the closest wide stile mortise exit device to the Falcon 25-M-EO if I need a Von Duprin instead?
The Von Duprin 9875 is the nearest wide stile mortise exit device match. Like the Falcon 25-M-EO, it is Grade 1 and built for 1-3/4 inch doors, and it is non-handed out of the box where the Falcon 25-M-EO is field reversible. The 9875 is a smooth case design and is listed as non fire rated, so for an opening that needs a labeled device the Falcon 25-M-EO with its fire rated option is the one that covers it. Note the 9875 is offered in a 3 ft length while the Falcon 25-M-EO covered here is a 48 inch device, so confirm the stile width you are covering.
9) I need a fire labeled mortise exit device on a wood door - will the Falcon 25-M-EO work or should I look at something else?
The Falcon 25-M-EO is ordered with a Non Rated or Fire Rated selection, so the fire label is available on it. If the opening is a wood door, the Adams Rite 3300 is the peer to weigh: it is a Grade 1 wide stile mortise exit device that is fire rated and is built for wood and hollow metal doors. The Von Duprin 9875 and 8875 are both listed as not wood door compatible, so those two drop out of a wood door job regardless of label.
10) I ordered the Falcon 25-M-EO exit only but now need classroom lever trim on the outside - what do I use instead?
The Falcon 25-M-EO is an exit only device supplied less trim, and it is also available in an NL-OP night latch optional pull configuration. If the opening needs a lever from the outside, the Corbin Russwin ED5600AL is the peer to specify: it is a Grade 1 mortise exit device for 1-3/4 inch doors that is either exit only or accepts passage or classroom lever trim, with a 3 hour fire rating and wide stile construction. The lever trim itself is not included with it.
11) Which dogging option should I pick on a Falcon 25 Series exit device?
Three choices: hex dogging, cylinder dogging, or less dogging. Hex dogging holds the push pad depressed with an allen wrench so the door pushes free during business hours, and it is the usual pick for retail and office entries. Cylinder dogging does the same but keys it, which is what you want when the public can reach the device and you do not want the pad dogged by anyone with a hex key. Less dogging is the right answer on a fire rated opening.
12) What grade is the Falcon 25 Series exit device, and is it enough for a school or hospital corridor?
Grade 1 to ANSI A156.3-2001, which is the heaviest duty tier for exit devices and the level normally specified for institutional and high traffic commercial openings. Construction is extruded aluminum with a stainless steel push pad cover, so the wear surface takes cart and hand traffic. For a facility standardizing across many doors, Grade 1 is the spec line to hold.
13) How much does the Falcon 25-M exit device stick out from the door face?
Projection is 2-3/4 inches off the door face. That is the clearance figure to check against a door that swings into a corridor with a required clear width, against wall mounted equipment near the opening, and against the throw of a hold open arm or a magnetic holder on the pull side.
14) What is the difference between a mortise exit device and a rim or vertical rod device?
A mortise device like the Falcon 25-M puts the lock body inside a pocket cut in the door edge and throws a 3/4 inch bolt into a mortise strike in the jamb. It gives a clean single point latch on a single door and hides the lock case, but it demands a mortise prep in the door. A rim device surface mounts and needs only a rim strike, which is easier on retrofits. Surface vertical rod devices latch at the head and threshold instead, which is what you use on a pair of doors with no center mullion, such as the Sargent 1256NB-8710G 84 inch surface vertical rod device. On a single door in a prepped frame, mortise is the tidier answer.
15) I need a wide stile mortise exit device but not this brand. What else works?
Several Grade 1 wide stile mortise devices cover the same opening. The Von Duprin 9875-3FT smooth case and the Von Duprin 8875-3FT crossbar are both non handed Grade 1 wide stile mortise devices for 1-3/4 inch doors, though both are for metal doors rather than wood. The Von Duprin 9475/9575 Impact Series uses a recessed push pad for abuse prone openings. The Adams Rite 8300 Series and the Detex 30 Series Advantex are Grade 1 wide stile mortise devices as well, and the Detex is not for wood doors. Where the door is wood or hollow metal and labeled, the Adams Rite 3300 is the fire rated one.
16) What does the NL-OP option add to the Falcon 25-M, and is it the same as a night latch device?
NL-OP is night latch with an optional pull. It gives the outside of the door a pull rather than leaving it bare like the straight EO version, with key retraction of the latch, so staff can get back in at a service or back of house door while the opening stays locked to everyone else. Both EO and NL-OP are offered across all twelve finishes. If you want a purpose built night latch mortise device from another line, the Sargent 8904 is a wide stile night latch mortise device and the Sargent 8304 is the narrow stile one.
17) Is a crossbar mortise exit device an equivalent substitute for the Falcon 25-M-EO push pad device?
They cover the same opening but they are not the same touchpiece. The Falcon 25-M-EO is a push pad device with a stainless steel push pad cover and no exposed screws or rivets on the back of the device. The Von Duprin 8875 is a wide stile crossbar mortise exit device, Grade 1, non-handed, for 1-3/4 inch doors in a 36 inch length, and the Von Duprin 5575 is the narrow stile crossbar equivalent. If the other doors in the building already carry crossbars and you are matching appearance, the crossbar devices are the match; if the building is on push pads, the Falcon 25-M-EO keeps the fleet consistent.
18) If I need a night latch mortise exit device rather than exit only, what are the alternatives to the Falcon 25-M-EO?
The Falcon 25-M-EO is an exit only device and can be ordered in an NL-OP night latch optional pull configuration. Among the peers, the Sargent 8904 is a Grade 1 wide stile mortise exit device in the night latch function with 24VAC/DC operation, and the Sargent 8304 is the narrow stile Grade 1 night latch mortise device. Pick the 8904 for a wide stile door and the 8304 where the stile is narrow.
19) For an abuse-prone door, how does the Falcon 25-M-EO compare with the Von Duprin Impact series?
Both are Grade 1 wide stile mortise exit devices. The Falcon 25-M-EO uses extruded aluminum construction with a stainless steel push pad cover and flush end caps intended to resist damage in abusive situations. The Von Duprin 9475/9575 Impact Series uses a recessed push pad for wide stile doors and is listed as non fire rated. The recessed pad sits back from the device face; the Falcon 25-M-EO presents a flush stainless pad and can be ordered fire rated if the opening carries a label.
20) Is the Sargent 810 a substitute for the Falcon 25-M-EO?
No. The Sargent 810 is dummy pull exit device trim in the PE80 Series with a dummy function - it is a pull on the door face, not an operating exit device with a latch. The Falcon 25-M-EO is a mortise exit device with a 3/4 inch latch throw that provides egress. If you need the pull for the non-egress leaf and the working device for the egress leaf, those are two separate line items.
21) Does a surface vertical rod device like the Sargent 1256NB-8710G do the same job as the Falcon 25-M-EO?
They are different door preparations. The Falcon 25-M-EO is a mortise device with a 3/4 inch latch throw into a mortise pocket in the door edge. The Sargent 1256NB-8710G is a Grade 1 narrow stile surface mount vertical rod exit device with electric latch retraction in an 84 inch size, which latches top and bottom through surface mounted rods rather than a mortise lock. Vertical rod is what you use on a pair of doors without a mullion; a mortise device like the Falcon 25-M-EO suits a single door or a door with a mullion.
22) How does the Detex 30 Series Advantex compare with the Falcon 25-M-EO for a device-only exit opening?
Both are Grade 1 wide stile mortise exit devices supplied without outside trim - the Detex 30 Series Advantex is listed as device only, exit only, and the Falcon 25-M-EO is an exit only device supplied less trim. The difference that decides it is the door material: the Detex 30 is listed as not wood door compatible, so on a hollow metal or aluminum opening either works, while a wood door pushes you toward a device rated for it.
23) What finishes does the Falcon 25-M-EO mortise exit device come in?
Twelve finishes, so it can be matched to hardware already hanging in the building: 313AN dark bronze anodized, 643E aged bronze, US3 bright brass, US4 satin brass, US10 satin bronze, US15 satin nickel, US19 matte black, US26 bright chrome, US26D satin chrome, US28 aluminum anodized, US32 bright stainless steel and US32D satin stainless steel. US26D and US32D are the two that most commercial buildings are already standardized on.
24) I need an exit only mortise device with heavy wrought construction - how does the BEST Precision 2301 compare to the Falcon 25-M-EO?
The BEST Precision 2301 is a 2300 Series mortise exit device in the exit only function with heavy wrought construction. The Falcon 25-M-EO is also an exit only mortise device, built with extruded aluminum construction and carrying ANSI A156.3-2001 Grade 1 certification for 1-3/4 inch doors. Wrought and extruded are two different ways of forming the case, so the choice comes down to which construction your spec calls out.
