Falcon 718C 24/25 Series Narrow Escutcheon Night Latch Exit Device Trim Less Pull

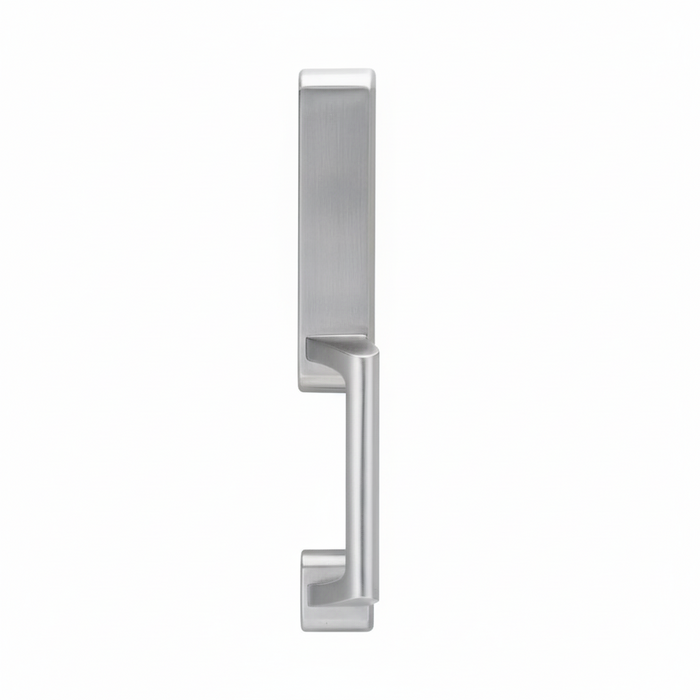

The Falcon 718DT is a heavy-duty, Grade 1 dummy exit device trim designed for use with the Falcon 24 and 25 Series exit devices. It features a streamlined "Delta" pull handle mounted on a narrow escutcheon, making it ideal for aluminum storefront doors or any application where a narrow stile is required.
As a Dummy Trim (DT), it has no mechanical operation; the handle is fixed and used primarily as a pull-to-open function when the exit device is dogged down or for doors that only require a matching aesthetic without a locking mechanism.
Key Features & Specifications
Key Features & Specifications
| Feature | Details |
| Series Compatibility | Falcon 24 Series (Narrow Stile) and 25 Series (Wide Stile) |
| Function | Dummy (DT) - Fixed pull, no cylinder or latch control |
| Trim Design | Delta Pull on a Narrow Escutcheon |
| Escutcheon Size | Approximately 8-1/8" x 1-7/8" |
| Overall Dimensions | Pull/Trim total height is approx. 14-1/16" |
| Projection | 2-1/4" from the door face |
| Handing | Field reversible (can be used for Left or Right Hand Reverse) |
| Certifications | ANSI/BHMA A156.3, Grade 1 |
Common Applications
-
Narrow Stile Doors: Specifically designed to fit the limited space of aluminum glass "storefront" doors.
-
High Traffic Areas: Built to withstand the abuse typical of offices, retail stores, and schools.
-
Aesthetic Continuity: Often used on the inactive leaf of a pair of doors to match the "Night Latch" (NL) or "Keyed" trim on the active leaf.
Why Choose Falcon Quality?
Falcon 718C exit device trim delivers professional-grade reliability with narrow escutcheon design optimized for commercial applications. The built-in functionality design ensures easy installation and field retrofit capabilities while maintaining secure night latch operation. Engineered for demanding commercial applications where dependable performance and compatibility with 24/25 Series exit devices is essential.
Manufacturer Resources
Falcon Exit Devices Catalog
Product Specs
- Series:
- 24/25 Series
- Subcategory:
- Exit Device Trim
- Product Group:
- Exit Devices and Trim
- Product Subgroup:
- Exit Device Trim
- Product Type:
- Exit Device Trim
- Keyed:
- No
- Electronic:
- No
- Commercial/Residential:
- Commercial
- Handle Type:
- Delta Offset Pull
- Product Model:
- 718DT
- Product Function:
- Dummy
- Product Category:
- Exit Devices and Trim
- Department:
- Door Hardware
