OVERVIEW
The versatile Falcon D100 deadbolt locks are grade 1 certified for durability and ideal for institutional, government, military, hospital, office and retail applications. Superior performance and the flexibility of multiple keying systems in a price sensitive design make them an easy choice. Small Format Interchangeable Cores are offered in many Best and Arrow equivalent open keyways as well as Falcon and Schlage keyways in a Conventional formats. D Series features an ADA-compliant thumbturn and an adjustable backset with a lock-in-place design. An integrated anti-pry shield behind the cylinder assembly adds security and simplifies installation, while the tapered front resists wrenching.
FEATURES & BENEFITS
Strength and security
Solid sintered steel bolt with hardened steel anti-saw pin
Metal dustbox anchors deep to reinforce wood door frames with three 3" screws to protect against kick-in attacks
Free spinning, tapered trim ring resists wrenching and prying
Integrated security shield protects bolt from ice-pick attack through the door
Adjustable backset has a lock-in-place helix design
Available UL 10C 3-hour fire rated options (as auxiliary locks)
Key System Security
Open and restricted keyway options (Schlage C keyways also available)
Factory master keying available on Schlage C keyway
Orderable in two cylinder formats: Conventional and SFIC
Functional and aesthetic options
5 functions include keyless, single cylinder and double cylinder options
5 finish options
Integrated trim design requires fewer pieces out of the box and improves installation time
Functions
Keyless
D151 - thumbturn x thumbturn
Keyed single cylinder
D111 (E0171) Classroom deadbolt - thumbturn retracts only x cylinder
D121 (E0161) - blank rose x cylinder
D141 (E0151) - thumbturn x cylinder
Keyed double cylinder

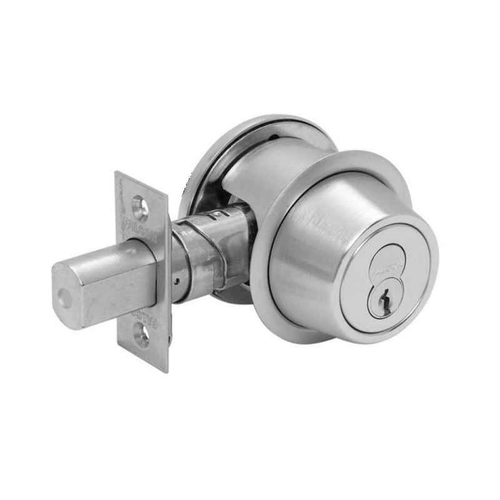

D131 (E0141) - cylinder x cylinder
Standard features
Deadbolt: 1" housing diameter; 0.82" x 0.62" x 1" throw; sintered steel with hardened steel anti-saw pin insert (drive-in options available)
Faceplate: 1-1/8" x 2-1/4" with square corners
Strike: 1-1/8" x 2-3/4" with square corners (ANSI, round corner and thimble strike options available)
Backset: adjustable 2-3/8" or 2-3/4"
Door range: 1-3/8"-1-7/8" Conventional and thumbturn only; 1-5/8"-2-1/4" SFIC
Reinforcement: Metal dust box reinforcer with three 3" screws
Trim ring: 1" wrought brass or bronze
Cylinder: 6-pin solid brass, keyed 5-pin, Falcon G keyway, keyed different (KD)
Keys: Two nickel silver cut keys per lock
Finishes
Weather-resistant for interior and perimeter applications
605 (US 3) bright brass
606 (US 4) satin brass
613 (US 10B) oil rubbed bronze
625 (US 26) bright chrome plated
626 (US 26D) satin chrome plated
Downloads and Resources
-
Product information
Related product information
- Falcon Keys, Keying Systems and Cylinders catalog
- Allegion BAA Compliance catalog
- Allegion US Green Building Council LEED brochure
- Whitepaper: Basics of Lock Functions
Technical resources
Manufacturer Resources
Product Specs
- Series:
- D100 Series
- Category:
- Mechanical Locks
- Subcategory:
- Deadbolts
- Grade:
- Grade 1
- Duty Level:
- Heavy Duty
- Keyed:
- Yes
- Keys Included:
- 2
- Standard Strike:
- Square Corner with metal dust box, 1-1/8" x 2-3/4"
- ANSI/BHMA:
- A156.5, 2001, Grade 1
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Product Type:
- Deadbolts
- Model:
- D121
- Electronic:
- No
- Function:
- Cylinder x Blank Rose
- Keyed Function:
- Single Cylinder
- Commercial/Residential:
- Commercial
- Cylinder and Keyways:
- G Keyway
- Lock Function:
- Deadbolt
- Product Attribute:
- Deadbolts
