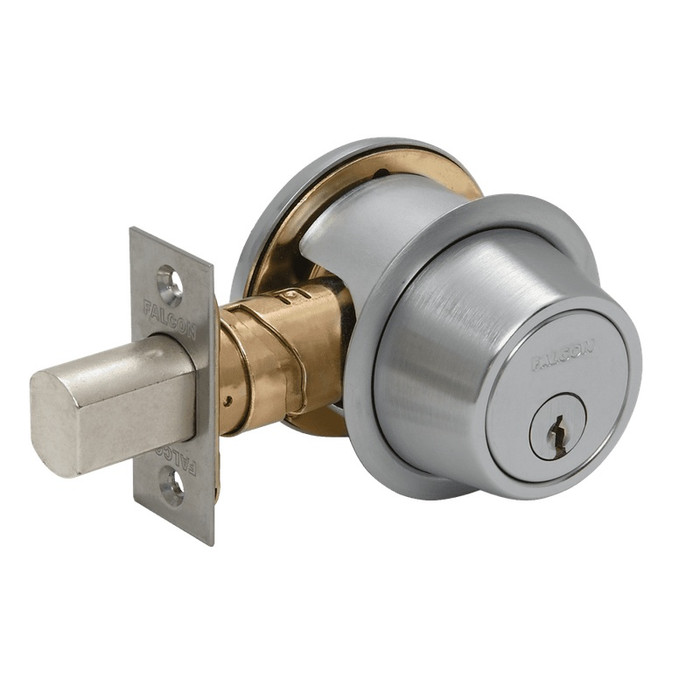

Falcon D221 Single Cylinder x Rose Function - Grade 2 Medium-duty Deadbolt Locks

OVERVIEW

Falcon D200 grade 2 deadbolts are built with many of the same features as the grade 1 offering including an adjustable backset with a lock-in-place design, a removeable anti-pry shield, and tapered free-spinning trim ring to resist wrenching. The bolt is made of solid zinc with an anti-saw hardened steel pin insert. Like other Falcon locks, they offer the versatility of numerous Best and Arrow equivalent open keyways in SFIC cylinders as well as Falcon and Schlage keyways in Conventional cylinder formats. Count on D200 deadlocks to deliver value and flexibility when and where you need it.

FEATURES & BENEFITS

Strength and security

Solid zinc bolt with hardened steel anti-saw pin
Metal dustbox anchors deep to reinforce wood door frames with three 3" screws to protect against kick-in attacks
Free spinning, tapered trim ring resists wrenching and prying
Integrated security shield protects bolt from ice-pick attack through the door
Adjustable backset has a lock-in-place helix design
Available UL 10C 3-hour fire rated options (as auxiliary locks)

Key System Security

Open and restricted keyway options (Schlage C keyways also available)
Factory master keying available on Schlage C keyway
Orderable in two cylinder formats: Conventional and SFIC

Functional and aesthetic options

8 functions include keyless, single cylinder and double cylinder options
5 finish options
Integrated trim design requires fewer pieces out of the box and improves installation time

Certification

ANSI/BHMA A156.5 Grade 2 certified
Available UL 10C listed as auxiliary locks (the letter F and UL symbol on latch front indicate listing)
ADA compliant thumbturn design
BAA (Buy American Act) compliant product

Functions

Keyless

D251 - thumbturn x thumbturn
D261 (E0192) Door bolt - thumbturn x no exterior trim
D261M (E01112) Door bolt - thumbturn x blank rose
D271 Door bolt with occupancy indicator - thumbturn x occupancy indicator plate

Keyed single cylinder

D211 (E0172) Classroom deadbolt - thumbturn retracts only x cylinder
D221 (E0162) - blank rose x cylinder

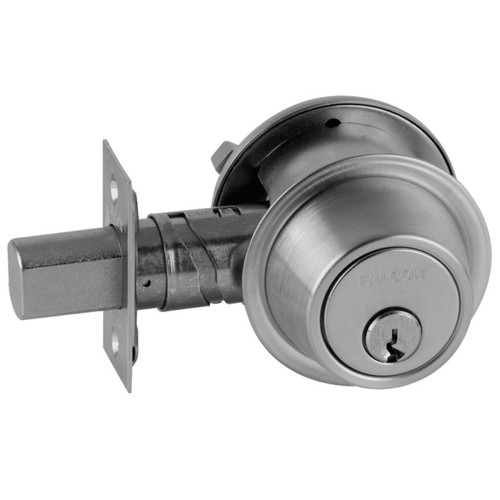

D241 (E0152) - thumbturn x cylinder

Keyed double cylinder

D231 (E0142) - cylinder x cylinder

Standard features

Deadbolt: 1" housing diameter; 0.82" x 0.62" x 1" throw; zinc with hardened steel anti-saw pin insert (drive-in options available)
Faceplate: 1-1/8" x 2-1/4" with square corners
Strike: 1-1/8" x 2-3/4" with square corners (ANSI, round corner and thimble strike options available)
Backset: adjustable 2-3/8" or 2-3/4"
Door range: 1-3/8"-2-1/4" Conventional and thumbturn only; 1-5/8"-2" SFIC
Reinforcement: Metal dust box reinforcer with three 3" screws
Trim ring: 1" wrought brass or bronze
Cylinder: 6-pin solid brass, keyed 5-pin, Falcon G keyway, keyed different (KD)
Keys: Two nickel silver cut keys per lock
