MA101 PASSAGE/CLOSET LOCKSET (ANSI F01)
- Non-Keyed Function
- Latch bolt operated by knob/lever from either side at all times.
- Inside knob/lever always free for immediate egress.
Ordering Considerations: If you would like a configuration that is not listed in the options above, let our trusted sales team help you, or specify your preferences in the customer notes field at checkout. For example, if you would like a spilt finish (e.g. the inside and outside trim have different finishes) please contact our trusted sales staff or specify your preference in the customer notes/message at check out.
FALCON MA SERIES OVERVIEW
The Falcon MA Series mortise locks are tough, stylish, and offer excellent value. They deliver heavy-duty Grade 1 performance at an attractive price point and incorporate robust components and sturdy design while offering stylish designs and many finish options.
They're well-suited for any office, educational facility, hospital, or other commercial settings.
The MA series is one of Falcon's toughest and most dependable locks and are designed to handle high-traffic, high-abuse environments. A wide variety of trim styles and finish options makes the MA series easy to match to existing or new design environments. For keyed models/functions, cylinders offered include the Small Format Interchangeable Core (SFIC) cylinders that can be removed quickly for easy, fast re-keying in high turnover environments.
ZenSupply carries one of the most comprehensive offering of Falcon MA Series locks. If we don't list it or can't build it from parts in inventory, it's unlikely to be found anywhere else.
FEATURES & BENEFITS
Security
- Forged escutcheons for added strength
- UL listed and certified Operational Grade 1 and Security Grade
- Cold-formed steel, zinc plated with dichromate for corrosion resistance
Compatibility
- Conventional cylinders or interchangeable core (IC) keying compatible with SFIC products from Falcon or other manufacturers
- Lever and knob trim packages are available for many applications
- Wide variety of levers and knobs, functions and finishes
Convenience
- Ability to easily re-hand the lock in the field
- Flexible trim and finish styles to match any design
- 2-piece anti-friction stainless steel, field reversible latch bolt
For more specifications and certifications, view the Falcon Locks Catalog.
- ANSI/BHMA: meets ANSI/BHMA 156.13, Series 1000
- UL: 3-hour A label
- All knobs and levers are available with abrasive coating to identify entrances to hazardous areas to the handicapped
- Locksets and latch sets are available with lead-wrapping for use on X-ray room doors (or similar situations)
- Both knob and lever trim packages are available to allow complete replacement of inner and outer trim on any lock function
- Packages include inside and outside trim, spindle and mounting screws. Please see the current price book for more details
- Manufactured from heavy gauge brass or stainless steel
- Meets ANSI Standard A115.1 for frame preparation
- Strikes are available with various lip lengths
- Standard thumbturn-threaded cylinders for dead bolt operation may be used in lieu of surface-mounted thumbturns
- Furnished with A09894-1 cam
- Available in length indicated and all MA Series finishes
DOWNLOADS & RESOURCES
- Falcon Locks Catalog
- Falcon MA Series Sell Sheet
- Falson MA Series Classroom Security Indicator Sell Sheet
- Allegion Connect Data Sheet
- Multi-Family Suiting Solutions
Factory Standard/Default Product Specifications
Cylinder and keying related items apply to keyed functions only.
ANSI/BHMA: Certified ANSI/BHMA 156.13, Series 1000, Grade 1.
UL: Listed 3-hour fire door, A label.
Functions: 26 mechanical and 2 electrified (12 or 24 VDC) commercial functions available.
Finishes: 9 options available.
Door thickness: Standard offering only accepts door thicknesses of 1-3⁄4" to 1-7⁄8". If door thickness is between 1-7⁄8" and 2-1⁄2", please specify door thickness in the customer notes at checkout. *Additional charge for non-standard door thickness.
Backset: 2-3⁄4" only.
Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
Hubs: Hardened steel.
Handing: Right hand is standard; left hand optional. Reversible in the field.
Cylinders: Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. Pinning in 6 chambers available (at no cost) when specified. Optional 7-pin conventional and 6- or 7-pin Small Format Interchangeable Core (SFIC) cylinders. Mortise and cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard. Hotel function cylinders available. For details, see price book. SFIC cylinder information on page 8.
Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on SFIC cylinders. Additional options: Falcon, Schlage and many Best and Arrow keyways.
Bind resistant trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
Latch bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3⁄4" projection.
Dead bolt: 1" throw, stainless steel with two 3⁄16" diameter hardened steel, free-turning, saw-resistant roller.
Faceplates: (armored front) 1 1⁄4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
Indicator options: Occupied/Vacant or Locked/Unlocked.
Levers, knobs, roses, and escutcheons
- Cast or forged levers: Avalon, Dane, Quantum, Boardwalk, Broadway, Latitude, Longitude
- Wrought brass or stainless levers/knobs: Sutro, Hana
- Wrought rose and forged or wrought escutcheons are standard
- Specify lever/knob style and rose/escutcheon style using the product configurator
Abrasive strip levers
Avalon, Dane, Quantum, and Sutro levers are available with an abrasive strip along the inside length of the lever to identify entrances that may be to areas hazardous to the handicapped. To order, please specify your preference in the customer message/notes at checkout or contact our helpful sales reps. Not available on 613 finish as abrasive strip will not hold. Knurling option is also available for these same levers. Additional charges apply.
Finishes
Levers: available in BHMA 605, 606, 613, 619, 622, 625, 626, 630, and 643e.
Knobs: available in BHMA 619, 622, and 643e. See page 6 for finish color and comparative chart. Mortise and rim cylinder Housings: available in 605, 606, 613, 619, 622, 626, 629, 630, and 643e.
Table of MA Series Functions/Models
Catalog Number | ANSI Function | Name | Keyed | Description |
Single Cylinder Functions | ||||
MA451 | F15 | Hotel guest lock | Single Cylinder Function | Latch bolt operated by key from outside or by operating inside knob/lever. Outside knob/lever is always inoperative. Dead bolt projected by turn from inside and all keys except emergency key are shut out. Operating inside knob/lever retracts both bolts. Auxiliary dead latch. Inside knob/lever always free for immediate egress. |
MA521 | F04 | Entry/office lock with button lockout | Single Cylinder Function | Latch bolt operated by knob/lever from either side except when outside knob/lever is made inoperative by buttons in face. When outside knob/ lever is locked, latch bolt is retracted by key from outside or by operating inside knob/lever. Auxiliary dead latch. Outside knob/lever is unlocked by button on face. Inside knob/lever always free for immediate egress. |
MA531 | F12/F20 | Apartment corridor lock | Single Cylinder Function | Latch bolt operated by knob/lever from either side, except when outside knob/lever is made inoperative by buttons in face. Dead bolt operated by key outside or turn inside. Key outside operates both bolts. Operating inside knob/lever retracts both bolts and outside remains locked. Latch bolt is deadlocked when outside knob/lever is made inoperative or when the dead bolt is projected. When dead bolt is retracted, knob/lever is unlocked by buttons in face. Inside knob/lever always free for immediate egress. |
MA541 | F21 | Entry/office lock | Single Cylinder Function | Latch bolt operated by knob/lever from either side. Dead bolt operated by key from outside or turn from inside. |
MA551 | F06 | Holdback lock | Single Cylinder Function | Latch bolt operated by lever from either side except when outside lever is locked from outside by key. Latch bolt can be locked in a retracted position by key. When outside lever is locked, latch bolt is retracted by key from outside or by operating inside lever unless latch bolt has been locked in a retracted position. Auxiliary dead latch. To activate the Holdback Function – from the unlocked position rotate the outside lever/knob to retract the latchbolt. Rotate key 360°. Release lever/knob. To release Holdback Function, rotate key 360° clockwise. Inside knob/lever always free for immediate egress. Note: Chassis is handed. |
MA561 | F05 | Classroom lock | Single Cylinder Function | Latch bolt operated by knob/lever from either side except when outside knob/lever is locked from outside by key. When outside knob/lever is locked, latch bolt is retracted by key from outside, or by operating inside knob/lever. Auxiliary dead latch deadlocks latchbolt when door is closed. Inside knob/lever always free for immediate exit. |
MA571 | F13 | Dormitory or exit lock | Single Cylinder Function | Latch bolt operated by knob/lever from either side. Dead bolt projected by key from outside and turn from inside. Operating inside knob/lever retracts both bolts and unlocks outside. Inside knob/lever always free for immediate egress. |
MA581 | F07 | Storeroom lock | Single Cylinder Function | Latch bolt operated by key from outside or by operating inside knob/lever. Outside knob/lever is always inoperative. Auxiliary dead latch. Inside knob/ lever always free for immediate egress. |
MA621 | F08/F10 | Apartment corridor lock with button lockout | Single Cylinder Function | Latch bolt is operated by knob/lever from either side, except when outside knob/lever is made inoperative by buttons in face. Dead bolt is operated by turn inside. Key outside operates both bolts. Outside knob/lever is unlocked by button on face. Inside knob/lever always free for immediate egress. |
MA641 | N/A | Dormitory lock | Single Cylinder Function | Latch bolt by knob/lever inside and key outside. Inside knob/lever free. Outside knob/lever rigid. Deadbolt by key outside or T-turn inside. Rotating inside knob/lever retracts both bolts. Deadlocking latch. Inside knob/lever always free for immediate egress. |
MA851 | N/A | Storeroom-Fail Safe EL | Single Cylinder Function | MA851-12/MA851-24 Latch bolt operated by knob/lever from either side except when outside knob/lever is electrically locked. When outside knob/lever is locked, latch bolt retracted by key in outside cylinder. Deadlocking latch. Specify 12 or 24V DC. Inside knob/lever is always free for immediate egress. 12V is default. |
MA851-RX | N/A | Storeroom-Fail Safe EL w/ Request to Exit (RX) | Single Cylinder Function | MA851-12RX/MA851-24RX Latch bolt operated by knob/lever from either side except when outside knob/lever is electrically locked. When outside knob/lever is locked, latch bolt retracted by key in outside cylinder. RX monitors lever rotation from both sides. Compatible with normally open systems. Deadlocking latch. Specify 12 or 24V DC. Inside knob/lever is always free for immediate egress. 12V is default. |
MA881 | N/A | Storeroom-Fail Secure EU | Single Cylinder Function | MA881-12/MA881-24 Latchbolt operated by knob/lever from inside except when outside knob/lever is electrically unlocked, then knob/lever from either side. When locked, key in outside cylinder retracts latch bolt. Specify 12 or 24V DC. Deadlocking latch. Inside knob/lever is always free for immediate egress. 12V is default. |
MA881-RX | N/A | Storeroom-Fail Secure EU w/ Request to Exit (RX) | Single Cylinder Function | MA881-12RX/MA881-24RX Latchbolt operated by knob/lever from inside except when outside knob/lever is electrically unlocked, then knob/lever from either side. When locked, key in outside cylinder retracts latch bolt. RX monitors lever rotation from both sides. Compatible with normally open systems. Deadlocking latch. Specify 12 or 24V DC Inside knob/lever is always free for immediate egress. 12V is default. |
Double Cylinder Functions | ||||
MA371 | F14 | Store door lock | Double Cylinder Function | Latch bolt operated by knob/lever from either side. Dead bolt operated by key from either side. |
MA381 | F09 | Apartment exit lock | Double Cylinder Function | Latch bolt operated by knob/lever from either side, except when outside knob/lever is locked by key from inside. When outside knob/lever is locked, latch bolt is retracted by key from outside or by operating inside lever. Auxiliary dead latch. Inside knob/lever always free for immediate egress. |
MA411 | F30 | Asylum lock | Double Cylinder Function | Latch bolt operated by key from either side. Both knobs/levers always inoperative. Auxiliary dead latch. |
MA431 | F34 | Security lock with deadbolt | Double Cylinder Function | Latch bolt operated by knob/lever from either side except when outside knob/lever is locked from inside or outside by key. Dead bolt retracted by key from inside or outside. Operating inside knob/lever retracts both bolts and unlocks outside. Latch bolt dead locked when dead bolt is thrown. Inside knob/lever always free for immediate egress. |
MA441 | F32 | Classroom security lock | Double Cylinder Function | Latch bolt operated by knob/lever from either side except when outside knob/lever is locked from inside or outside by key. When outside knob/lever is locked, latch bolt is retracted by key from inside or outside or by operating inside knob/lever. Auxiliary dead latch. Inside knob/lever always free for immediate egress. |
Non-keyed functions | ||||
MA101 | F01 | Passage/closet latchset | Non-Keyed Function | Latch bolt operated by knob/lever from either side at all times. Inside knob/lever always free for immediate egress. |

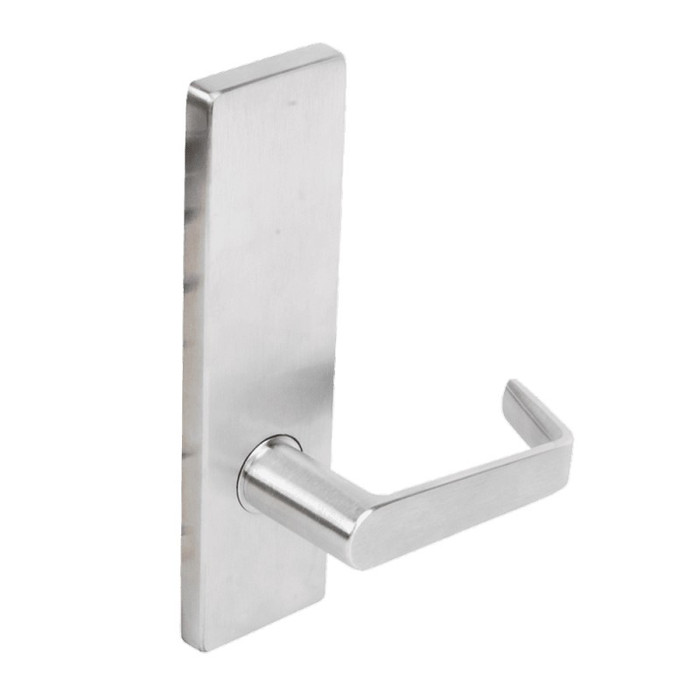

MA12 | N/A | Single dummy | Non-Keyed Function | Single dummy trim |
MA161 | F31 | Connecting room/exit lock | Non-Keyed Function | Latch bolt operated by knob/lever from inside. No trim outside. Auxiliary dead latch. |
MA18 | N/A | Double dummy | Non-Keyed Function | Double dummy trim |
MA301 | F02 | Privacy lock | Non-Keyed Function | Latch bolt operated by knob/lever from either side. Dead bolt operated by turn from inside and by emergency release from outside. |
MA311 | F19 | Privacy, bedroom or bath lock with inside lever release | Non-Keyed Function | Latch bolt operated by knob/lever from either side. Dead bolt operated by turn from inside and emergency release from outside. Operating inside knob/lever retracts both bolts. Inside knob/lever always free for immediate egress. |
MA321 | F22 | Privacy lock with no entry lockout | Non-Keyed Function | Latch bolt operated by knob/lever from either side except when outside knob/lever is locked by inside turn. Operating inside knob/lever, closing door or operating outside emergency release unlocks outside knob/lever. Inside knob/lever always free for immediate egress. |
Deadlocks - Escutcheon Only (No Lever Trim) | ||||
MA911 | F29 | Classroom dead lock | Single Cylinder Function | Key from outside operates dead bolt. Turn from inside retracts but does not project dead bolt. |
MA921 | F18 | Outside only deadlock | Single Cylinder Function | Dead bolt operated by key from outside only. |
MA931 | F16 | Two sided deadlock | Single Cylinder Function | Dead bolt operated by key from either side. |
MA941 | F17 | Deadlock with inside turn | Single Cylinder Function | Dead bolt operated by key from outside and by turn from inside. |
- Brand:
- Falcon
- Category:
- Mechanical Locks
- Subcategory:
- Mortise Locks
- Product Group:
- Mechanical Locks
- Series:
- MA Series
- Grade:
- Grade 1
- Duty Level:
- Heavy Duty
- Keyed Function:
- Non-Keyed
- Fire Rated:
- Yes
- Handing:
- Field Reversible
- Model:
- MA12
- Product Subgroup:
- Mortise Locks and Trim
- Product Type:
- Mortise Locks
- Keyed:
- No
- Lock Type:
- Mortise
- Commercial/Residential:
- Commercial
- Function:
- Dummy
- Electronic:
- No
- Handle Type:
- Lever
- UL Listing Type:
- UL listed 3-hour fire door, A label
- Lock Function:
- Dummy
