Falcon MA18 Double Dummy Trim ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$421.27
$188.50

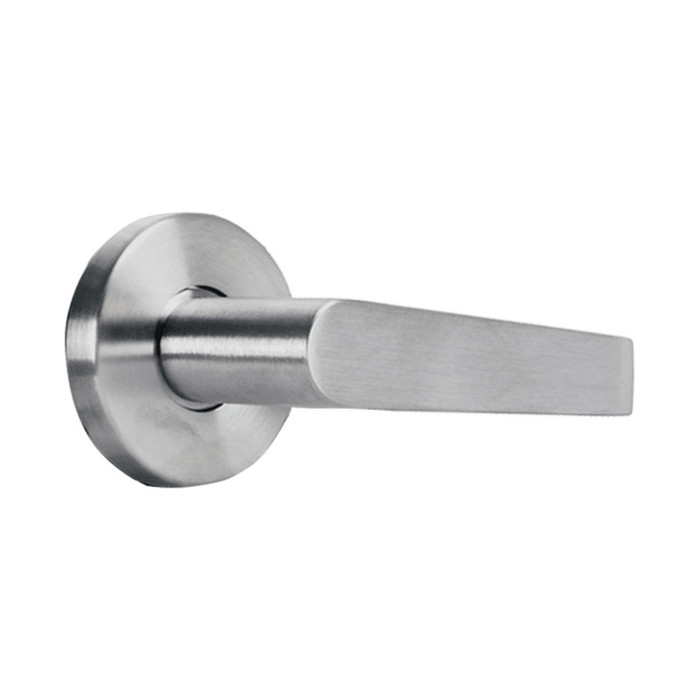

Falcon Falcon MA18 Double Dummy Trim - Grade 1 Non-Keyed Mortise Lock with Lever and Rose Trim FAL-MA18-Lever/Rose-NONKEYED

Falcon MA18 Double Dummy Trim - Grade 1 Non-Keyed Mortise Lock with Lever and Rose Trim

(No reviews yet) Write a Review

Model: MA18 DG 626
Selected Finish is
Selected Lever Style & Trim is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$421.27
$188.50
Adding to cart… The item has been added
This item qualifies for Free Shipping!
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

MA101 PASSAGE/CLOSET LOCKSET (ANSI F01)

  • Non-Keyed Function
  • Latch bolt operated by knob/lever from either side at all times.
  • Inside knob/lever always free for immediate egress.



FALCON MA SERIES OVERVIEW

The Falcon MA Series mortise locks are tough, stylish, and offer excellent value. They deliver heavy-duty Grade 1 performance at an attractive price point and incorporate robust components and sturdy design while offering stylish designs and many finish options.

They're well-suited for any office, educational facility, hospital, or other commercial settings.

The MA series is one of Falcon's toughest and most dependable locks and are designed to handle high-traffic, high-abuse environments.  A wide variety of trim styles and finish options makes the MA series easy to match to existing or new design environments. For keyed models/functions, cylinders offered include the Small Format Interchangeable Core (SFIC) cylinders that can be removed quickly for easy, fast re-keying in high turnover environments.

ZenSupply carries one of the most comprehensive offering of Falcon MA Series locks. If we don't list it or can't build it from parts in inventory, it's unlikely to be found anywhere else.



FEATURES & BENEFITS

Security

  • Forged escutcheons for added strength
  • UL listed and certified Operational Grade 1 and Security Grade
  • Cold-formed steel, zinc plated with dichromate for corrosion resistance



Compatibility

  • Conventional cylinders or interchangeable core (IC) keying compatible with SFIC products from Falcon or other manufacturers
  • Lever and knob trim packages are available for many applications
  • Wide variety of levers and knobs, functions and finishes



Convenience

  • Ability to easily re-hand the lock in the field
  • Flexible trim and finish styles to match any design
  • 2-piece anti-friction stainless steel, field reversible latch bolt



For more specifications and certifications, view the Falcon Locks Catalog.

  • ANSI/BHMA: meets ANSI/BHMA 156.13, Series 1000
  • UL: 3-hour A label
  • All knobs and levers are available with abrasive coating to identify entrances to hazardous areas to the handicapped
  • Locksets and latch sets are available with lead-wrapping for use on X-ray room doors (or similar situations)
  • Both knob and lever trim packages are available to allow complete replacement of inner and outer trim on any lock function
  • Packages include inside and outside trim, spindle and mounting screws. Please see the current price book for more details
  • Manufactured from heavy gauge brass or stainless steel
  • Meets ANSI Standard A115.1 for frame preparation
  • Strikes are available with various lip lengths
  • Standard thumbturn-threaded cylinders for dead bolt operation may be used in lieu of surface-mounted thumbturns
  • Furnished with A09894-1 cam
  • Available in length indicated and all MA Series finishes



DOWNLOADS & RESOURCES



Factory Standard/Default Product Specifications

Cylinder and keying related items apply to keyed functions only.

ANSI/BHMA: Certified ANSI/BHMA 156.13, Series 1000, Grade 1.
UL: Listed 3-hour fire door, A label.
Functions: 26 mechanical and 2 electrified (12 or 24 VDC) commercial functions available.
Finishes: 9 options available.
Door thickness: Standard offering only accepts door thicknesses of 1-3⁄4" to 1-7⁄8". If door thickness is between 1-7⁄8" and 2-1⁄2", please specify door thickness in the customer notes at checkout. *Additional charge for non-standard door thickness.
Backset: 2-3⁄4" only.
Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
Hubs: Hardened steel.
Handing: Right hand is standard; left hand optional. Reversible in the field.
Cylinders: Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. Pinning in 6 chambers available (at no cost) when specified. Optional 7-pin conventional and 6- or 7-pin Small Format Interchangeable Core (SFIC) cylinders. Mortise and cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard. Hotel function cylinders available. For details, see price book. SFIC cylinder information on page 8.
Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on SFIC cylinders. Additional options: Falcon, Schlage and many Best and Arrow keyways.
Bind resistant trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
Latch bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3⁄4" projection.
Dead bolt: 1" throw, stainless steel with two 3⁄16" diameter hardened steel, free-turning, saw-resistant roller.
Faceplates: (armored front) 1 1⁄4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
Indicator options: Occupied/Vacant or Locked/Unlocked.



Levers, knobs, roses, and escutcheons

  • Cast or forged levers: Avalon, Dane, Quantum, Boardwalk, Broadway, Latitude, Longitude
  • Wrought brass or stainless levers/knobs: Sutro, Hana
  • Wrought rose and forged or wrought escutcheons are standard
  • Specify lever/knob style and rose/escutcheon style using the product configurator



Abrasive strip levers
Avalon, Dane, Quantum, and Sutro levers are available with an abrasive strip along the inside length of the lever to identify entrances that may be to areas hazardous to the handicapped. To order, please specify your preference in the customer message/notes at checkout or contact our helpful sales reps. Not available on 613 finish as abrasive strip will not hold. Knurling option is also available for these same levers. Additional charges apply.

Finishes
Levers: available in BHMA 605, 606, 613, 619, 622, 625, 626, 630, and 643e.
Knobs: available in BHMA 619, 622, and 643e. See page 6 for finish color and comparative chart. Mortise and rim cylinder Housings: available in 605, 606, 613, 619, 622, 626, 629, 630, and 643e.



Table of MA Series Functions/Models

Catalog Number ANSI Function Name Keyed Description
Single Cylinder Functions
MA451 F15 Hotel guest lock Single Cylinder Function Latch bolt operated by key from outside or by operating inside knob/lever. Outside knob/lever is always inoperative. Dead bolt projected by turn from inside and all keys except emergency key are shut out. Operating inside knob/lever retracts both bolts. Auxiliary dead latch. Inside knob/lever always free for immediate egress.
MA521 F04 Entry/office lock with button lockout Single Cylinder Function Latch bolt operated by knob/lever from either side except when outside knob/lever is made inoperative by buttons in face. When outside knob/ lever is locked, latch bolt is retracted by key from outside or by operating inside knob/lever. Auxiliary dead latch. Outside knob/lever is unlocked by button on face. Inside knob/lever always free for immediate egress.
MA531 F12/F20 Apartment corridor lock Single Cylinder Function Latch bolt operated by knob/lever from either side, except when outside knob/lever is made inoperative by buttons in face. Dead bolt operated by key outside or turn inside. Key outside operates both bolts. Operating inside knob/lever retracts both bolts and outside remains locked. Latch bolt is deadlocked when outside knob/lever is made inoperative or when the dead bolt is projected. When dead bolt is retracted, knob/lever is unlocked by buttons in face. Inside knob/lever always free for immediate egress.
MA541 F21 Entry/office lock Single Cylinder Function Latch bolt operated by knob/lever from either side. Dead bolt operated by key from outside or turn from inside.
MA551 F06 Holdback lock Single Cylinder Function Latch bolt operated by lever from either side except when outside lever is locked from outside by key. Latch bolt can be locked in a retracted position by key. When outside lever is locked, latch bolt is retracted by key from outside or by operating inside lever unless latch bolt has been locked in a retracted position. Auxiliary dead latch. To activate the Holdback Function – from the unlocked position rotate the outside lever/knob to retract the latchbolt. Rotate key 360°. Release lever/knob. To release Holdback Function, rotate key 360° clockwise. Inside knob/lever always free for immediate egress. Note: Chassis is handed.
MA561 F05 Classroom lock Single Cylinder Function Latch bolt operated by knob/lever from either side except when outside knob/lever is locked from outside by key. When outside knob/lever is locked, latch bolt is retracted by key from outside, or by operating inside knob/lever. Auxiliary dead latch deadlocks latchbolt when door is closed. Inside knob/lever always free for immediate exit.
MA571 F13 Dormitory or exit lock Single Cylinder Function Latch bolt operated by knob/lever from either side. Dead bolt projected by key from outside and turn from inside. Operating inside knob/lever retracts both bolts and unlocks outside. Inside knob/lever always free for immediate egress.
MA581 F07 Storeroom lock Single Cylinder Function Latch bolt operated by key from outside or by operating inside knob/lever. Outside knob/lever is always inoperative. Auxiliary dead latch. Inside knob/ lever always free for immediate egress.
MA621 F08/F10 Apartment corridor lock with button lockout Single Cylinder Function Latch bolt is operated by knob/lever from either side, except when outside knob/lever is made inoperative by buttons in face. Dead bolt is operated by turn inside. Key outside operates both bolts. Outside knob/lever is unlocked by button on face. Inside knob/lever always free for immediate egress.
MA641 N/A Dormitory lock Single Cylinder Function Latch bolt by knob/lever inside and key outside. Inside knob/lever free. Outside knob/lever rigid. Deadbolt by key outside or T-turn inside. Rotating inside knob/lever retracts both bolts. Deadlocking latch. Inside knob/lever always free for immediate egress.
MA851 N/A Storeroom-Fail Safe EL Single Cylinder Function MA851-12/MA851-24 Latch bolt operated by knob/lever from either side except when outside knob/lever is electrically locked. When outside knob/lever is locked, latch bolt retracted by key in outside cylinder. Deadlocking latch. Specify 12 or 24V DC. Inside knob/lever is always free for immediate egress. 12V is default.
MA851-RX N/A Storeroom-Fail Safe EL w/ Request to Exit (RX) Single Cylinder Function MA851-12RX/MA851-24RX Latch bolt operated by knob/lever from either side except when outside knob/lever is electrically locked. When outside knob/lever is locked, latch bolt retracted by key in outside cylinder. RX monitors lever rotation from both sides. Compatible with normally open systems. Deadlocking latch. Specify 12 or 24V DC. Inside knob/lever is always free for immediate egress.  12V is default.
MA881 N/A Storeroom-Fail Secure EU Single Cylinder Function MA881-12/MA881-24 Latchbolt operated by knob/lever from inside except when outside knob/lever is electrically unlocked, then knob/lever from either side. When locked, key in outside cylinder retracts latch bolt. Specify 12 or 24V DC. Deadlocking latch. Inside knob/lever is always free for immediate egress. 12V is default.
MA881-RX N/A Storeroom-Fail Secure EU w/ Request to Exit (RX) Single Cylinder Function MA881-12RX/MA881-24RX Latchbolt operated by knob/lever from inside except when outside knob/lever is electrically unlocked, then knob/lever from either side. When locked, key in outside cylinder retracts latch bolt. RX monitors lever rotation from both sides. Compatible with normally open systems. Deadlocking latch. Specify 12 or 24V DC Inside knob/lever is always free for immediate egress. 12V is default.

Double Cylinder Functions
MA371 F14 Store door lock Double Cylinder Function Latch bolt operated by knob/lever from either side. Dead bolt operated by key from either side.
MA381 F09 Apartment exit lock Double Cylinder Function Latch bolt operated by knob/lever from either side, except when outside knob/lever is locked by key from inside. When outside knob/lever is locked, latch bolt is retracted by key from outside or by operating inside lever. Auxiliary dead latch. Inside knob/lever always free for immediate egress.
MA411 F30 Asylum lock Double Cylinder Function Latch bolt operated by key from either side. Both knobs/levers always inoperative. Auxiliary dead latch.
MA431 F34 Security lock with deadbolt Double Cylinder Function Latch bolt operated by knob/lever from either side except when outside knob/lever is locked from inside or outside by key. Dead bolt retracted by key from inside or outside. Operating inside knob/lever retracts both bolts and unlocks outside. Latch bolt dead locked when dead bolt is thrown. Inside knob/lever always free for immediate egress.
MA441 F32 Classroom security lock Double Cylinder Function Latch bolt operated by knob/lever from either side except when outside knob/lever is locked from inside or outside by key. When outside knob/lever is locked, latch bolt is retracted by key from inside or outside or by operating inside knob/lever. Auxiliary dead latch. Inside knob/lever always free for immediate egress.

Non-keyed functions
MA101 F01 Passage/closet latchset Non-Keyed Function Latch bolt operated by knob/lever from either side at all times. Inside knob/lever always free for immediate egress.
MA12 N/A Single dummy Non-Keyed Function Single dummy trim
MA161 F31 Connecting room/exit lock Non-Keyed Function Latch bolt operated by knob/lever from inside. No trim outside. Auxiliary dead latch.
MA18 N/A Double dummy Non-Keyed Function Double dummy trim
MA301 F02 Privacy lock Non-Keyed Function Latch bolt operated by knob/lever from either side. Dead bolt operated by turn from inside and by emergency release from outside.
MA311 F19 Privacy, bedroom or bath lock with inside lever release Non-Keyed Function Latch bolt operated by knob/lever from either side. Dead bolt operated by turn from inside and emergency release from outside. Operating inside knob/lever retracts both bolts. Inside knob/lever always free for immediate egress.
MA321 F22 Privacy lock with no entry lockout Non-Keyed Function Latch bolt operated by knob/lever from either side except when outside knob/lever is locked by inside turn. Operating inside knob/lever, closing door or operating outside emergency release unlocks outside knob/lever. Inside knob/lever always free for immediate egress.

Deadlocks - Escutcheon Only (No Lever Trim)
MA911 F29 Classroom dead lock Single Cylinder Function Key from outside operates dead bolt. Turn from inside retracts but does not project dead bolt.
MA921 F18 Outside only deadlock Single Cylinder Function Dead bolt operated by key from outside only.
MA931 F16 Two sided deadlock Single Cylinder Function Dead bolt operated by key from either side.
MA941 F17 Deadlock with inside turn Single Cylinder Function Dead bolt operated by key from outside and by turn from inside.

Manufacturer Resources

Product Specs

Category:
Mechanical Locks
Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
MA Series
Grade:
Grade 1
Duty Level:
Heavy Duty
Keyed Function:
Non-Keyed
Fire Rated:
Yes
Handing:
Field Reversible
Model:
MA18
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Keyed:
No
Lock Type:
Mortise
Commercial/Residential:
Commercial
Function:
Dummy
Electronic:
No
Handle Type:
Lever
UL Listing Type:
UL listed 3-hour fire door, A label
Lock Function:
Dummy
Product Attribute:
Mortise Locks
